Installation Procedure

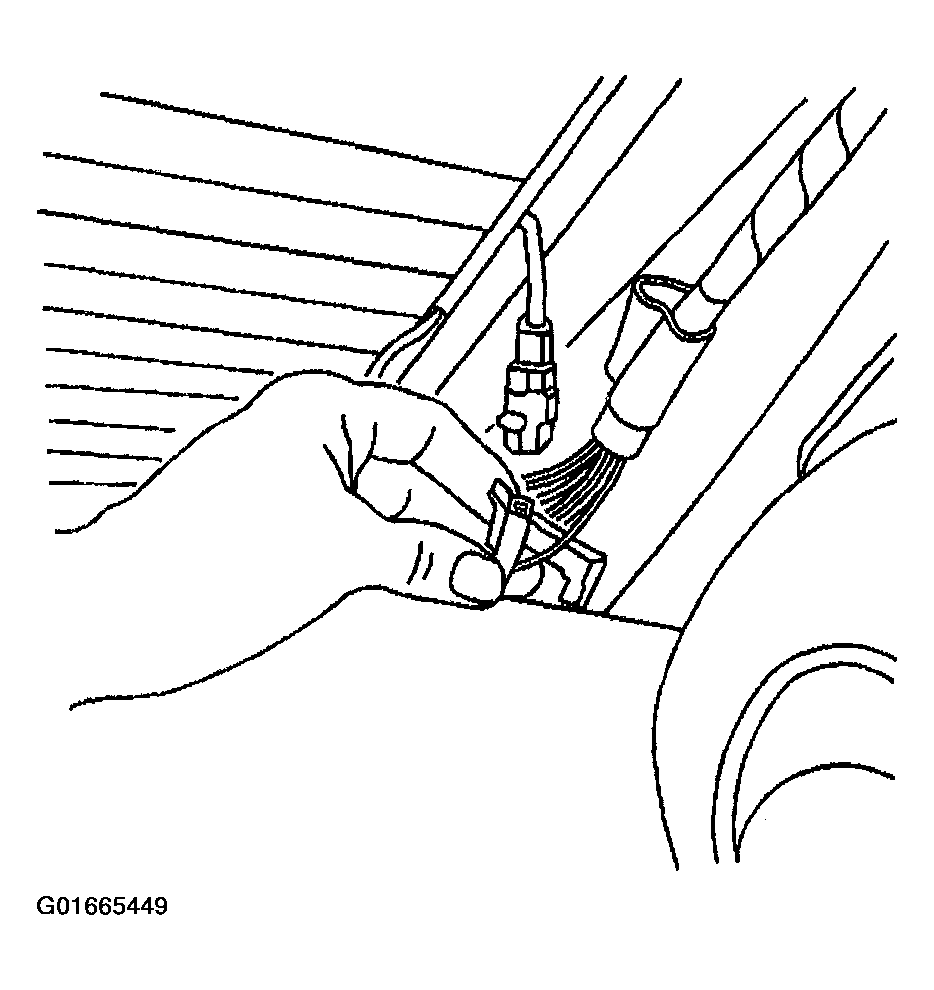

Fig 1: Connecting Rear Window Electrical Connectors
G01665449Courtesy of GENERAL MOTORS CORP.
  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Connect the rear window electrical connectors.
  3. Install the headliner. Refer to HEADLINER REPLACEMENT .
  4. Install the rear quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER .
  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  6. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  7. Install the Onstar™ antenna. Refer to COUPLING REPLACEMENT - ANTENNA OUTER or COUPLING REPLACEMENT - ANTENNA INNER .
  8. Close the rear compartment lid.
  9. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
