Installation Procedure

  1. Remove the double layer of masking tape from the body around the entire periphery of the stationary window.
  2. Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  3. Install the windshield garnish moldings (1). Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .
  4. Install the rain sensor. Refer to WINDSHIELD OUTSIDE MOISTURE SENSOR REPLACEMENT .
  5. Install the rearview mirror. Refer to Rearview Mirror Replacement (UE1) .
  6. Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

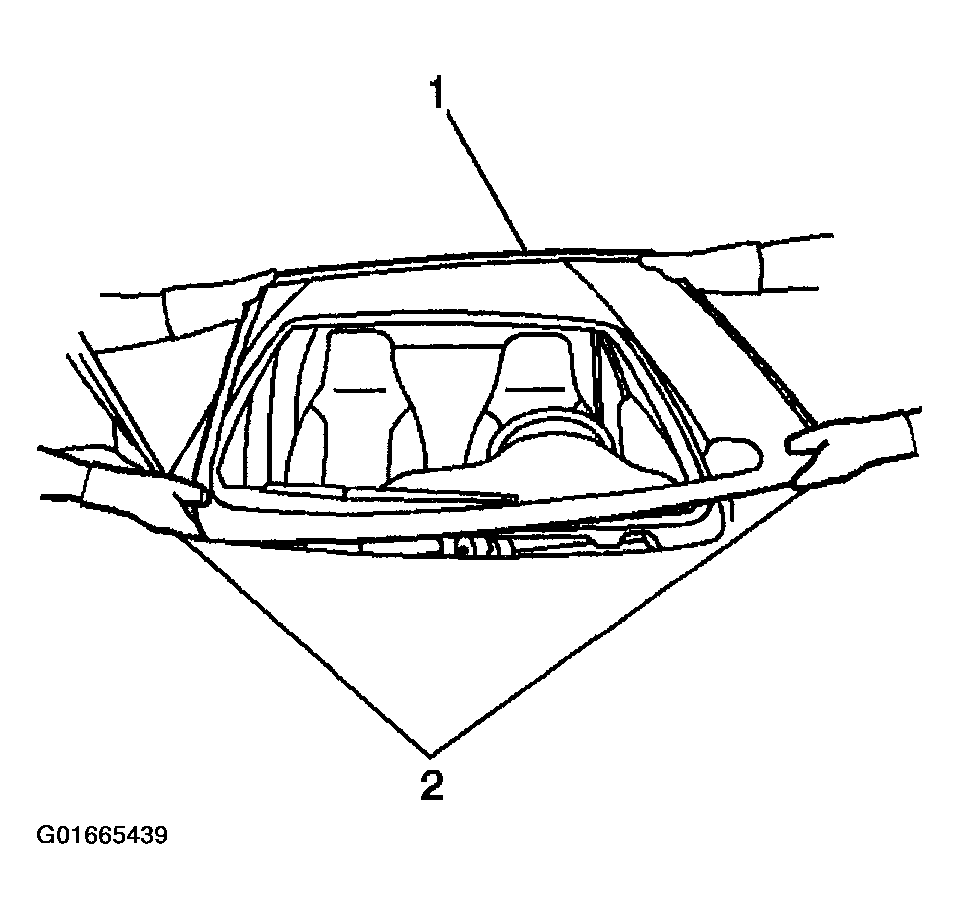

    Fig 1: Identifying Windshield Garnish Moldings
    G01665439Courtesy of GENERAL MOTORS CORP.
  7. Install the windshield wipers arms. Refer to WIPER ARM REPLACEMENT .
  8. Remove the double layer of masking tape from the interior trim.
  9. Close the hood.
