Identifying MAF/IAT Sensor Connector End View

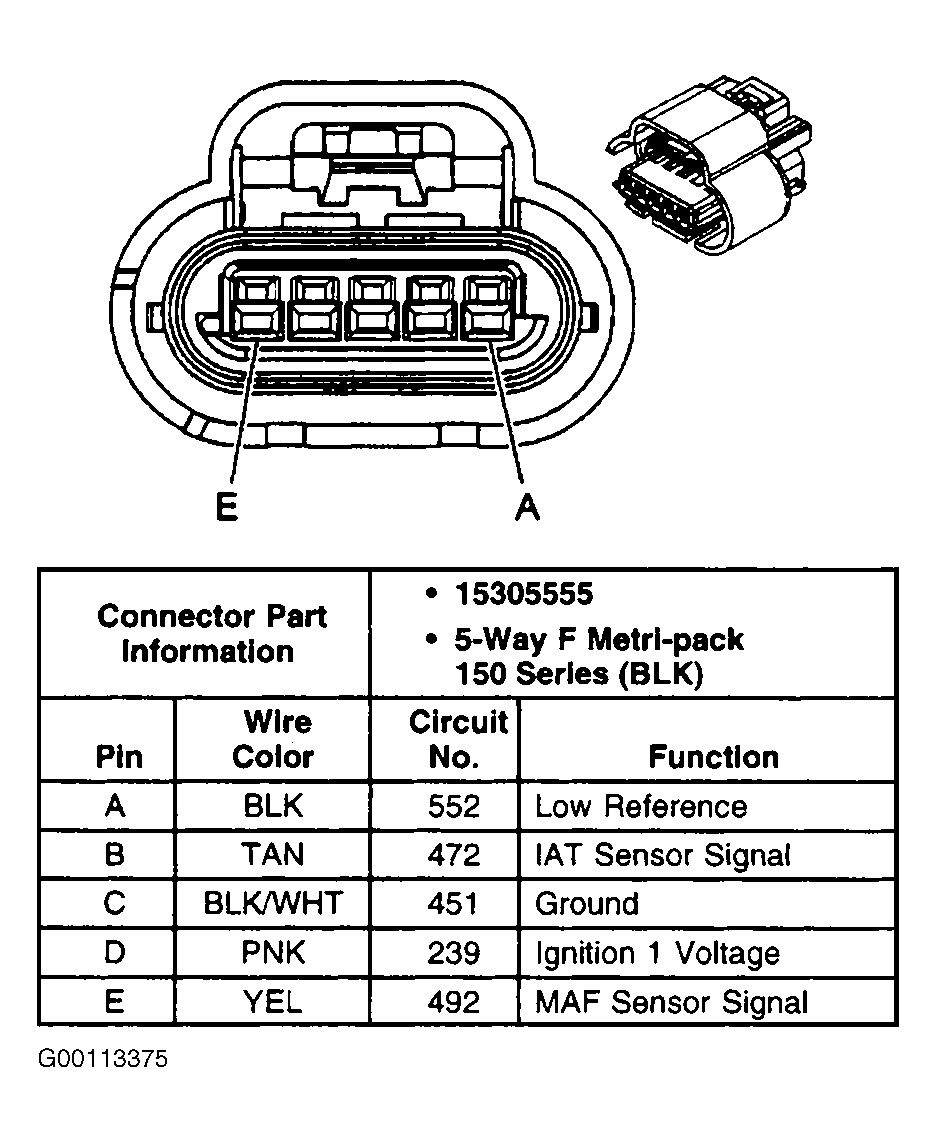

Fig 1: Identifying MAF/IAT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
