Cooling System Component Views
WARNING:
This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

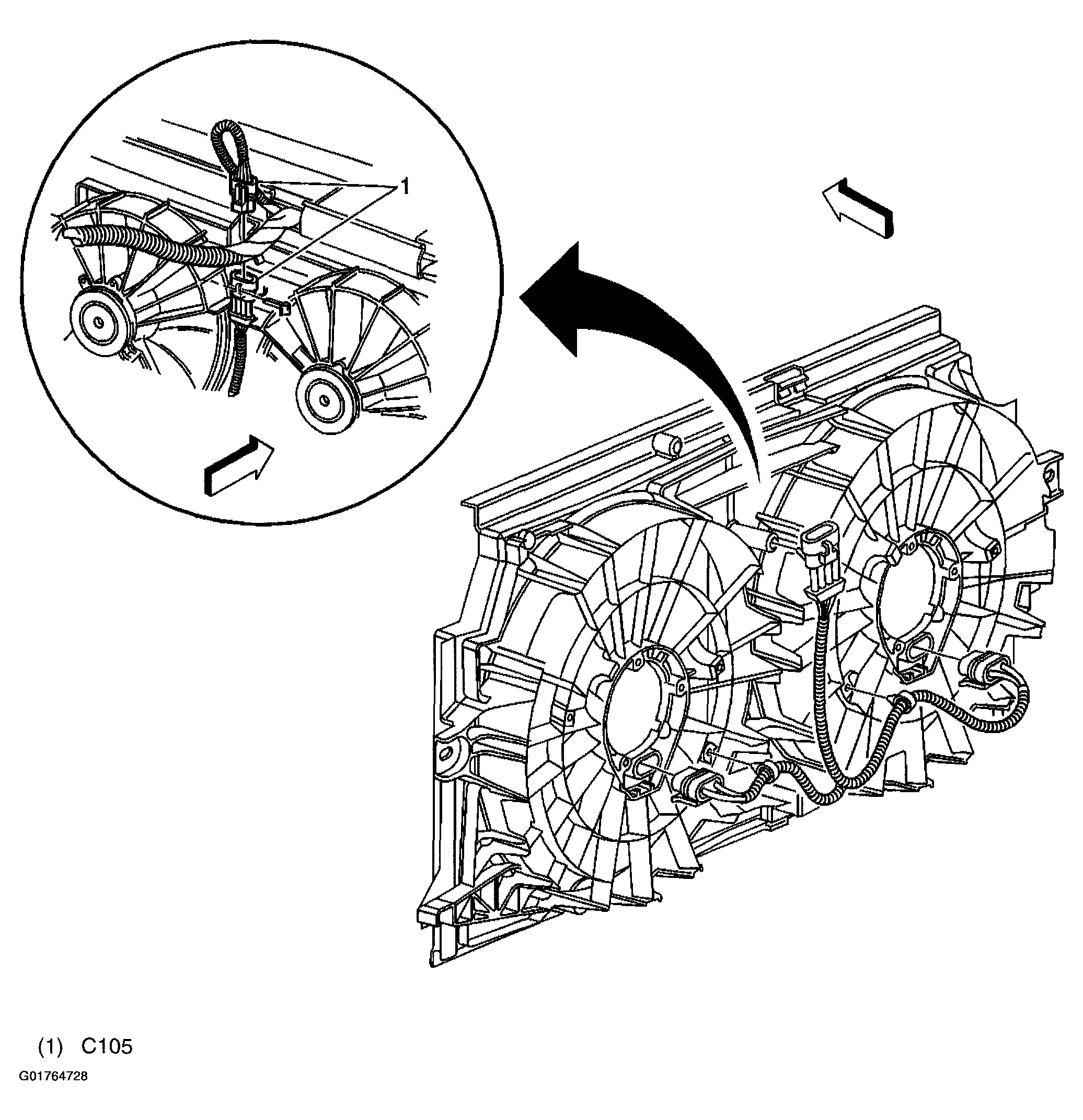

Fig 2: Behind Right Side of Radiator
Courtesy of GENERAL MOTORS CORP.
