Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp switch to the vehicle.
  2. Connect the headlamp switch to the instrument panel cluster trim plate by pushing on the switch in order to engage the retainers on the instrument panel cluster trim plate.
  3. Connect the electrical connector to the headlamp switch.
  4. Install the instrument panel cluster trim plate. TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PAN

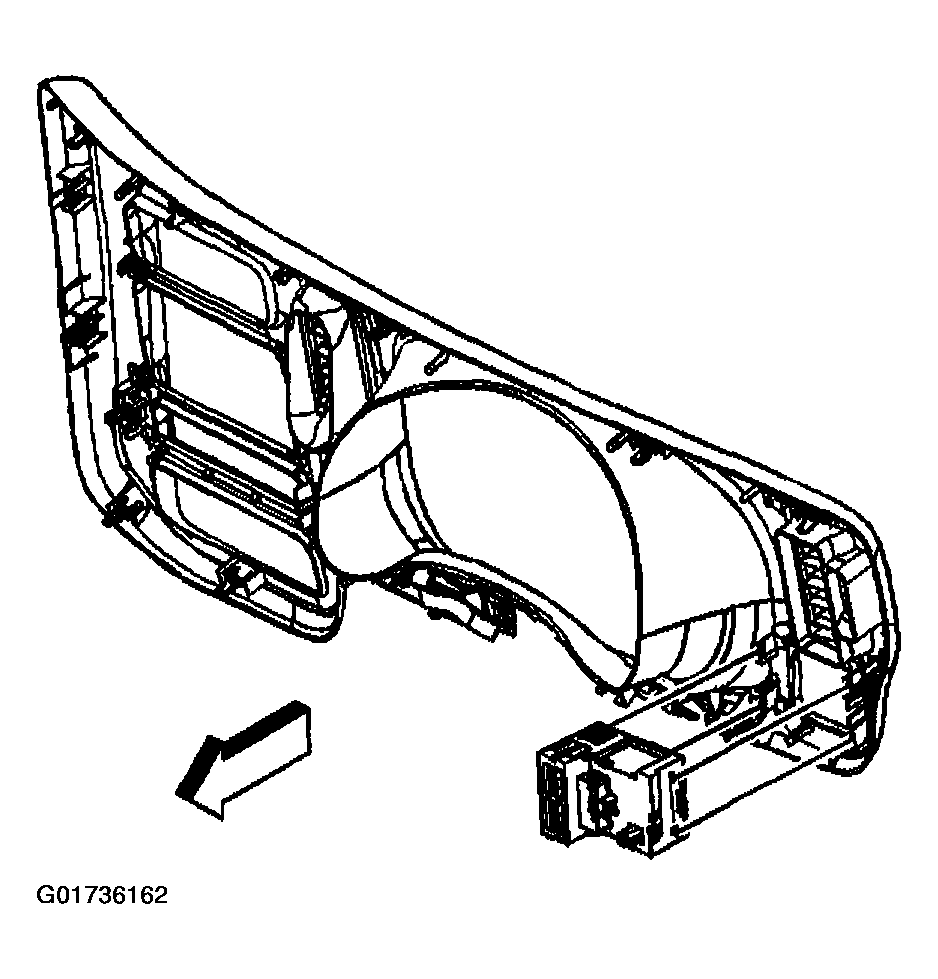

    Fig 1: Installing Headlamp Switch
    G01736162Courtesy of GENERAL MOTORS CORP.
