Cooling System Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

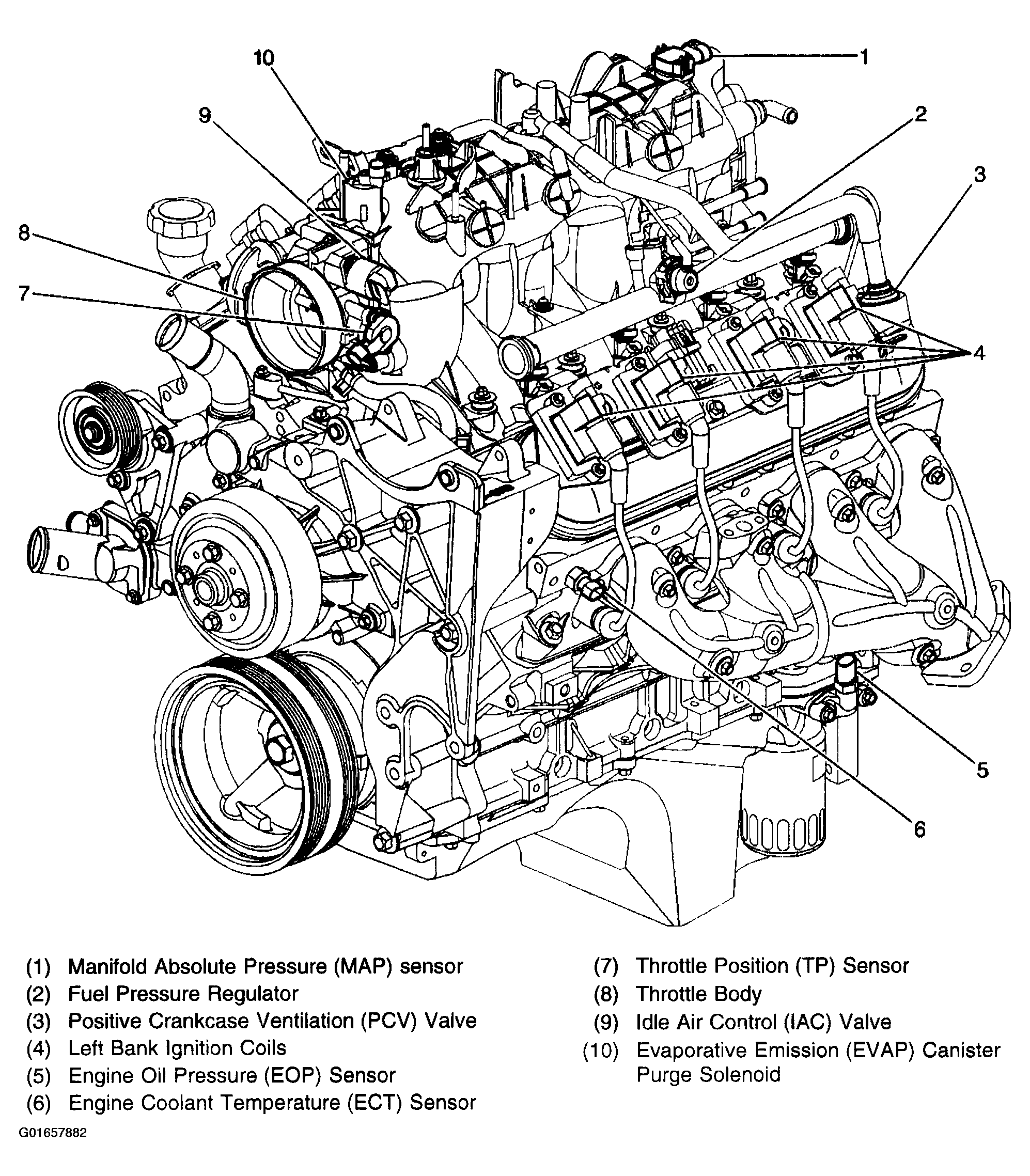

Fig 1: Full Engine View Left Side - 4.8L, 5.3L & 6.0L

Courtesy of GENERAL MOTORS CORP.

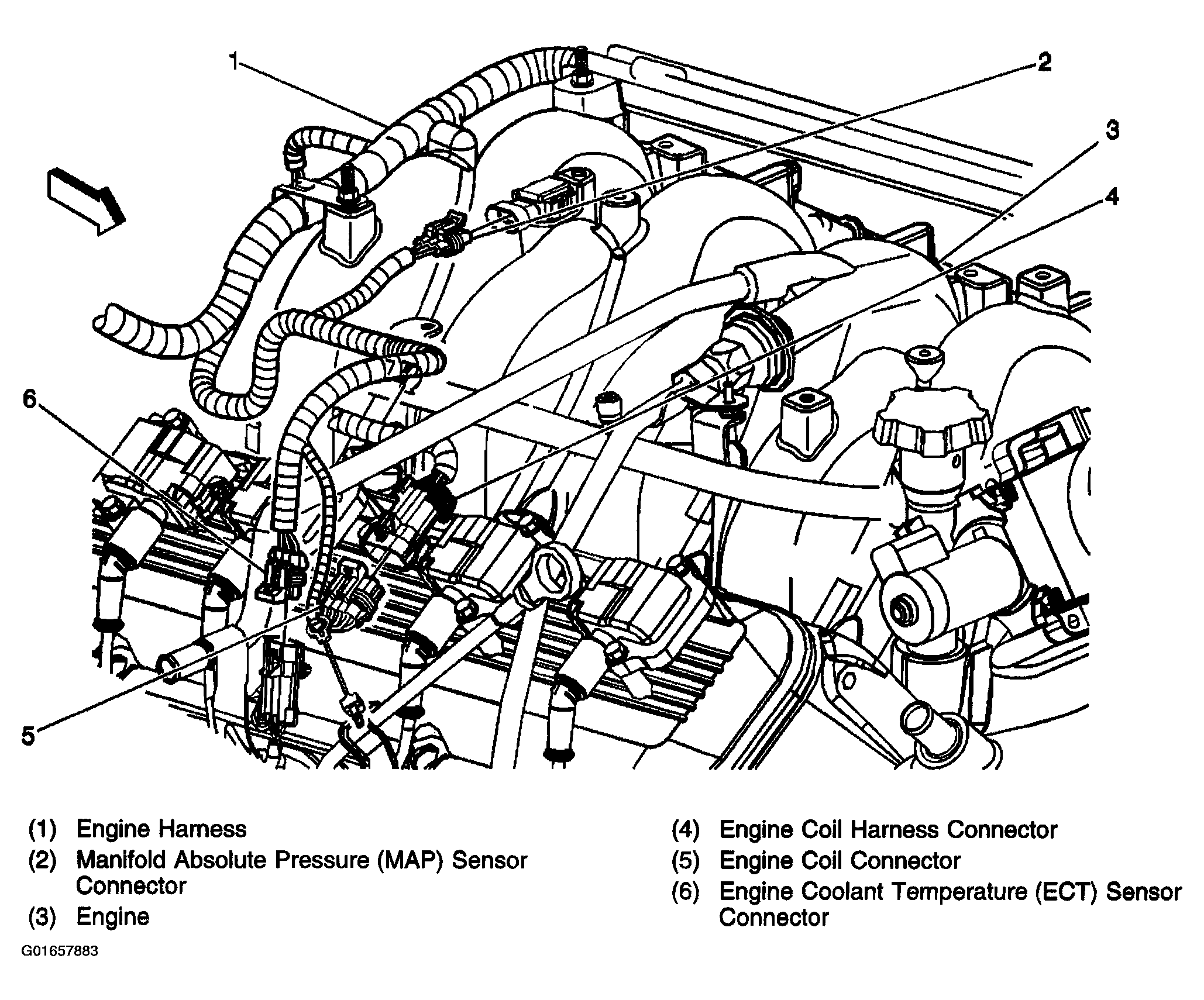

Fig 2: Engine View - Upper Right - 8.1L

Courtesy of GENERAL MOTORS CORP.

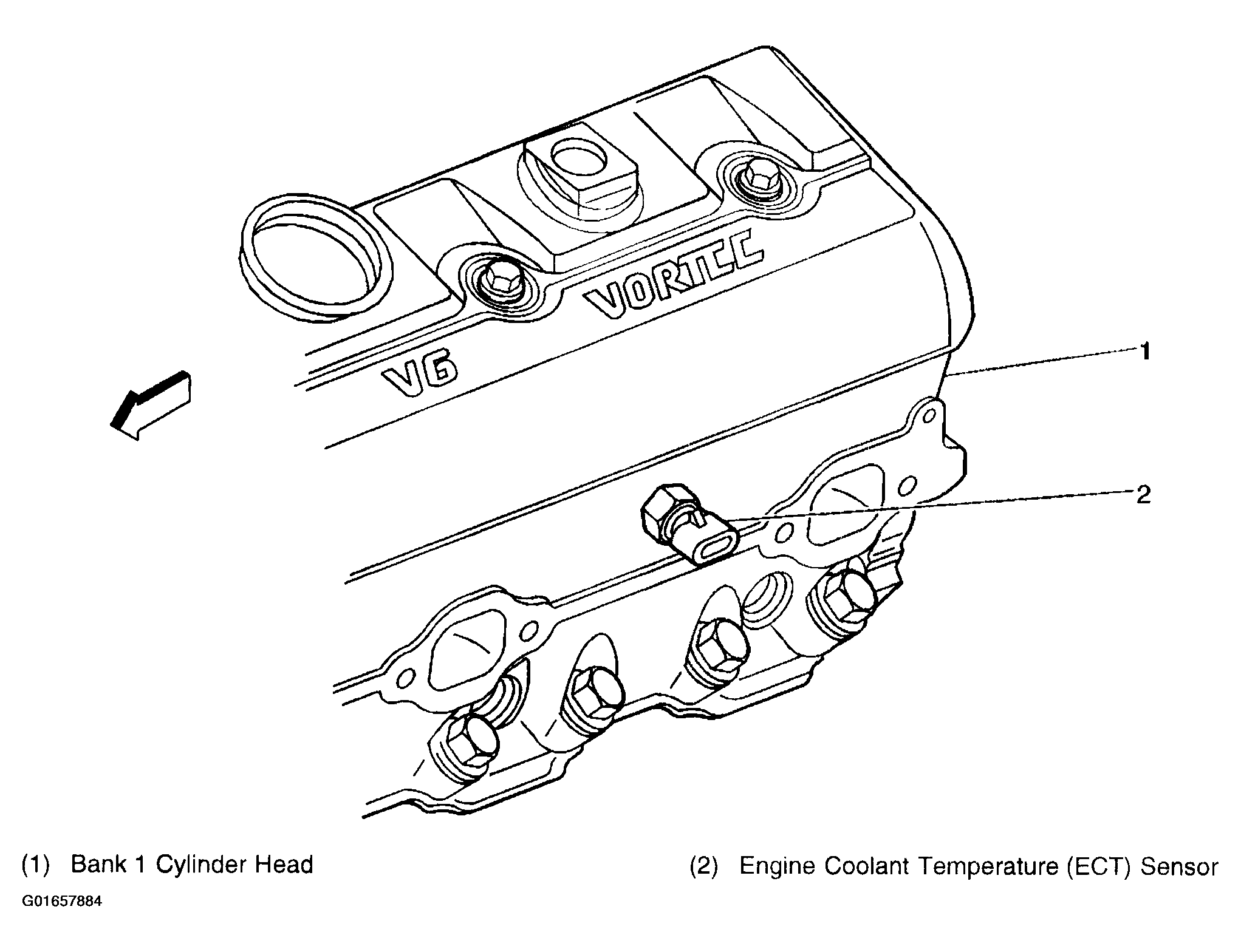

Fig 3: Locating Engine Coolant Temperature (ECT) Sensor - 4.3L

Courtesy of GENERAL MOTORS CORP.
