Power Seat Control Module: Diagrams

Memory Seat Module - C1:

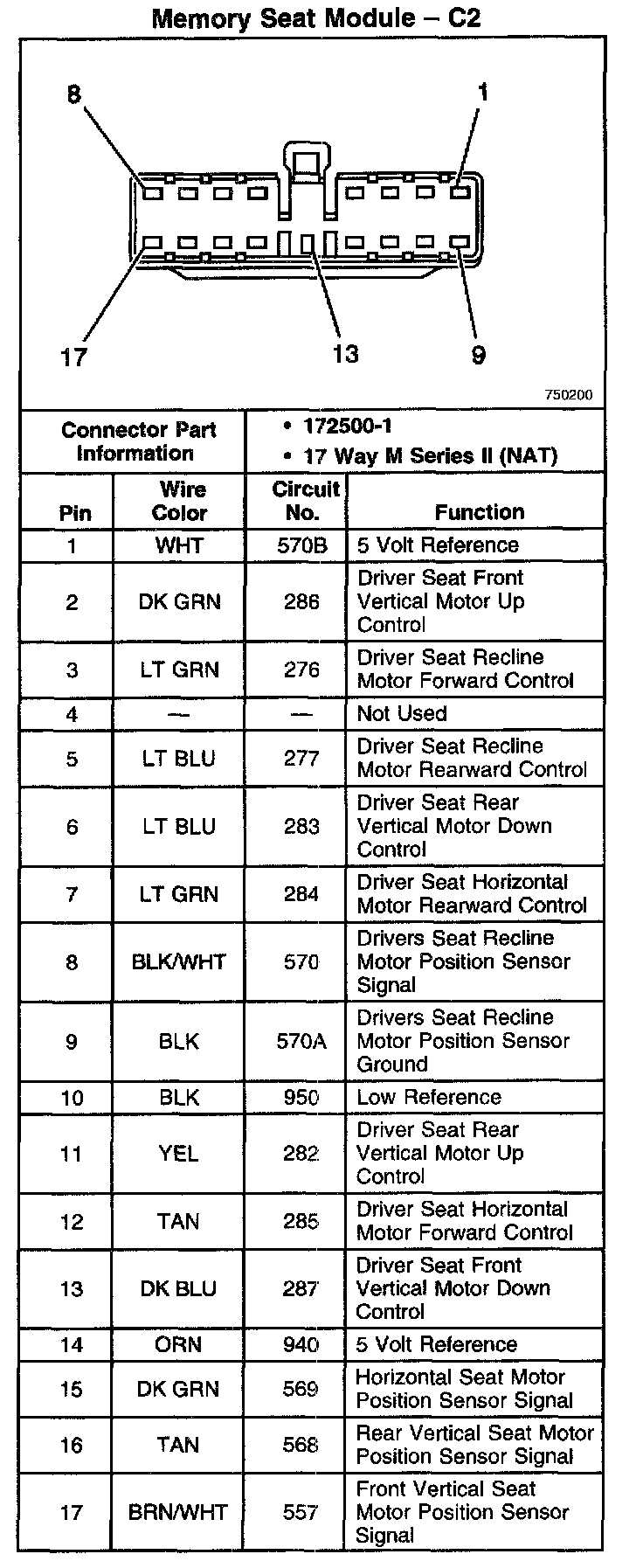

Memory Seat Module - C2:

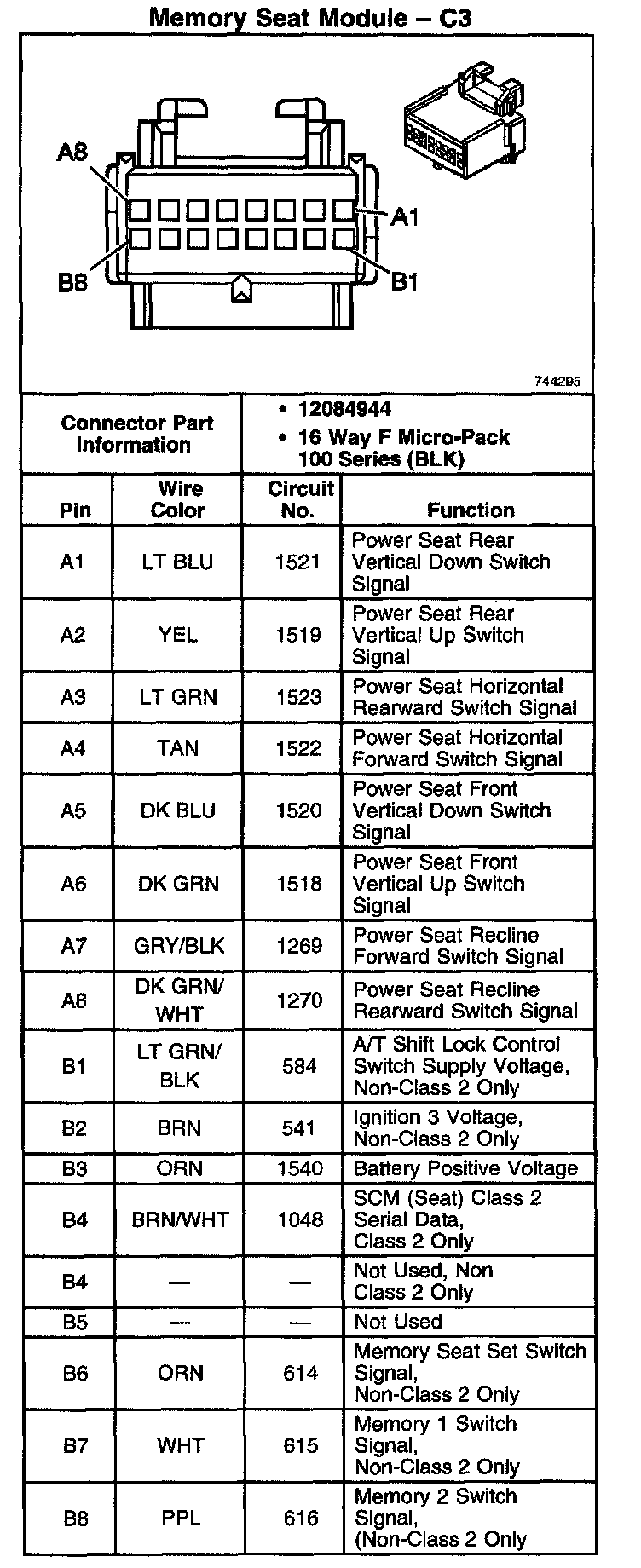

Memory Seat Module - C3:
