Power, Ground and Serial Data
Power, Ground and Serial Data

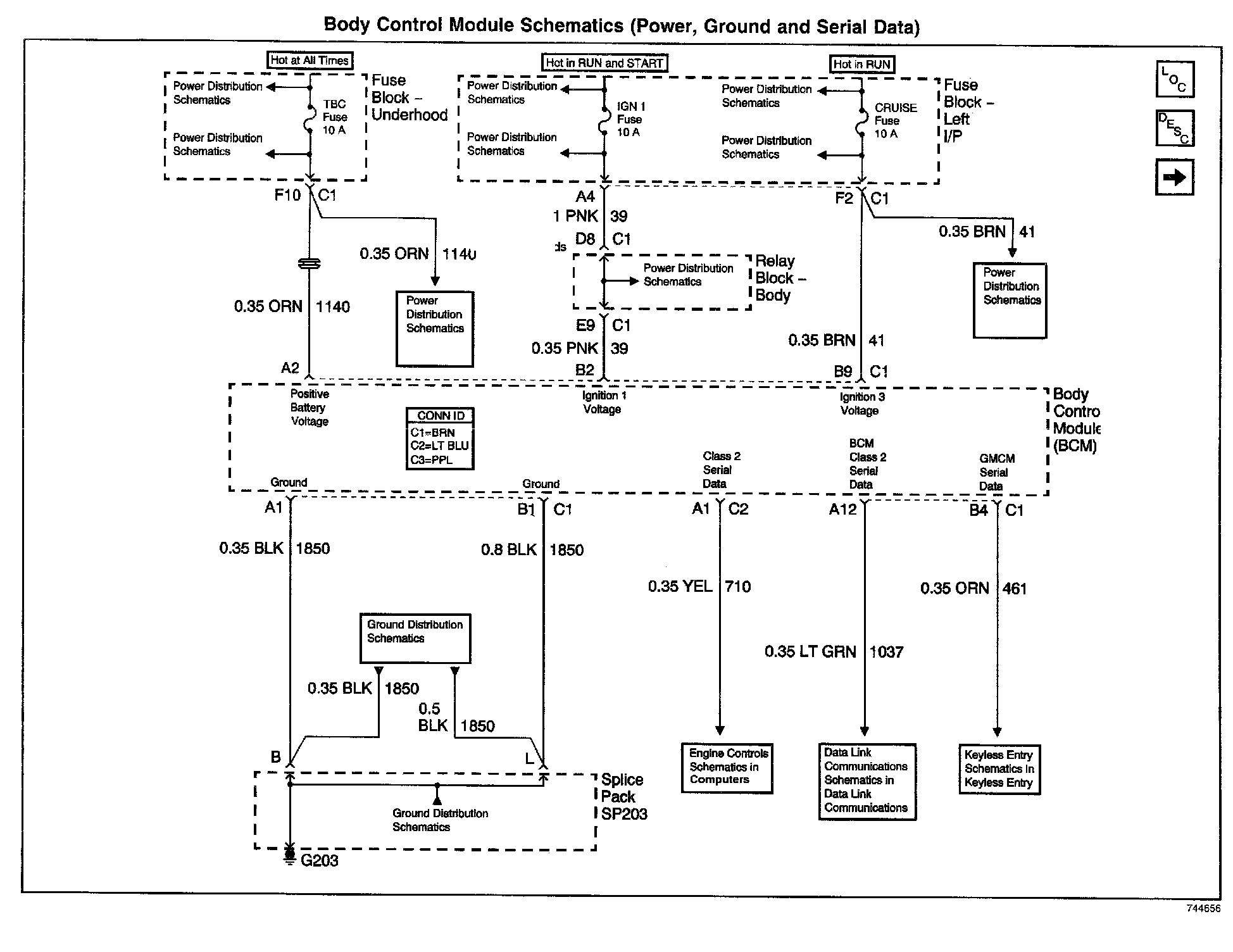

Body Control Module Schematics: Power, Ground And Serial Data:
