C1 (Blue)

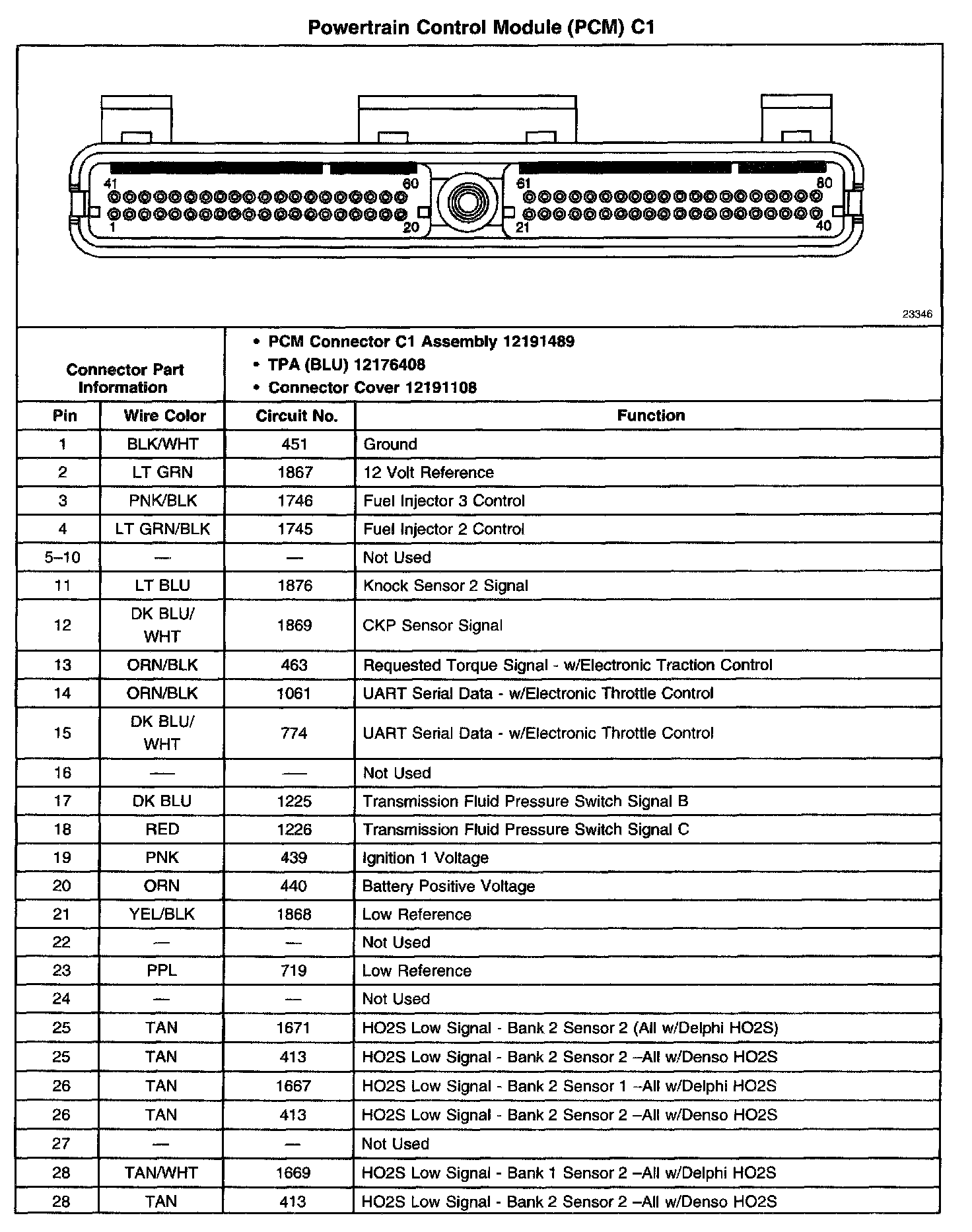

Powertrain Control Module (PCM) C1 Part 1:



Powertrain Control Module (PCM) C1 Part 2:



Powertrain Control Module (PCM) C1 Part 3:
