Interior Lighting Systems References
Interior Lighting Systems References

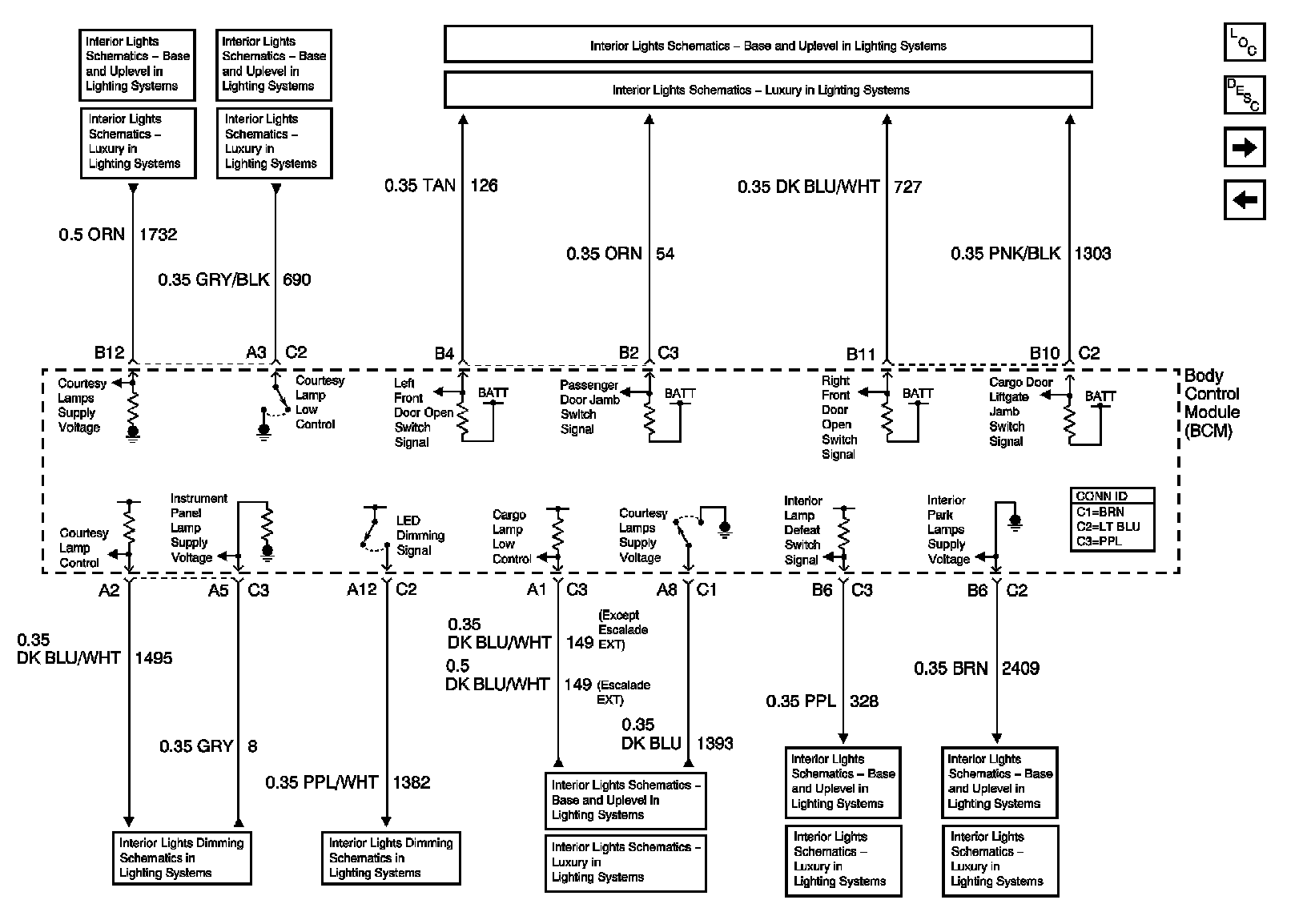

Body Control Module Schematics: Interior Lighting Systems References:
