Installation Procedure
CAUTION:
Refer to FASTENER NOTICE
.

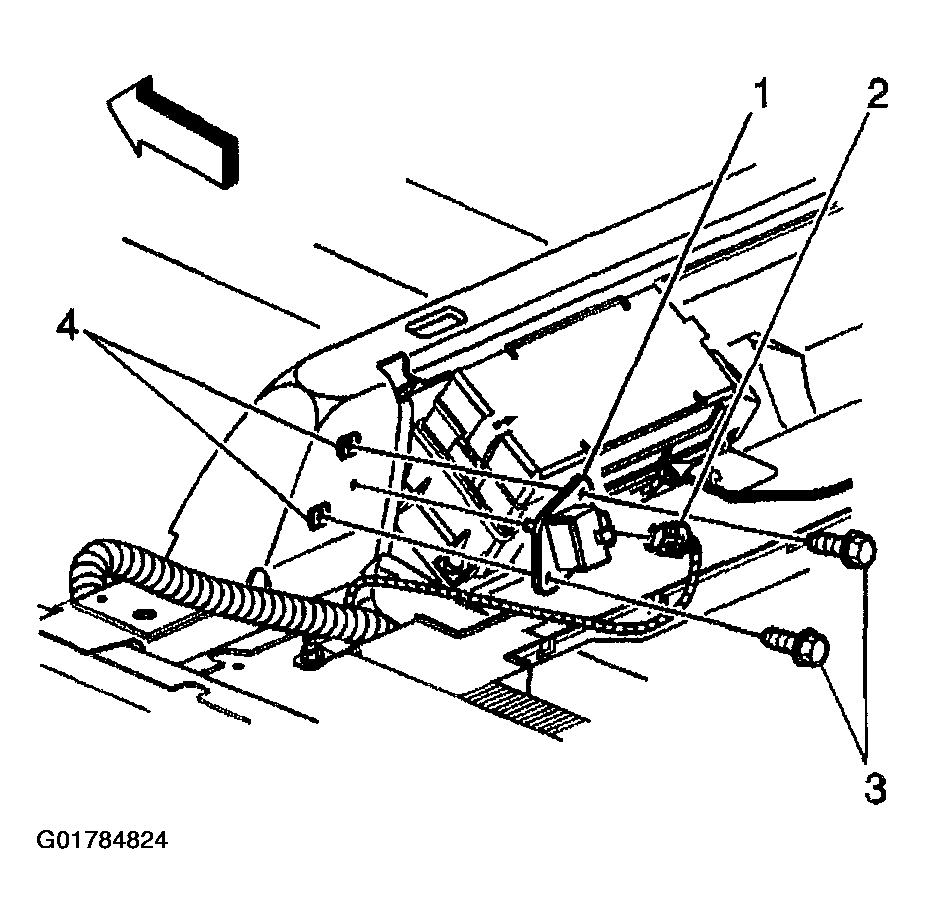

- Install the lateral accelerometer sensor (1) onto the mounting studs.
Tighten
Tighten the 2 lateral accelerometer sensor nuts to 2.4 N.m (21 lb in).
- Connect the lateral accelerometer sensor electrical connector (2).
- Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
- Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
