Theft Deterrent Exciter Module Connector End View

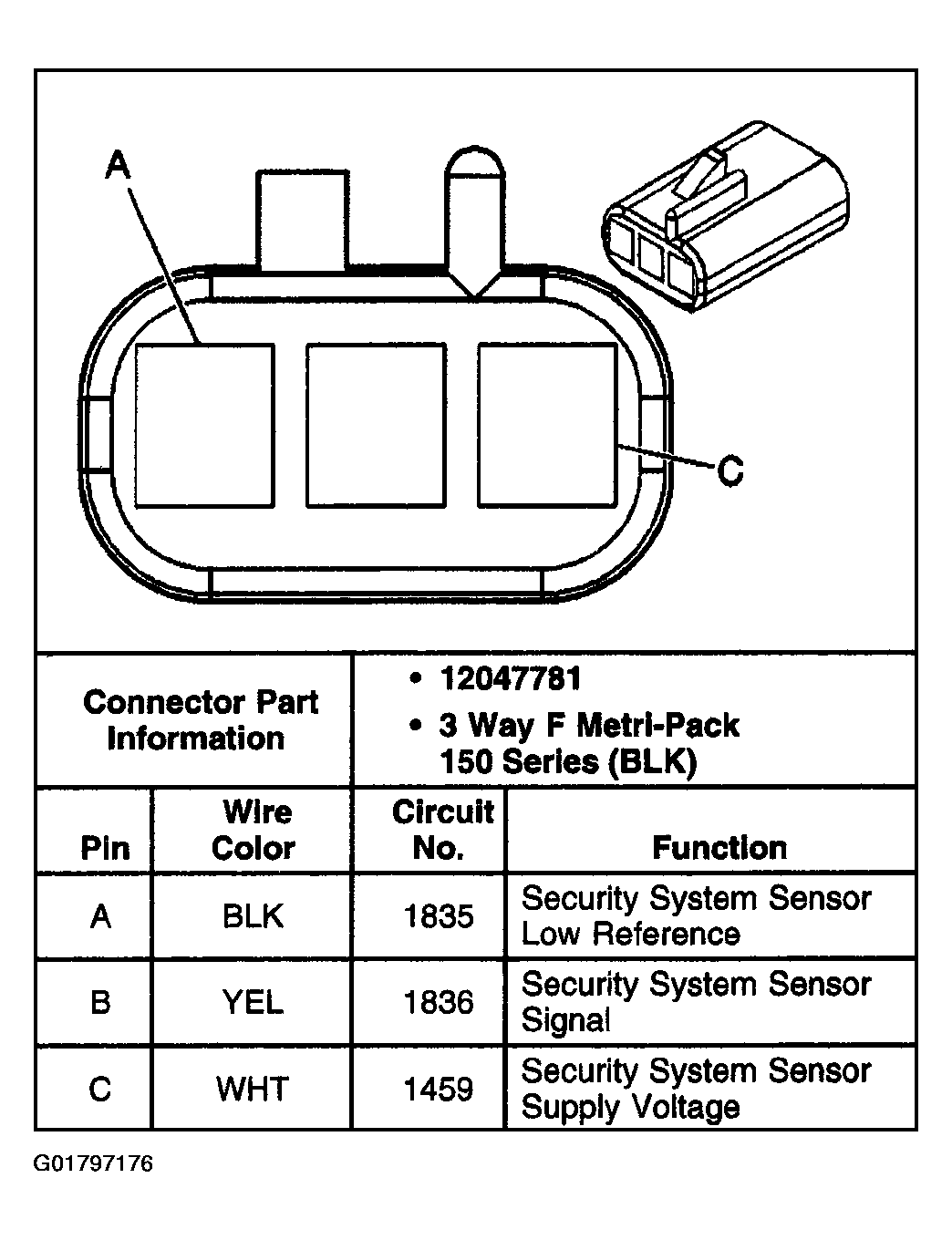

Fig 1: Theft Deterrent Exciter Module
Courtesy of GENERAL MOTORS CORP.
