Installation Procedure

Position the engine ground cable to the engine.

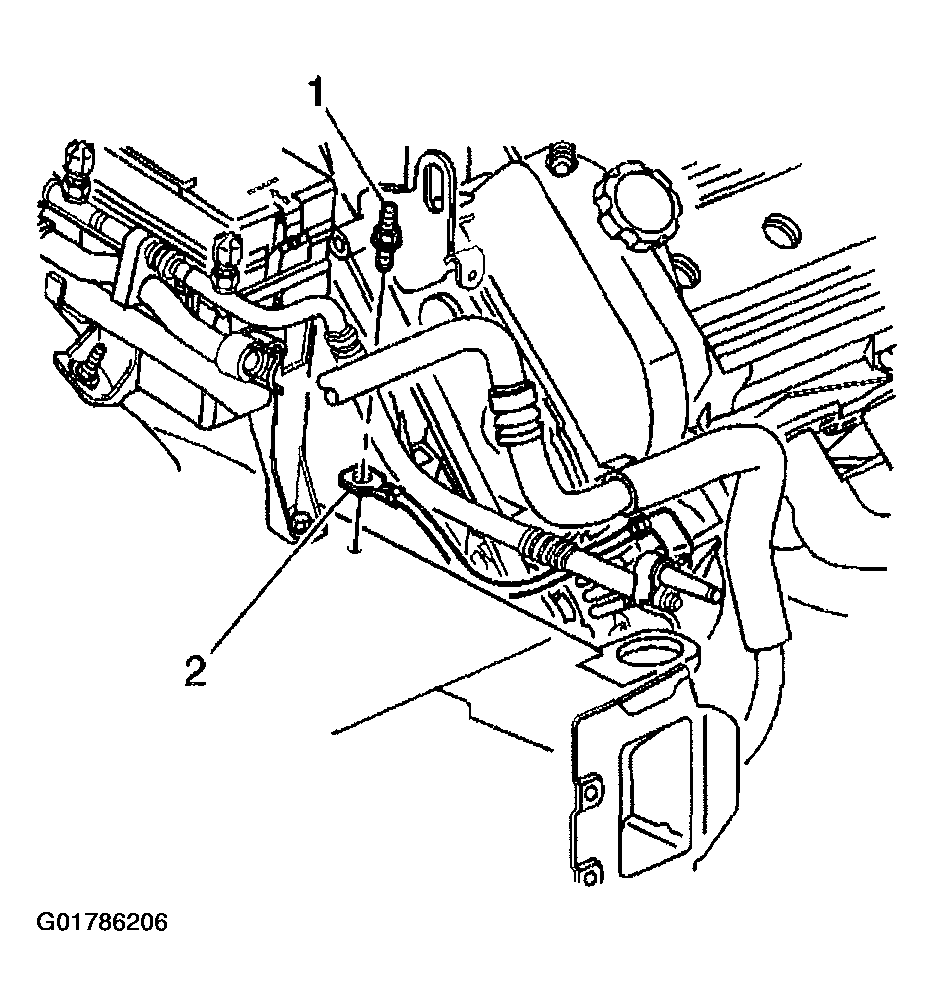

Fig 1: Installing Engine Ground Cable
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolt securing the engine ground cable to the generator.
Tighten

Tighten the generator mounting bolt to 50 N.m (37 lb ft).
Install the bolt (1) securing the engine ground cable (2) to the right side body frame rail.
Tighten

Tighten the engine ground cable bolt to 50 N.m (37 lb ft).
Install the upper filler panel. Refer to FILLER PANEL REPLACEMENT - UPPER .
