Power Seat Control Module: Diagrams

Memory Seat Module (MSM) C1:

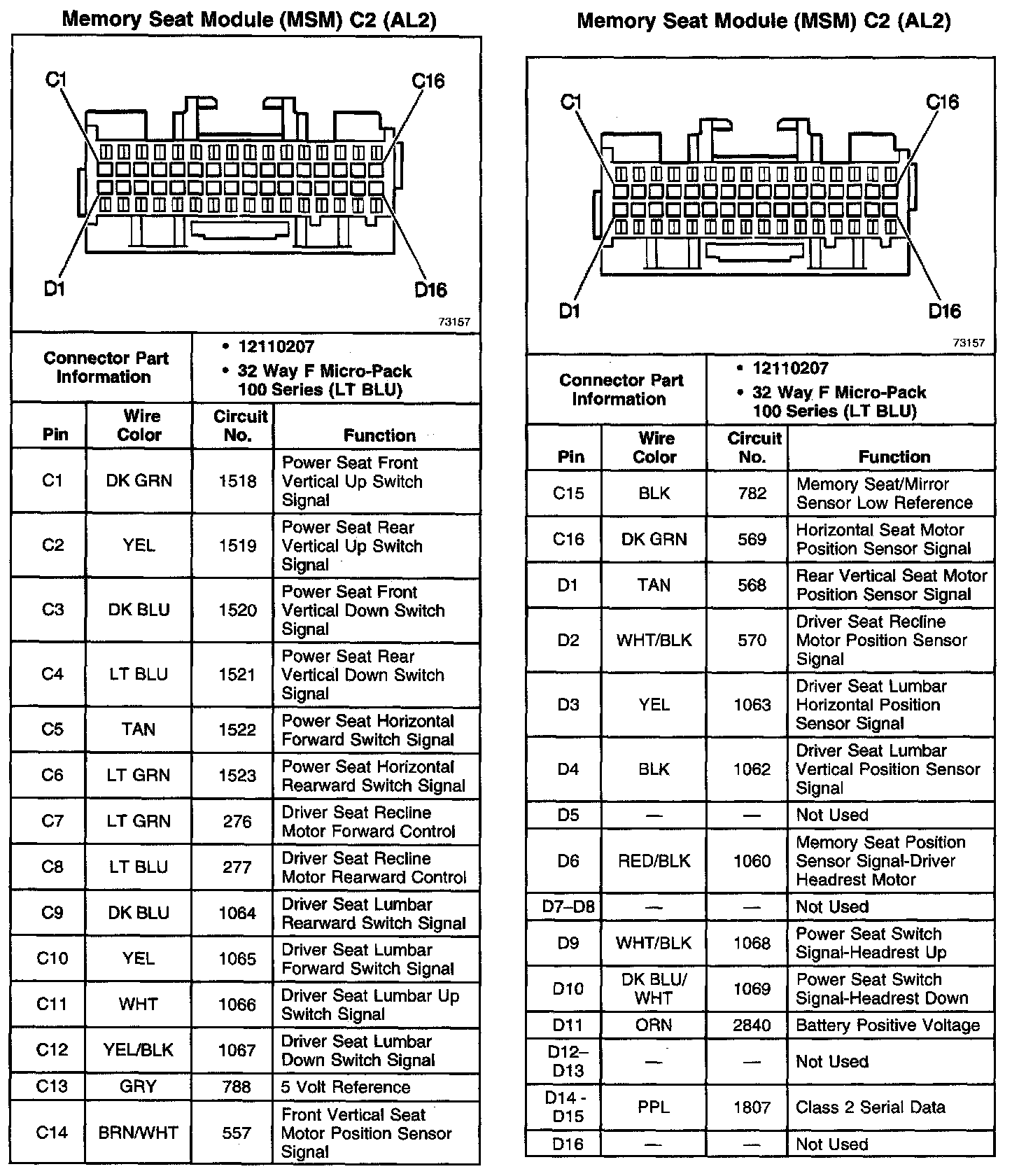

Memory Seat Module (MSM) C2 (AL2):
