Module Power, Ground, Serial Data and MIL

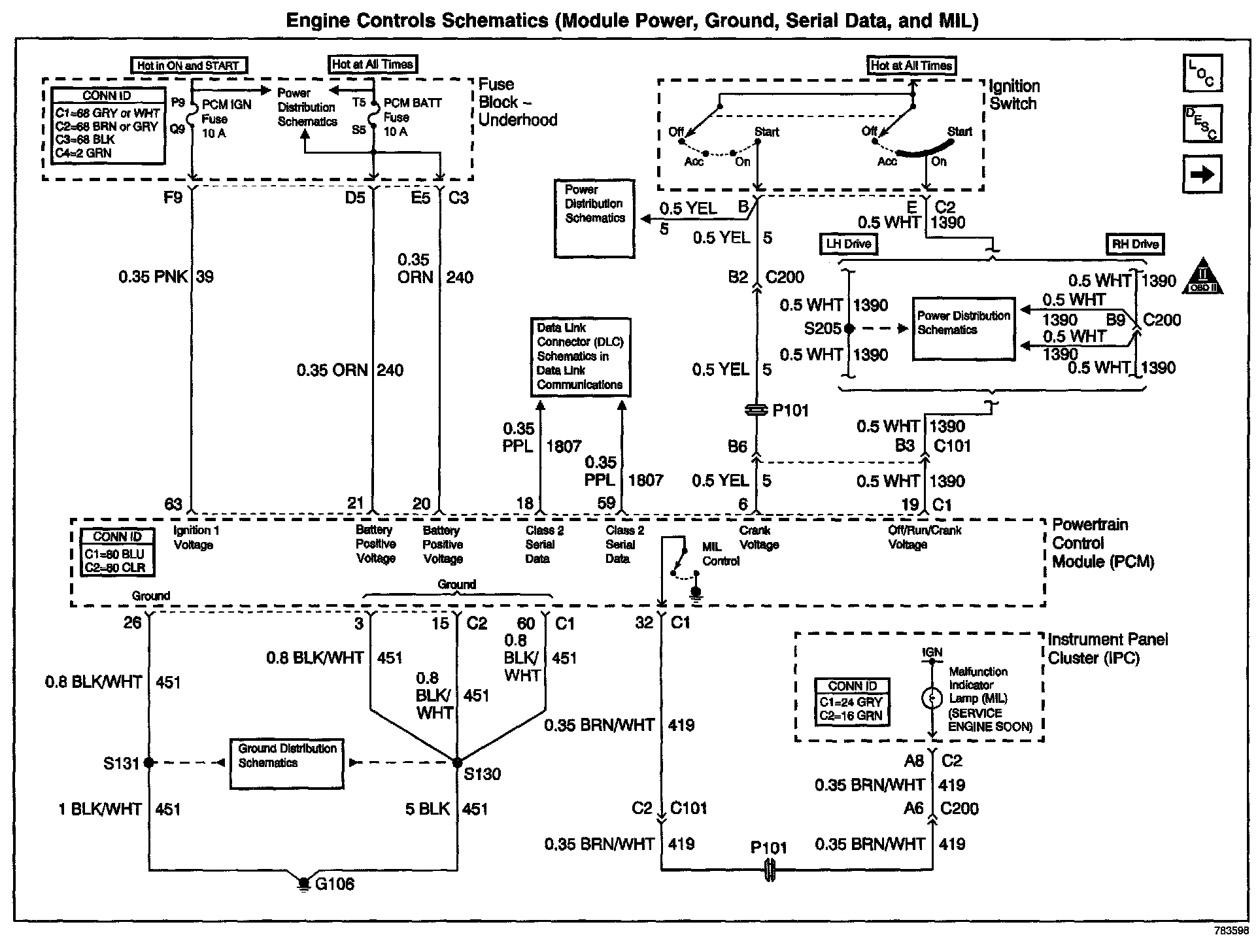

Engine Controls Schematics: Module Power, Ground, Serial Data, And MIL:
