Dash Integration Module (DIM)

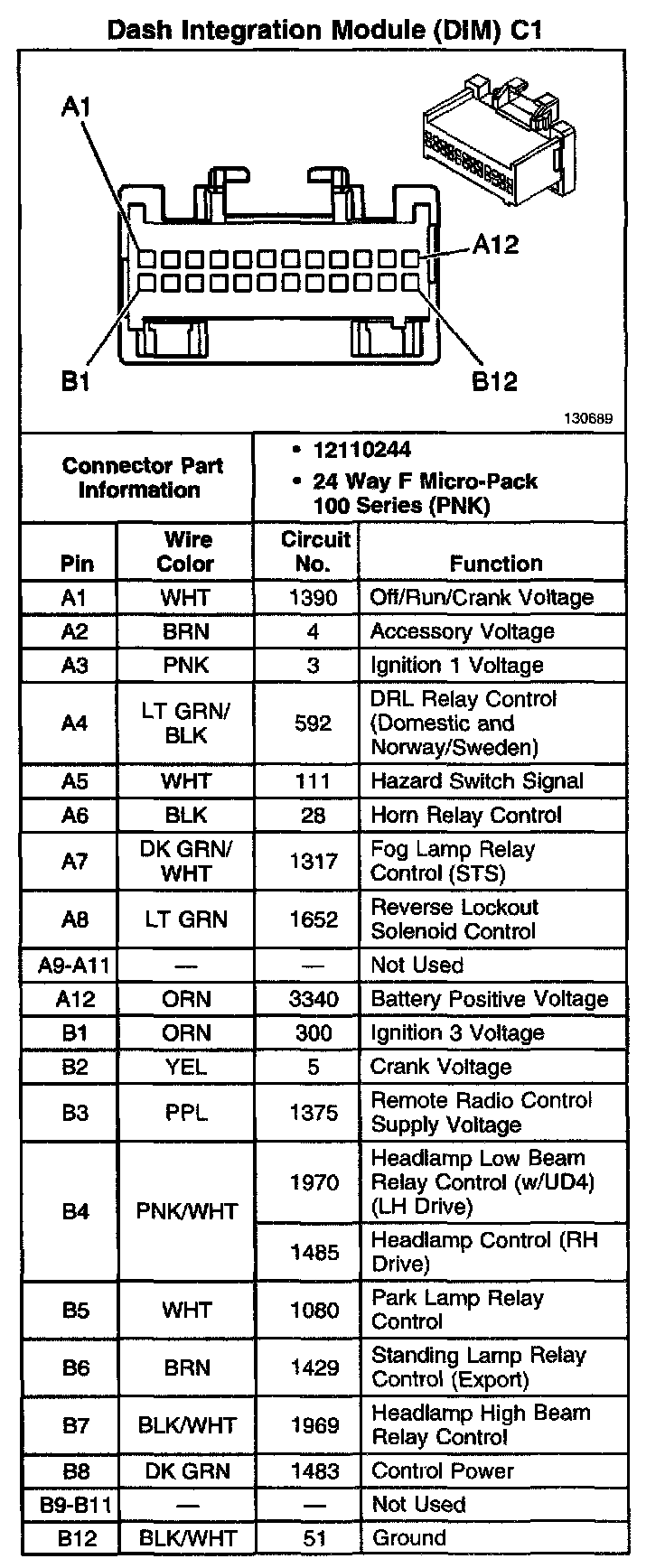

Dash Integration Module (DIM) C1:

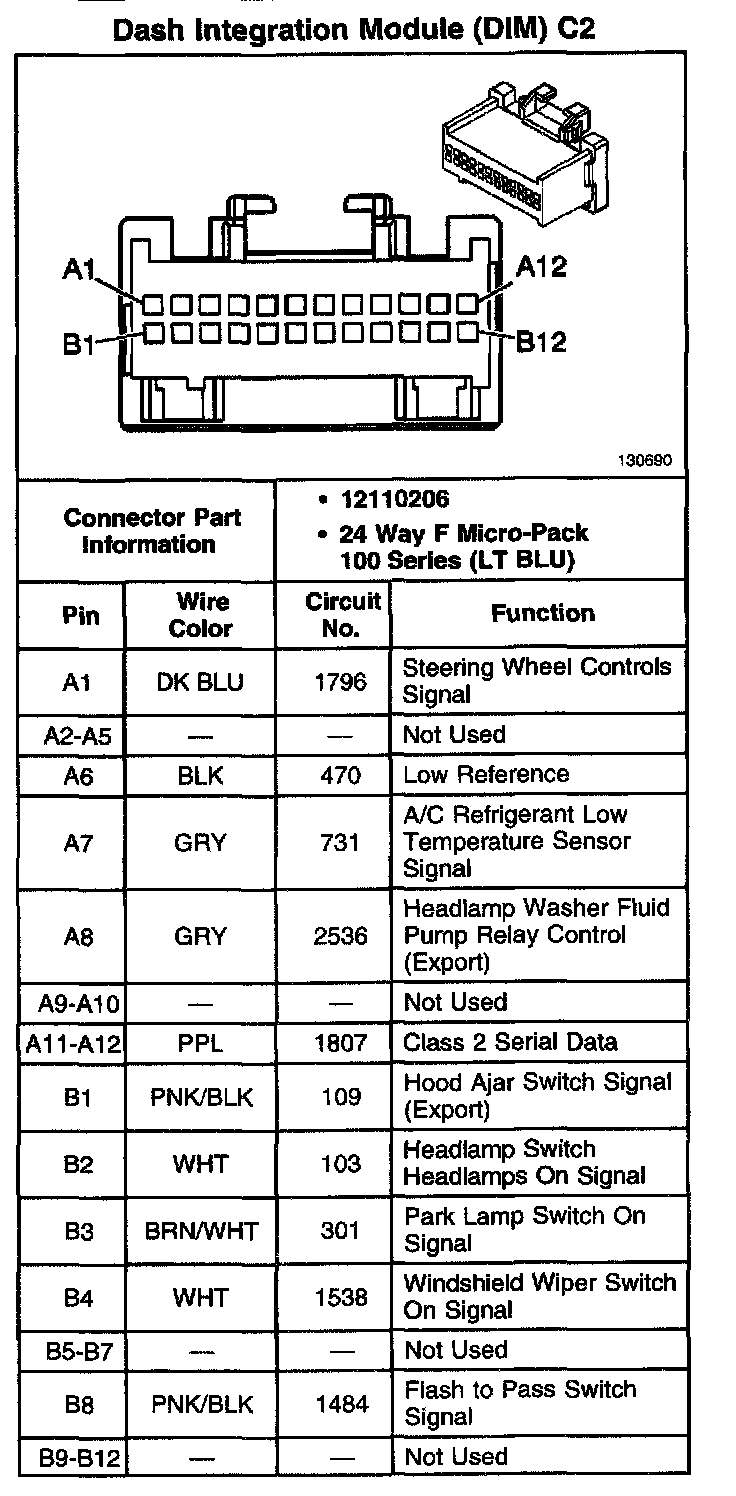

Dash Integration Module (DIM) C2:




Dash Integration Module (DIM) C3:





For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
