Connector Views

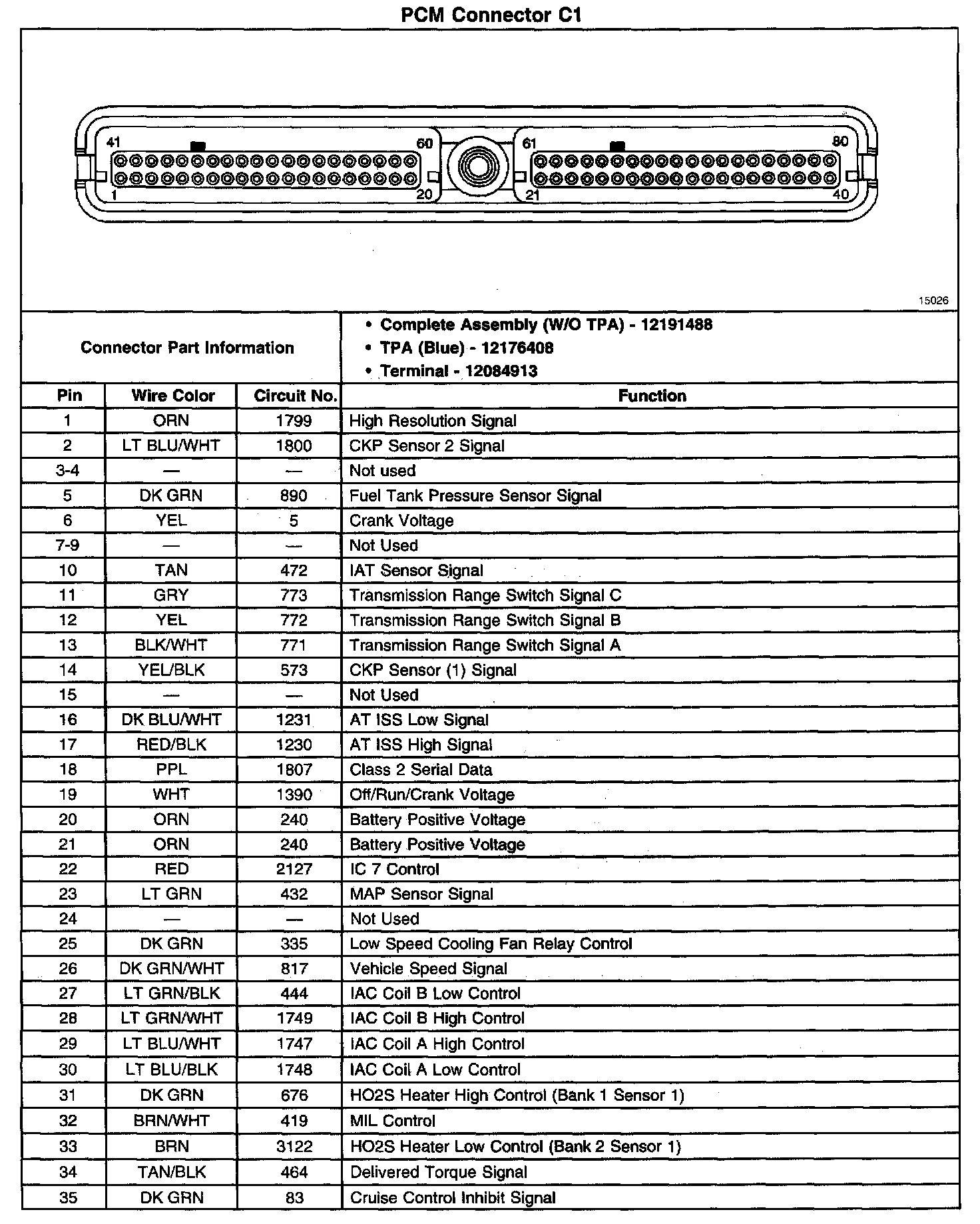

PCM Connector C1 Part 1:

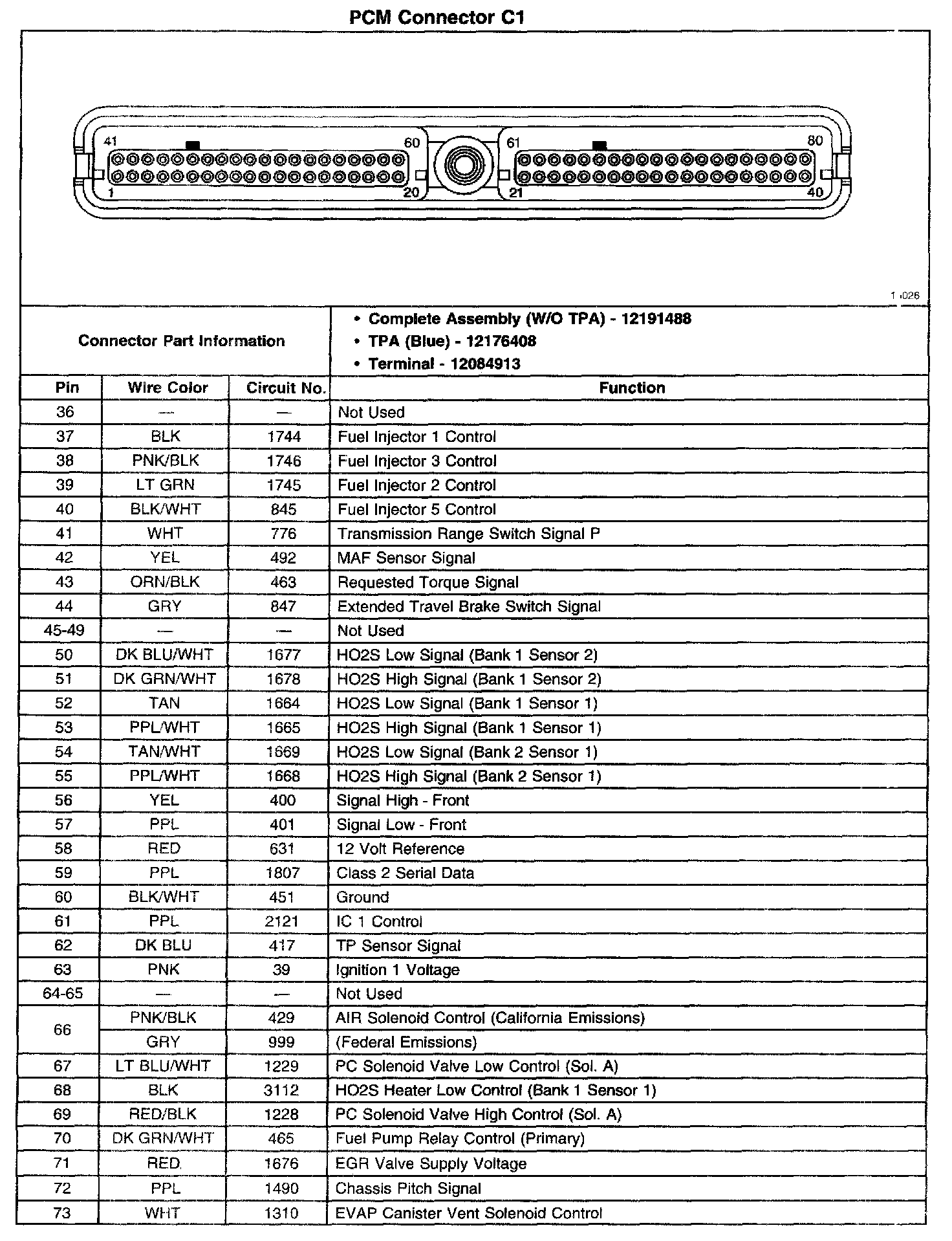

PCM Connector C1 Part 2:

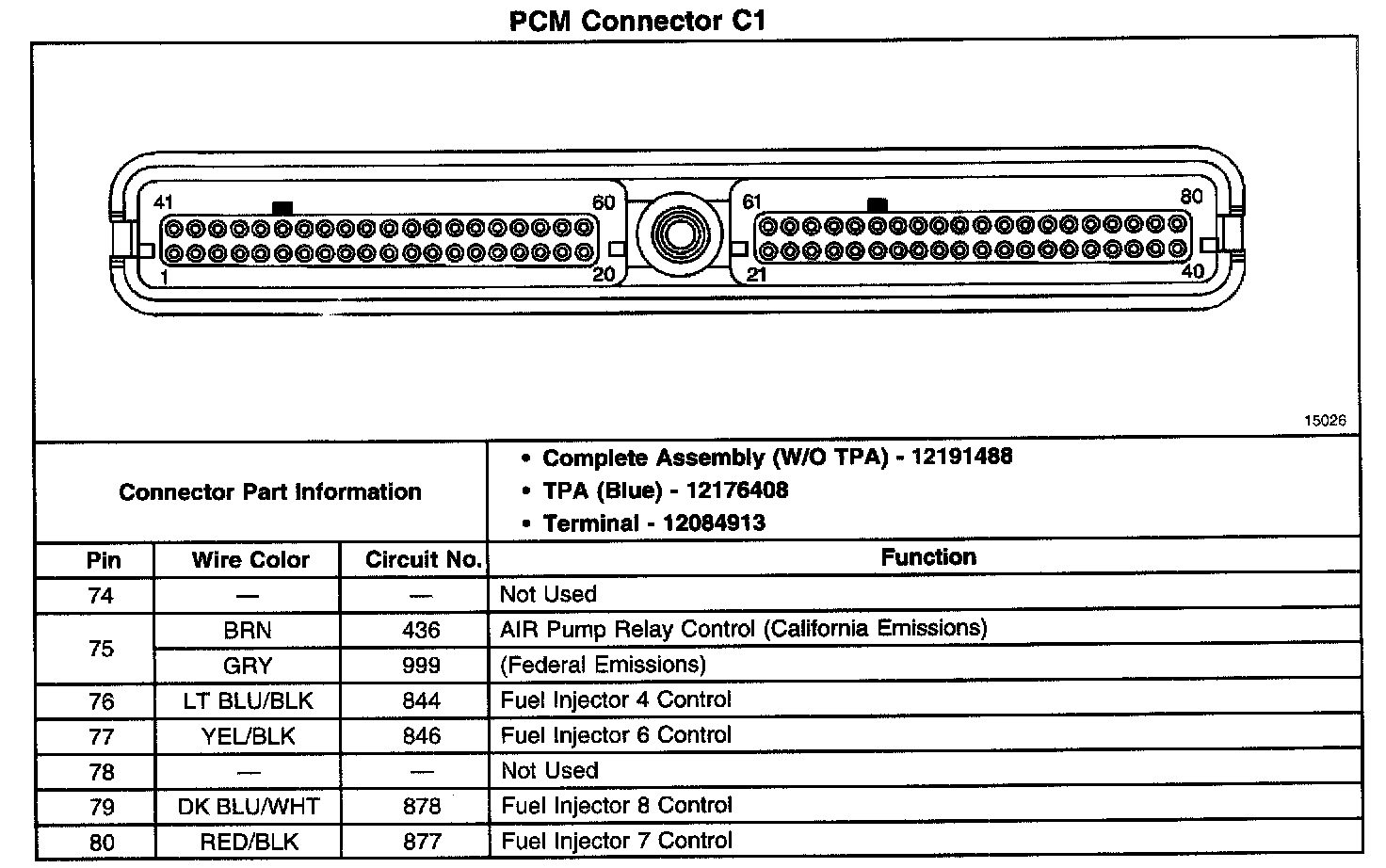

PCM Connector C1 Part 3:

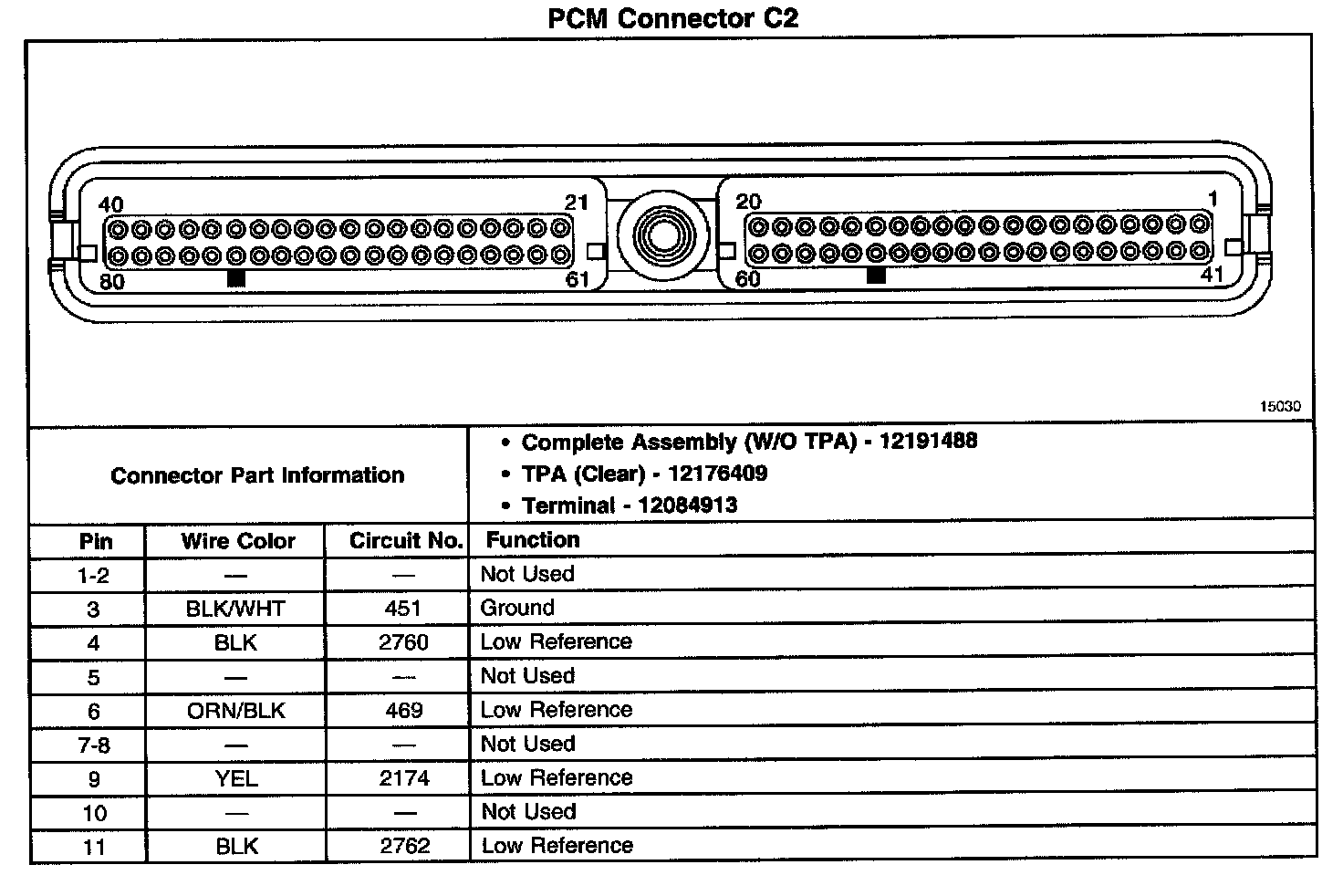

PCM Connector C2 Part 1:

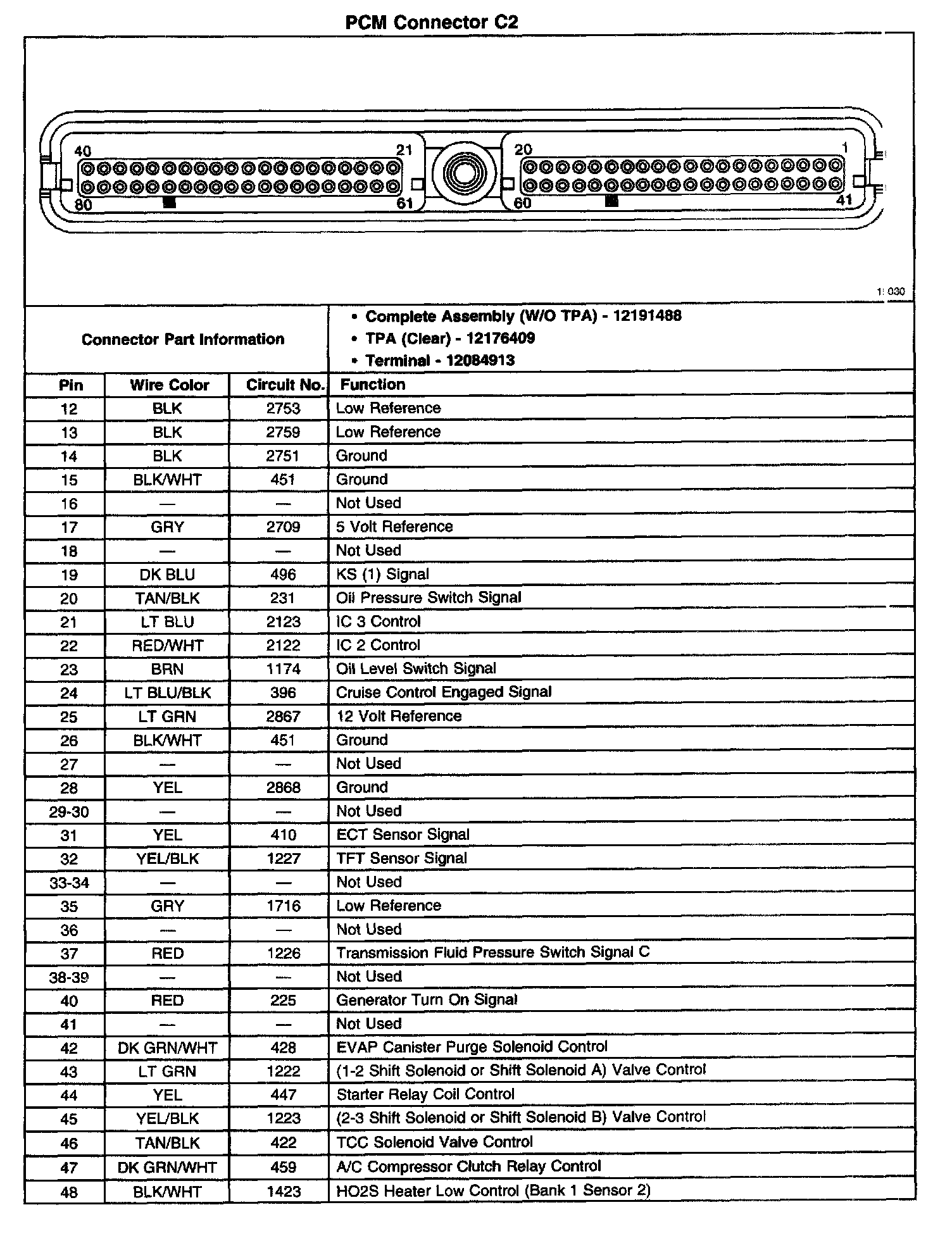

PCM Connector C2 Part 2:

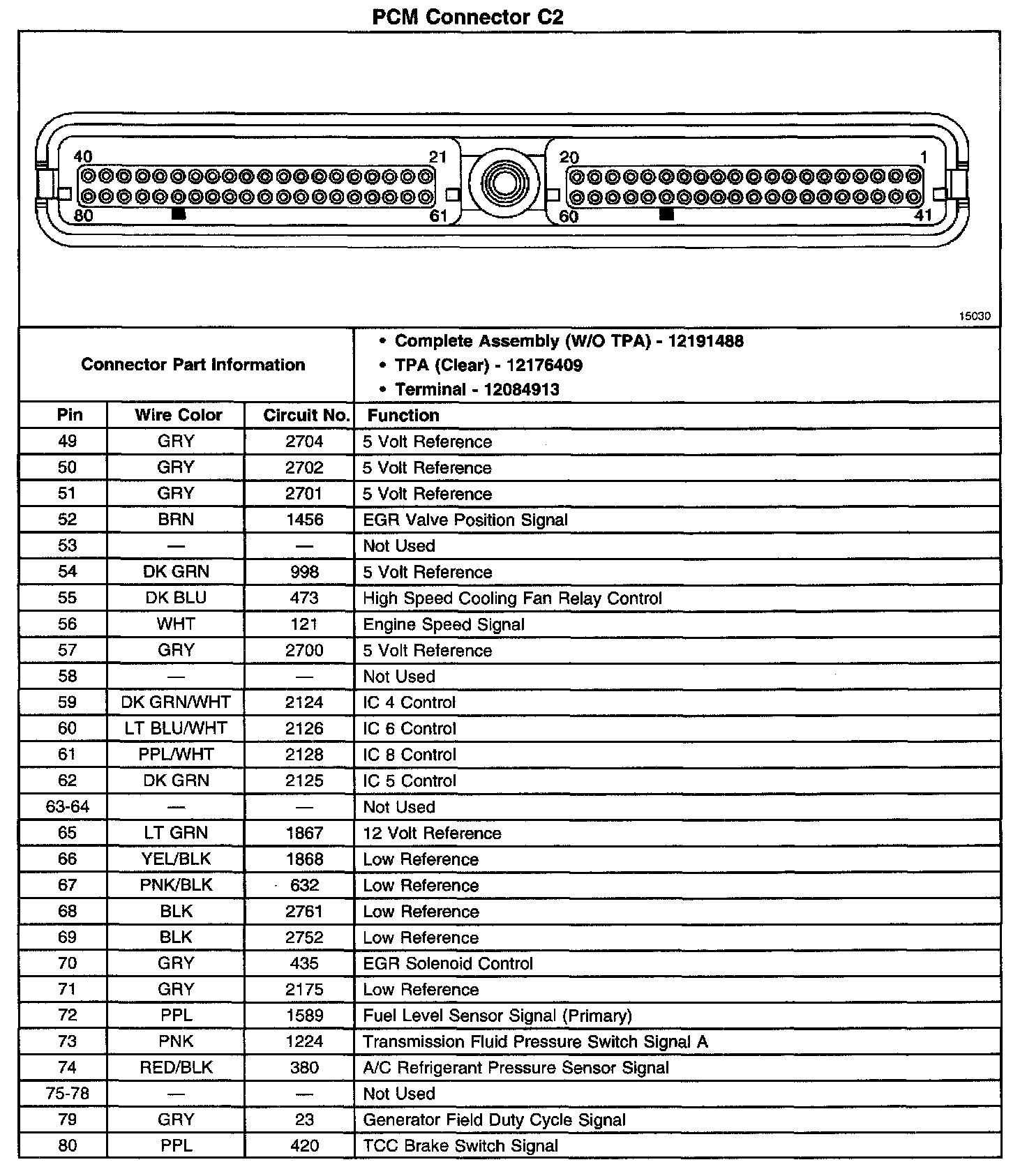

PCM Connector C2 Part 3:
