Driver

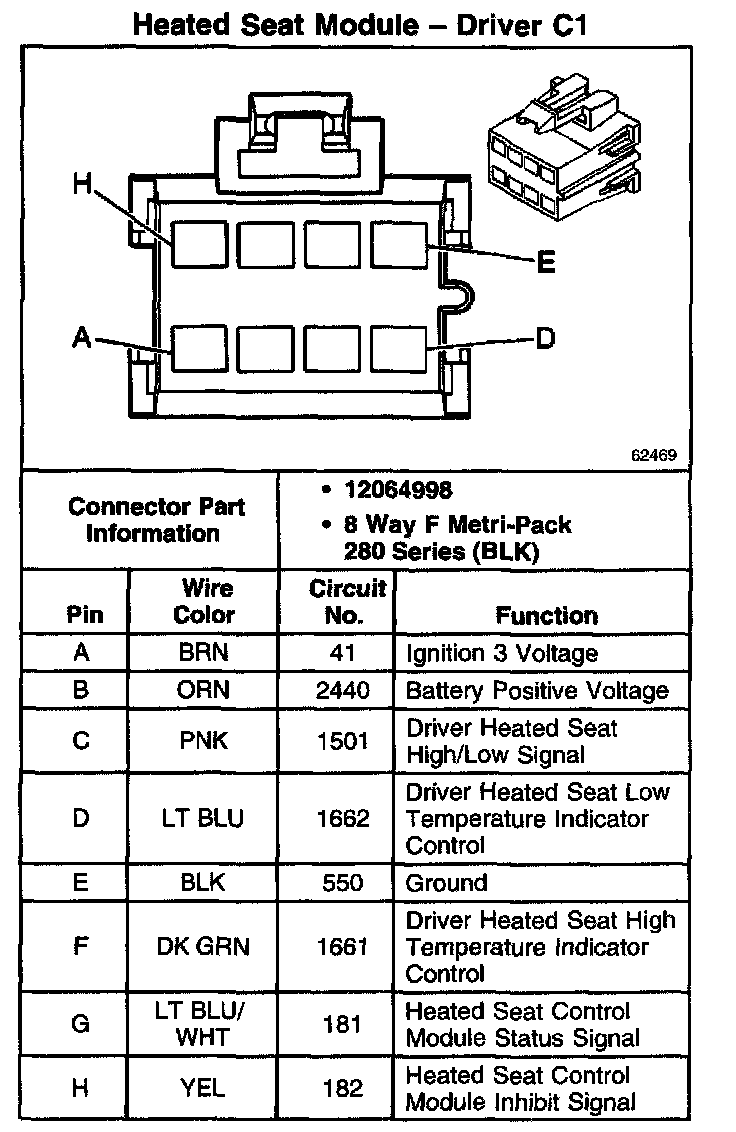

Heated Seat Module - Driver C1:



Heated Seat Module - Driver C2:



Heated Seat Module - Driver C3:
