Scan Tool Data List

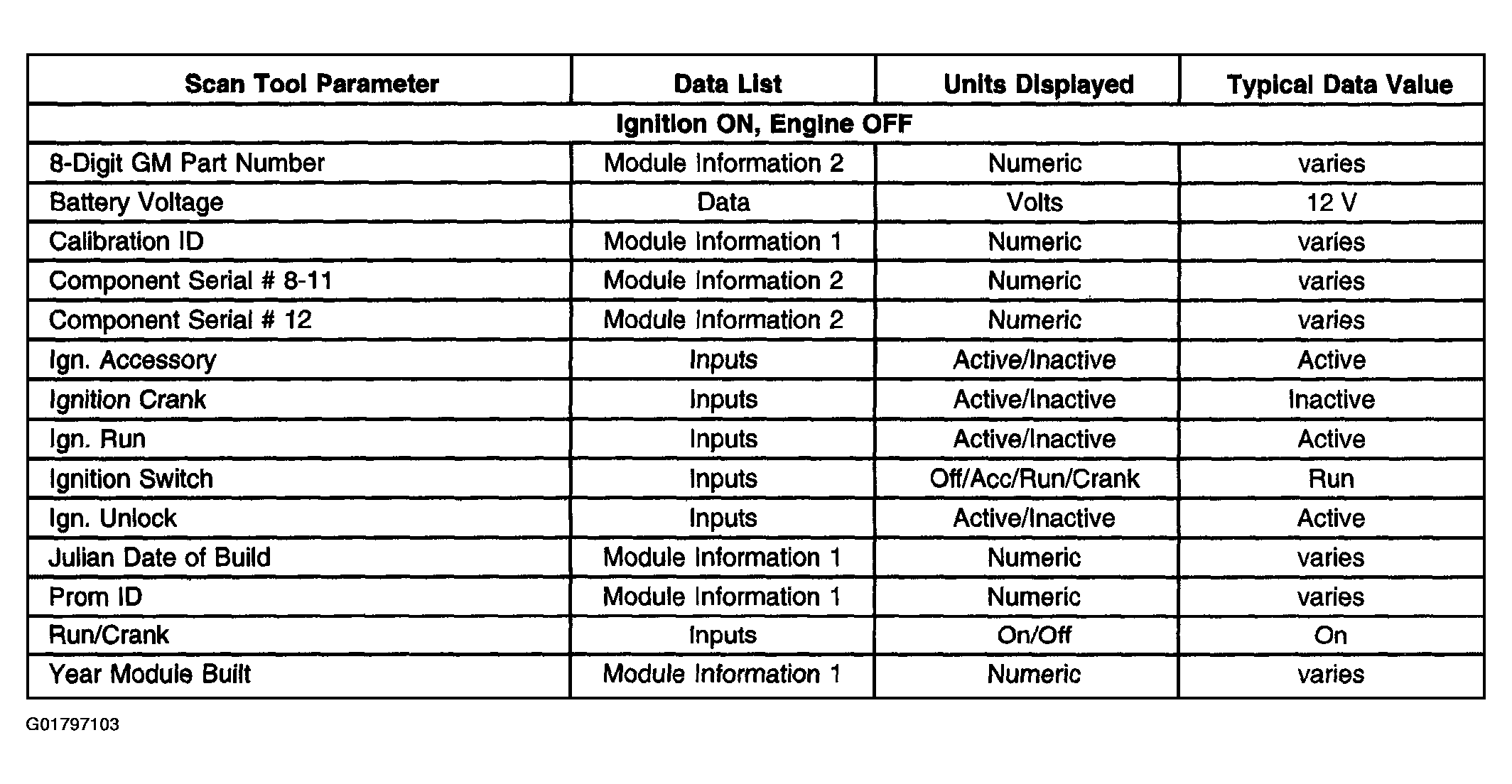

Fig 1: DIM
G01797103Courtesy of GENERAL MOTORS CORP.

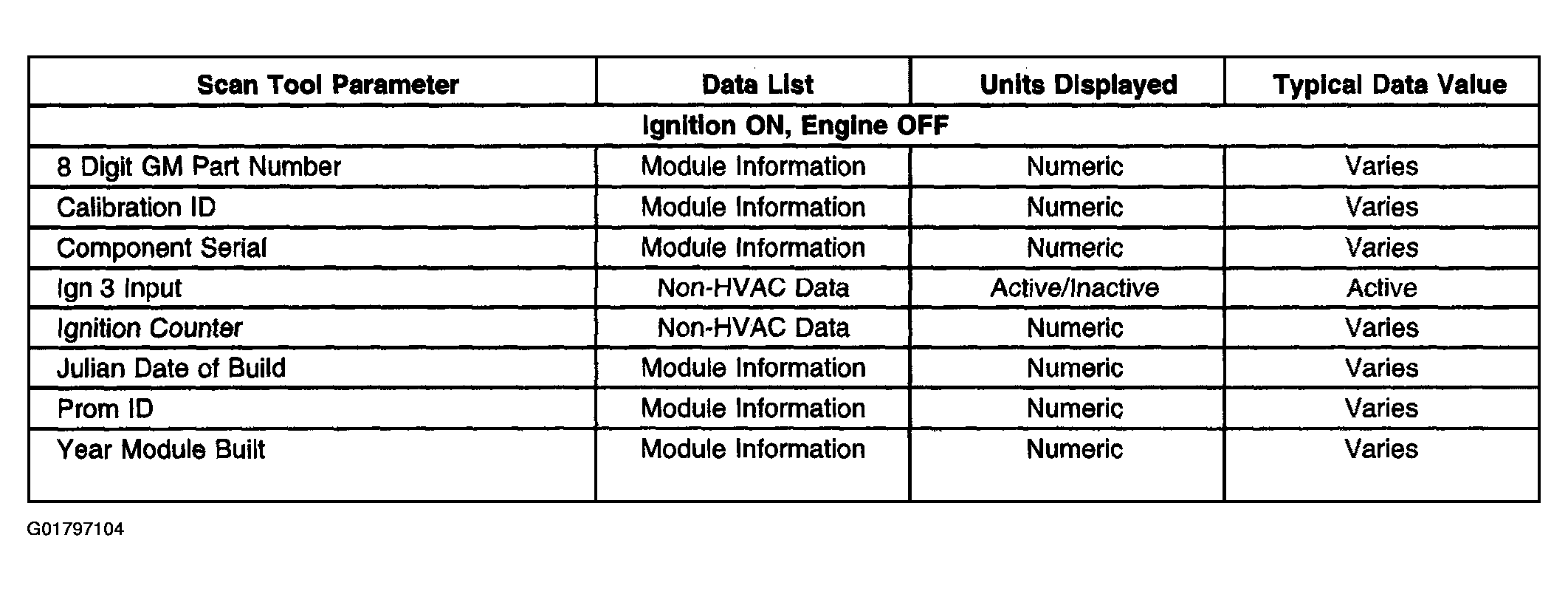

Fig 2: IPM
G01797104Courtesy of GENERAL MOTORS CORP.

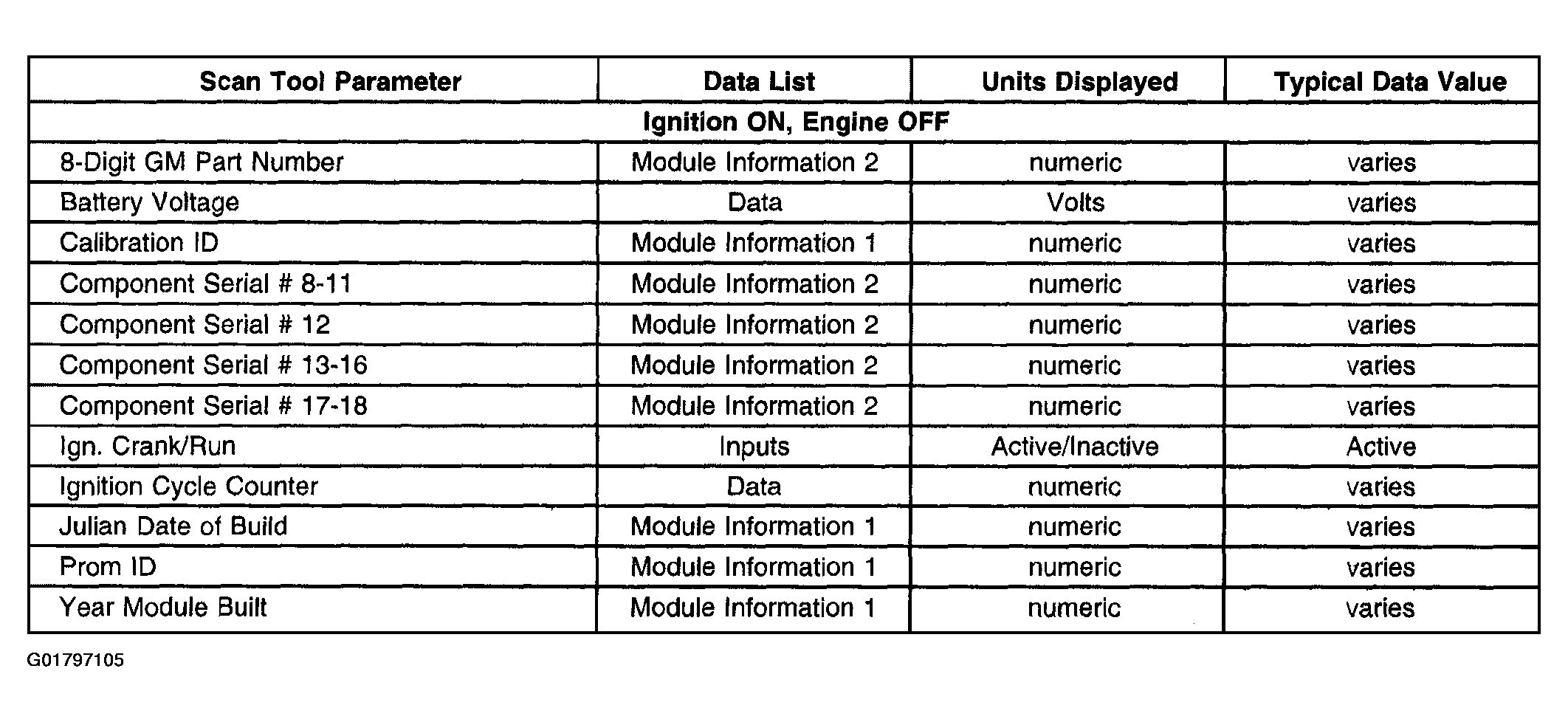

Fig 3: RIM
G01797105Courtesy of GENERAL MOTORS CORP.
