Stationary Windows Connector End Views

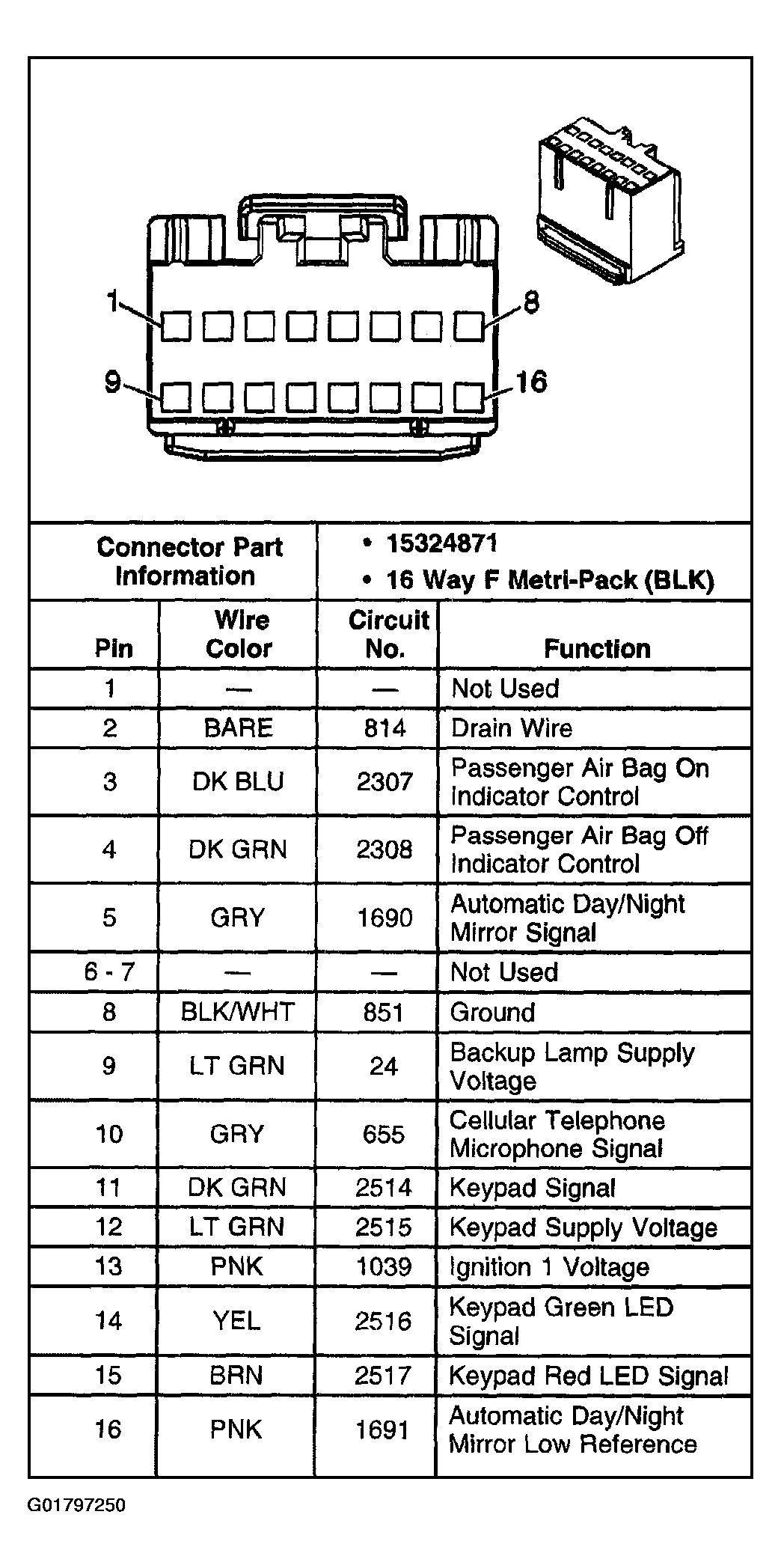

Fig 1: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
