Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows
  2. Connect the rear window defogger left electrical connector.

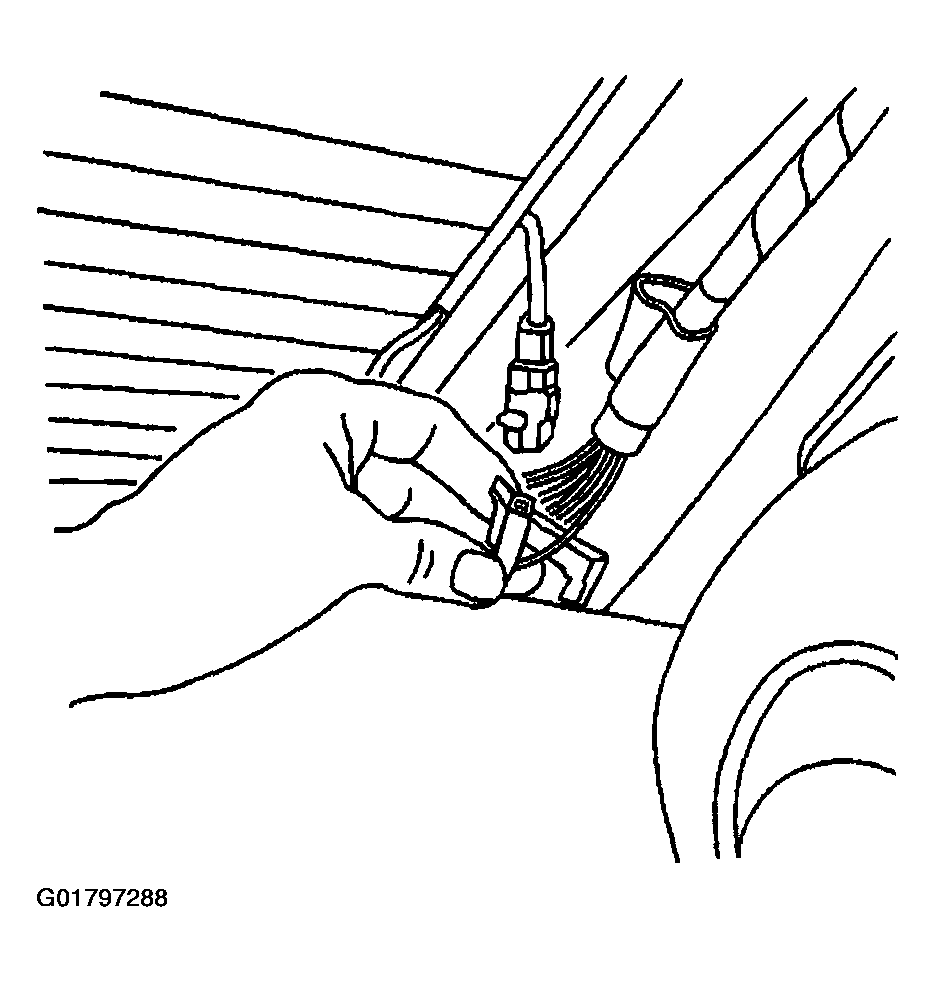

    Fig 1: Connecting Rear Window Defogger Left Electrical Connector
    G01797288Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear window defogger right electrical connector.
  4. Install the OnStar® antenna. Refer to COUPLING REPLACEMENT - ANTENNA OUTER and COUPLING REPLACEMENT - ANTENNA INNER .

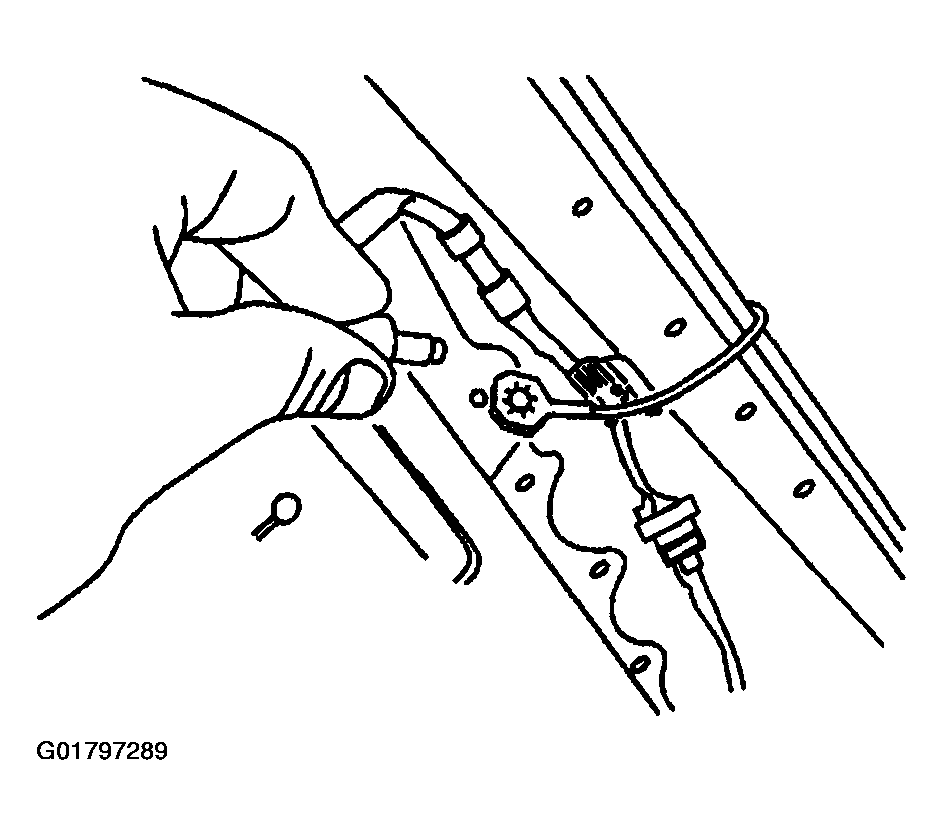

    Fig 2: Connecting Rear Window Defogger Right Electrical Connector
    G01797289Courtesy of GENERAL MOTORS CORP.
  5. Install the rear sail panels. Refer to SAIL PANEL REPLACEMENT .
  6. Install the rear window lower reveal molding (2).
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.
  7. Install the four rear window lower reveal molding fasteners (1).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  8. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  9. Close the rear compartment lid.

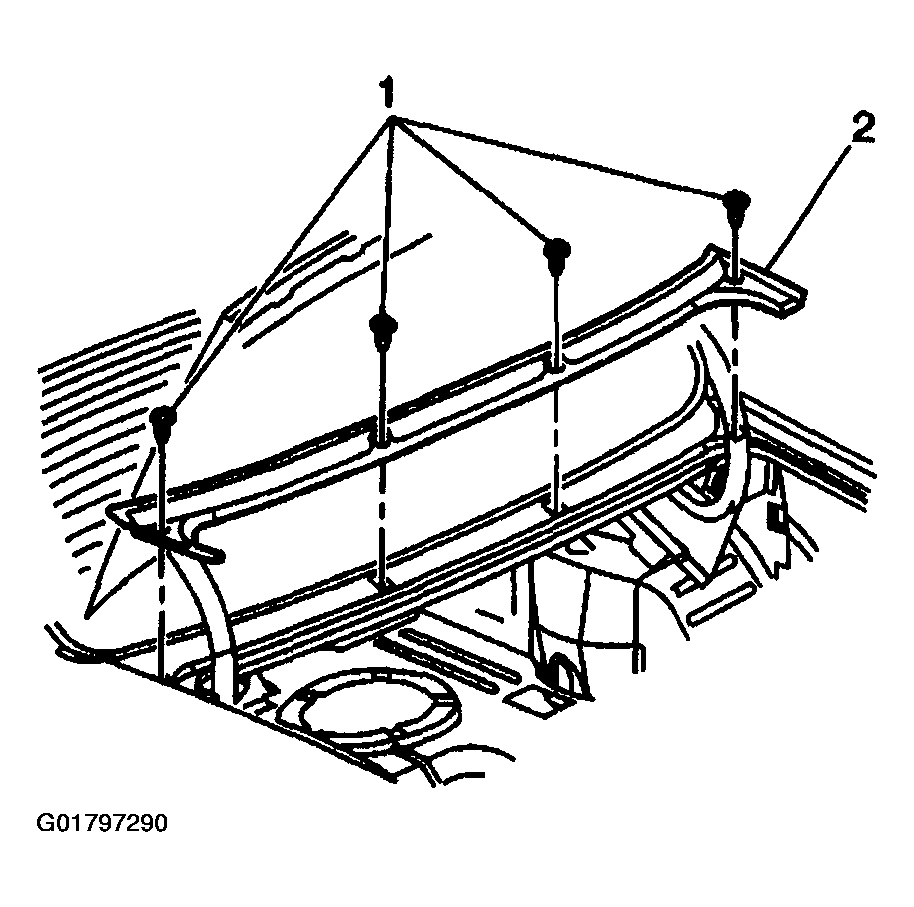

    Fig 3: Installing Rear Window Lower Reveal Molding & Fastener
    G01797290Courtesy of GENERAL MOTORS CORP.
