ABS Connector End Views

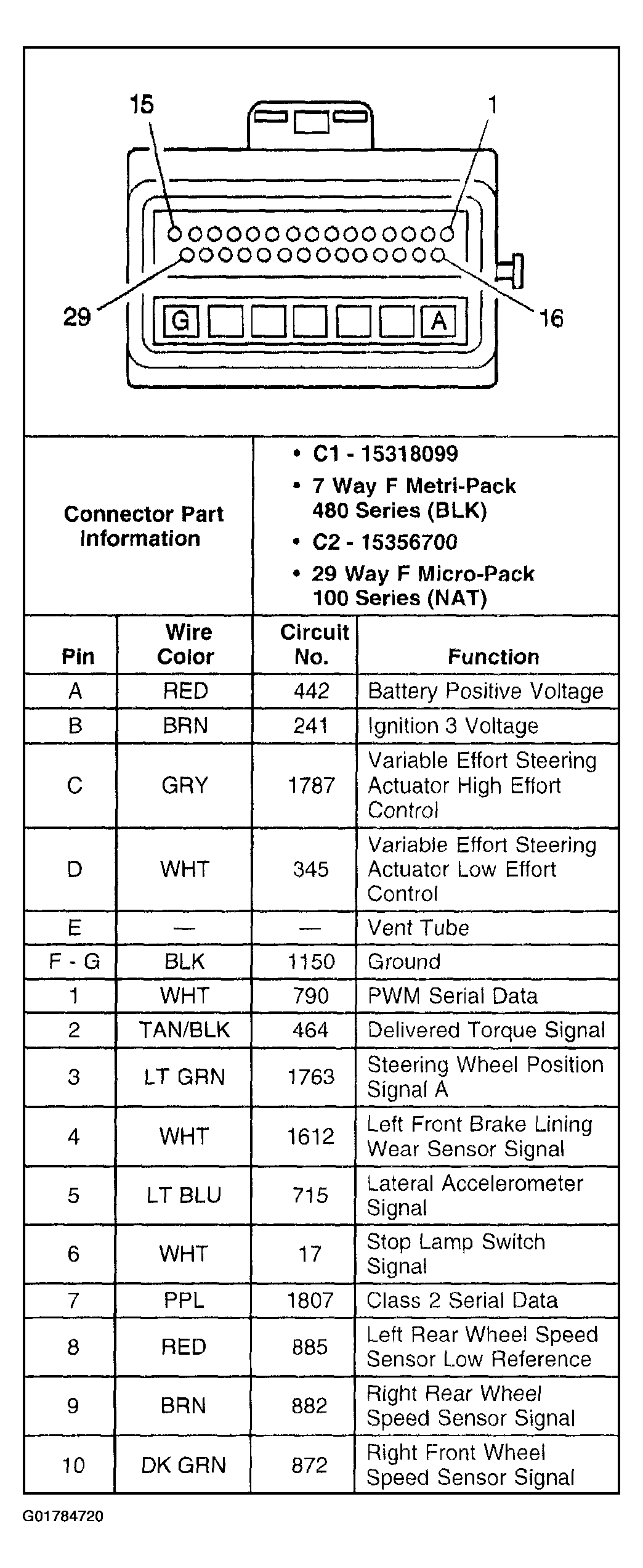

Fig 1: Identifying Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

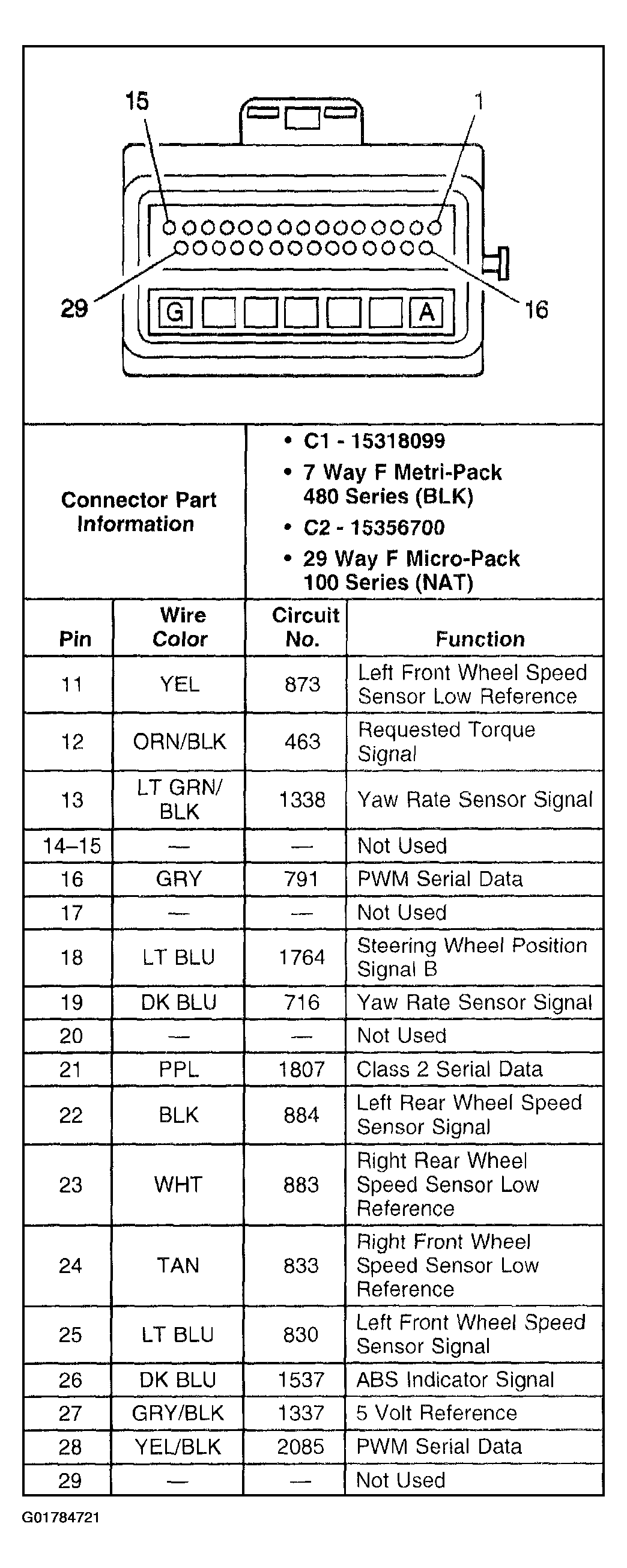

Fig 2: Identifying Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

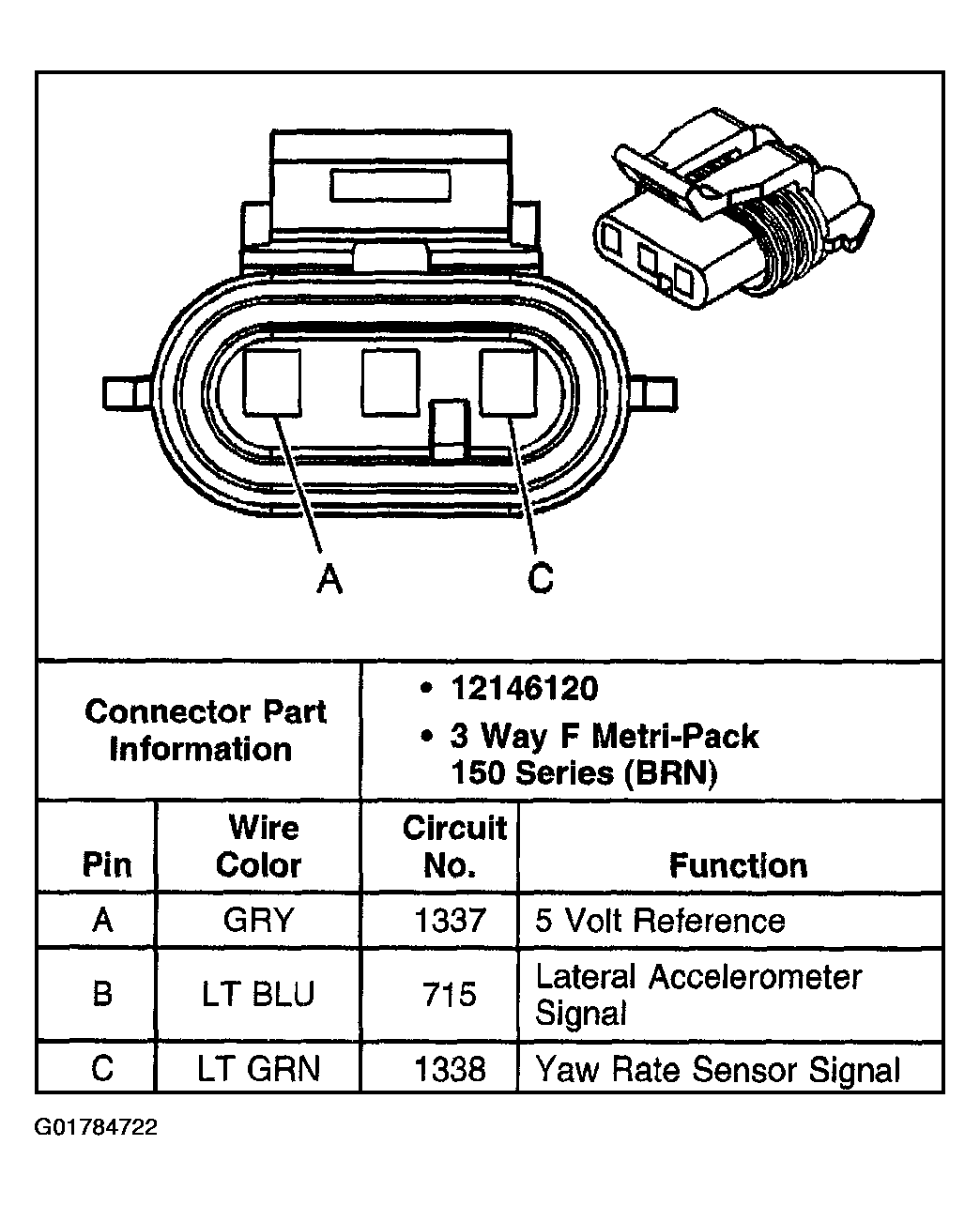

Fig 3: Identifying Lateral Accelerometer Sensor

Courtesy of GENERAL MOTORS CORP.

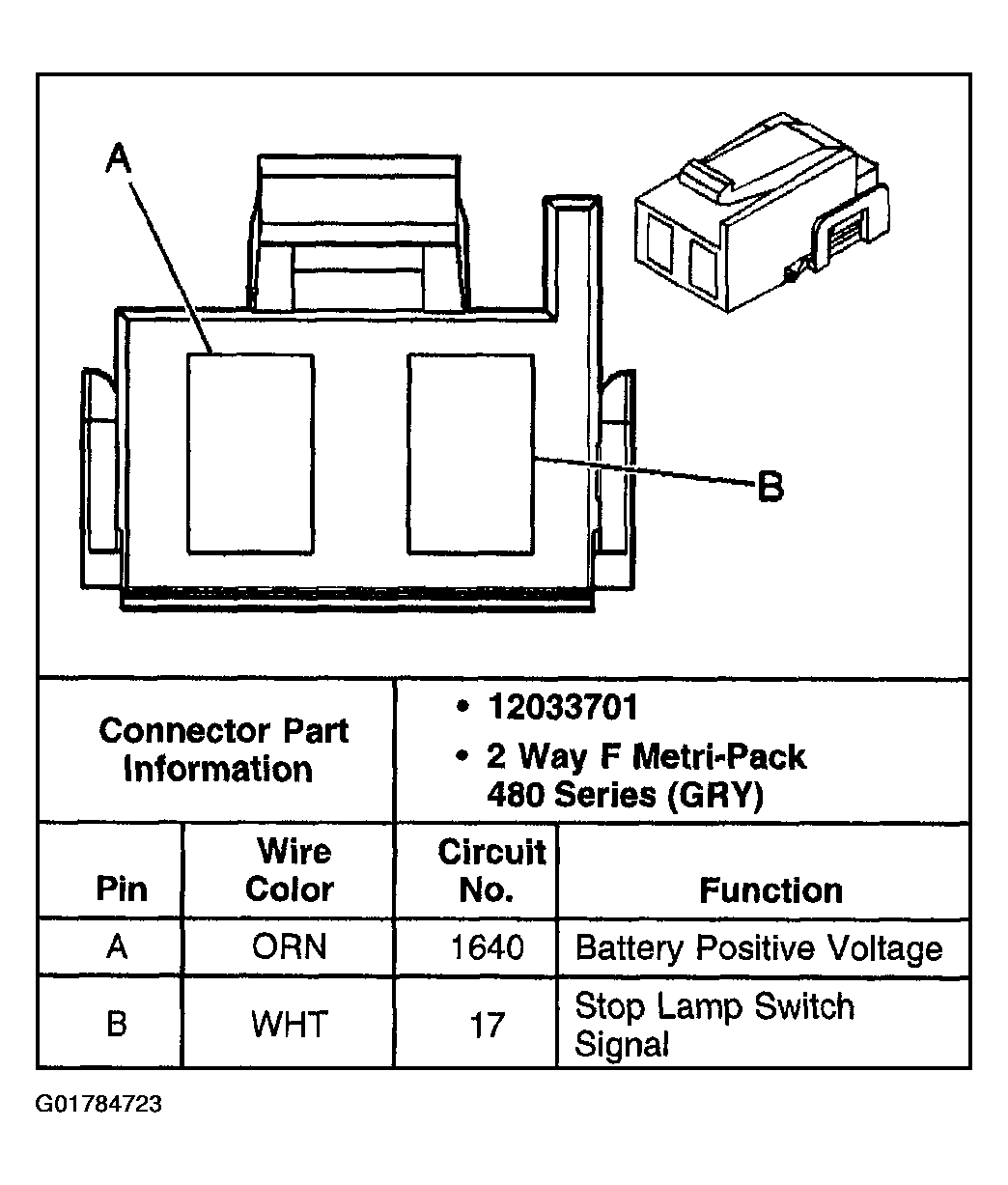

Fig 4: Identifying Stoplamp Switch C1

Courtesy of GENERAL MOTORS CORP.

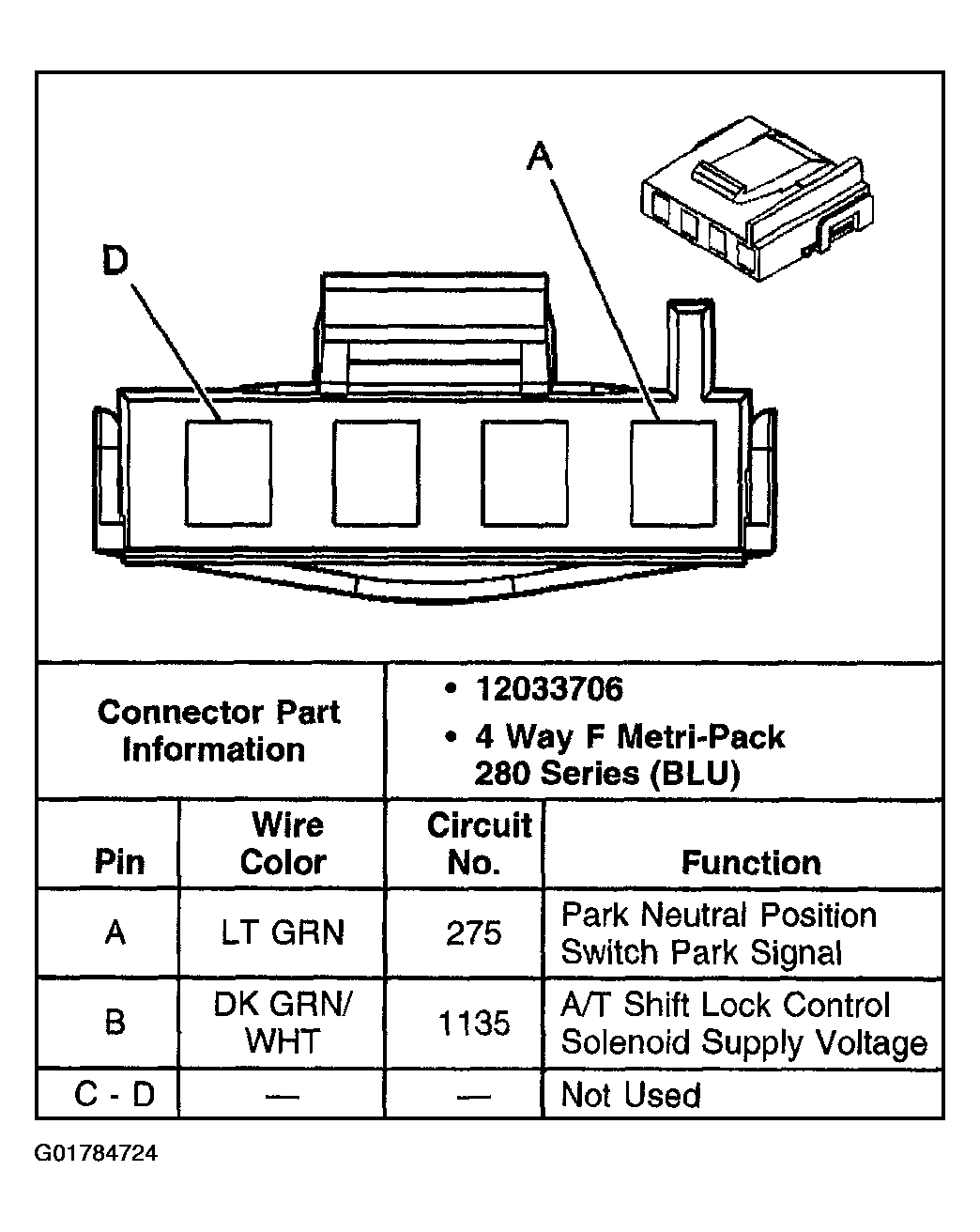

Fig 5: Identifying Stoplamp Switch C2

Courtesy of GENERAL MOTORS CORP.

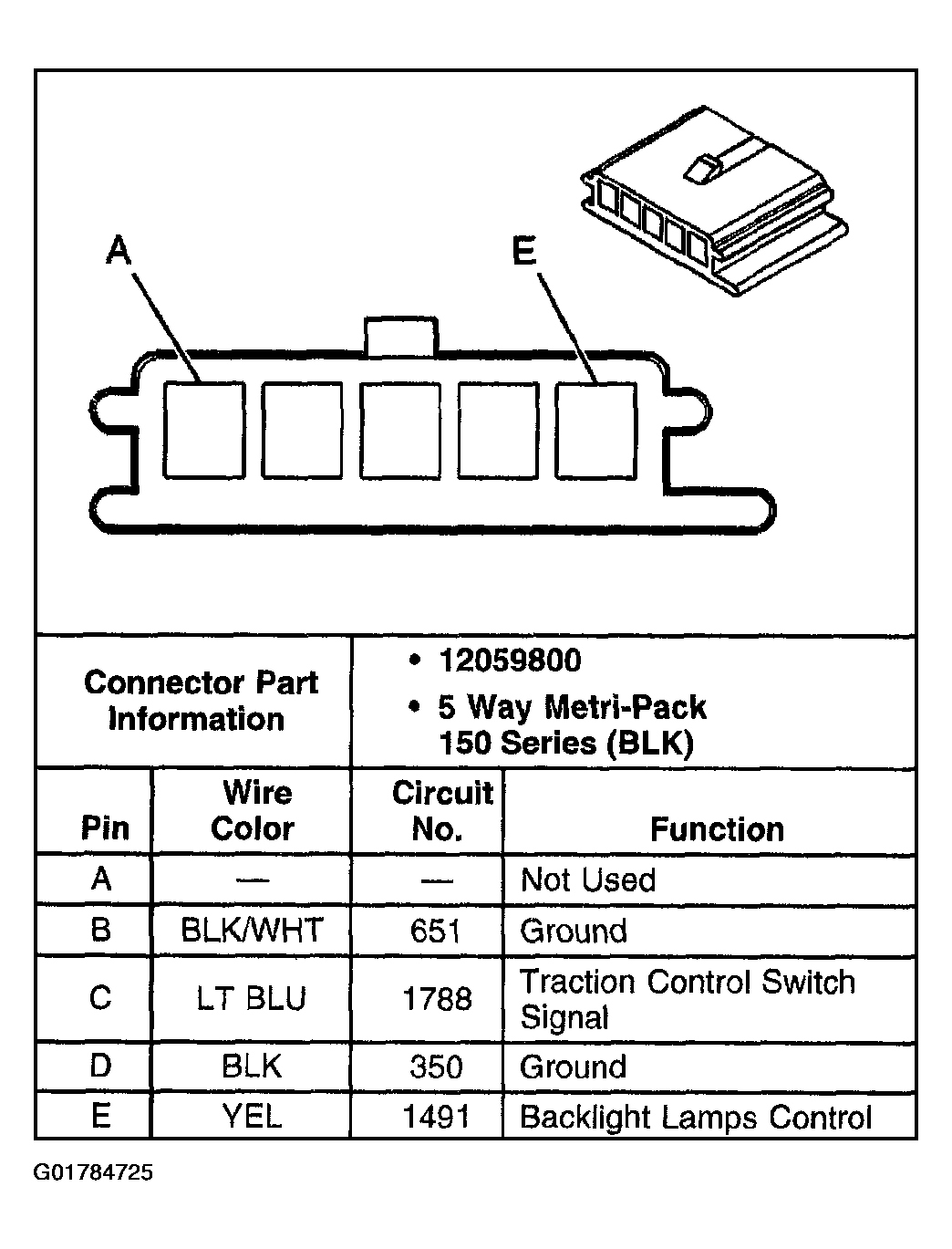

Fig 6: Identifying Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

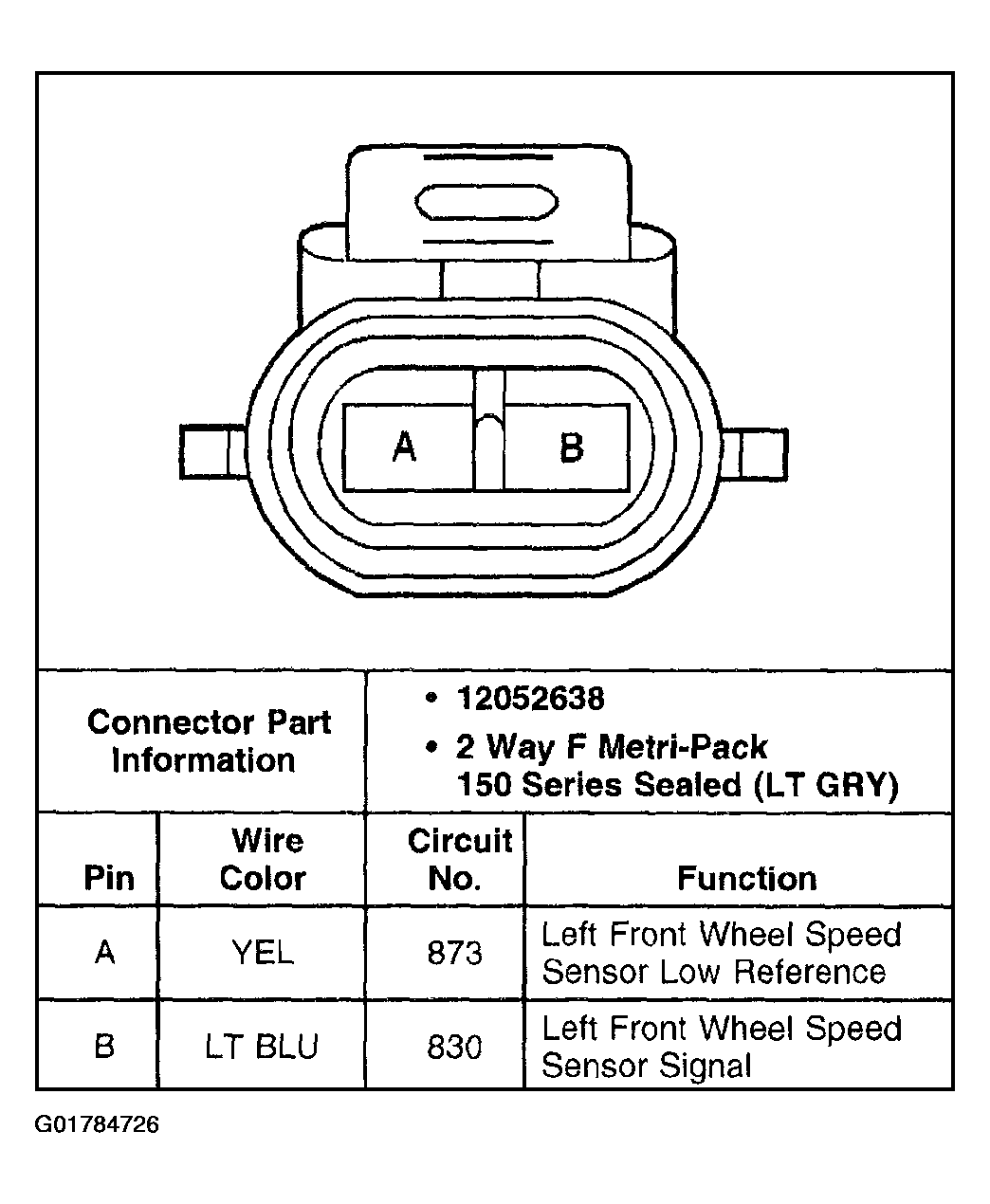

Fig 7: Identifying Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

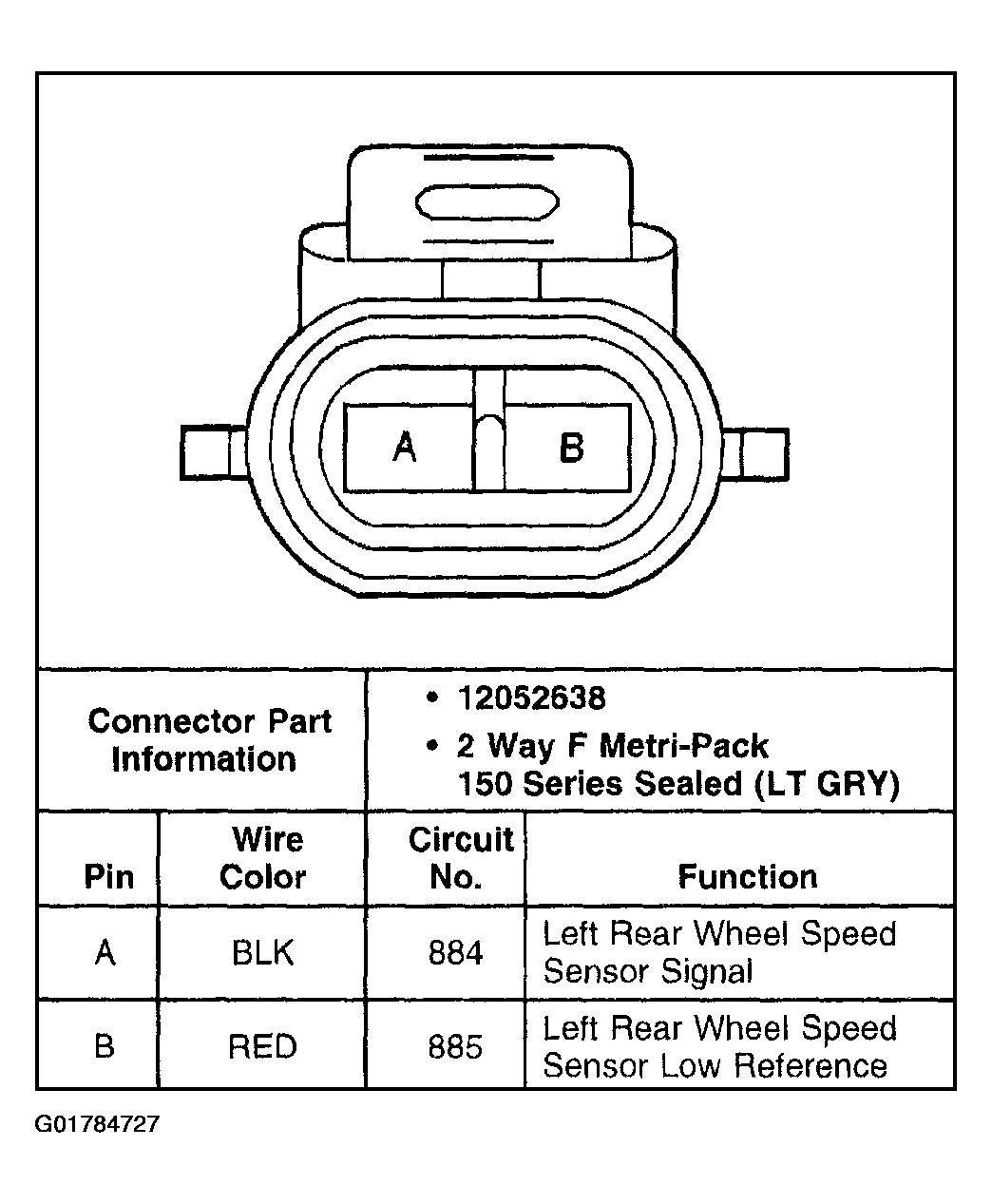

Fig 8: Identifying Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

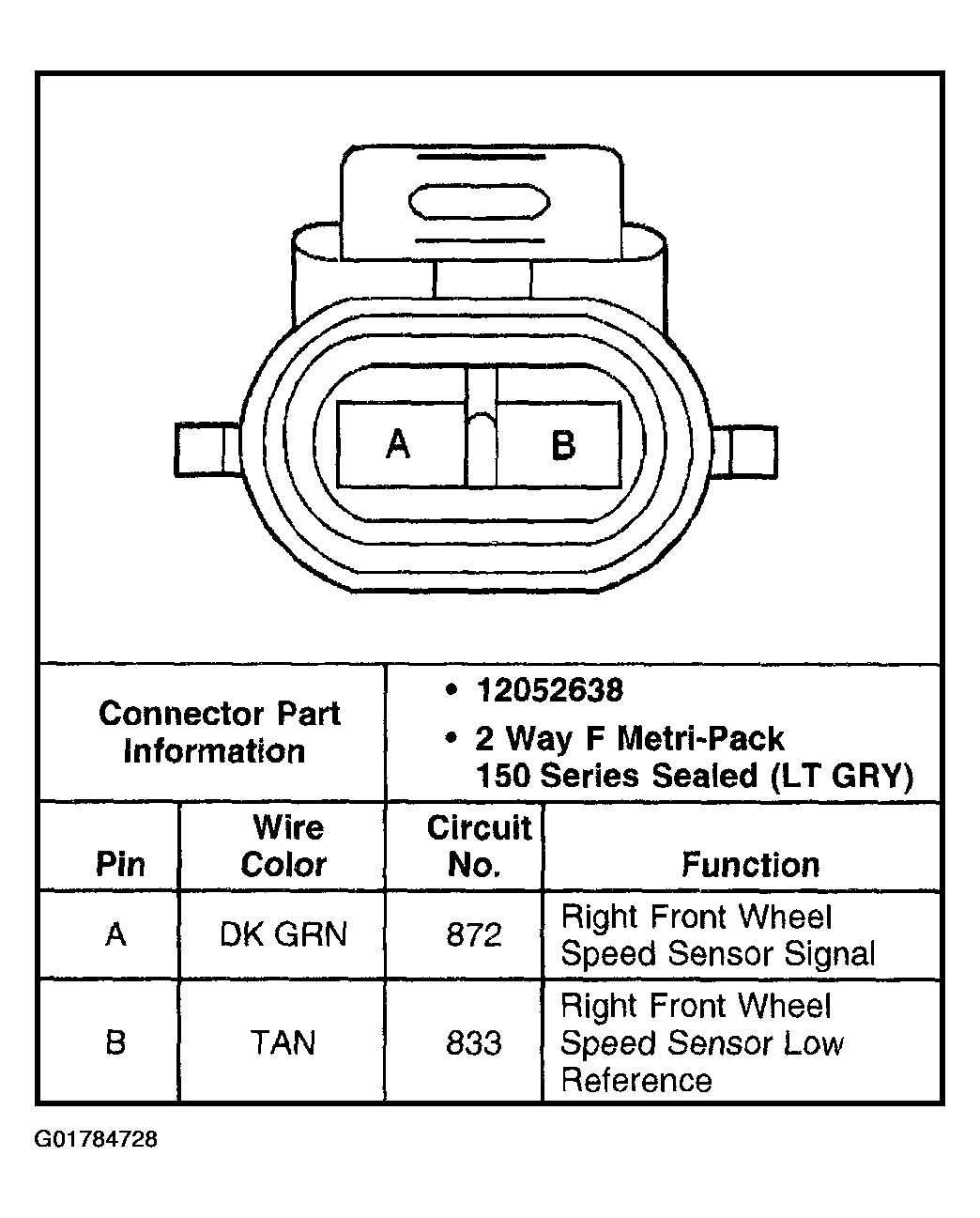

Fig 9: Identifying Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.
