Horns Connector End Views

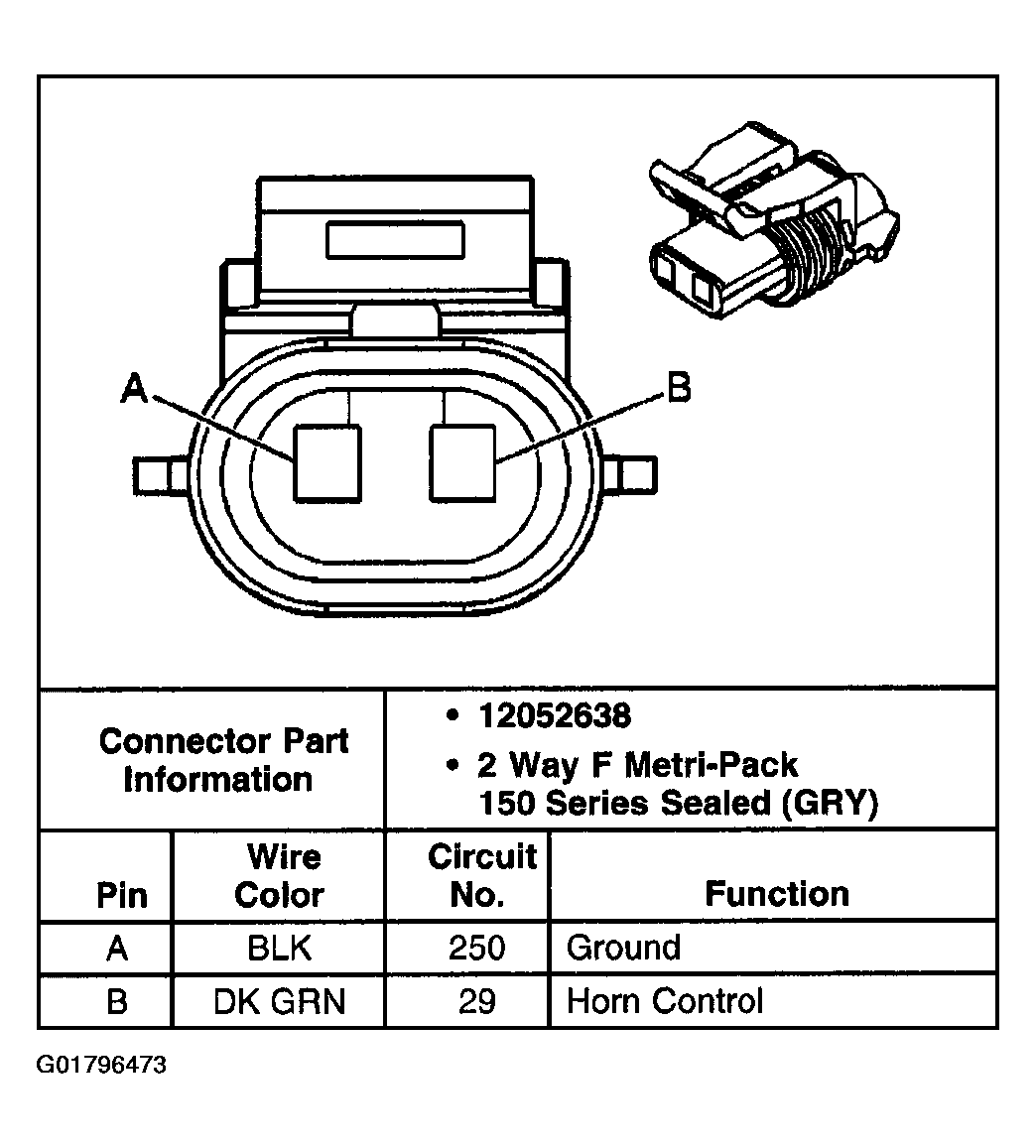

Fig 1: Horn - A Note
Courtesy of GENERAL MOTORS CORP.

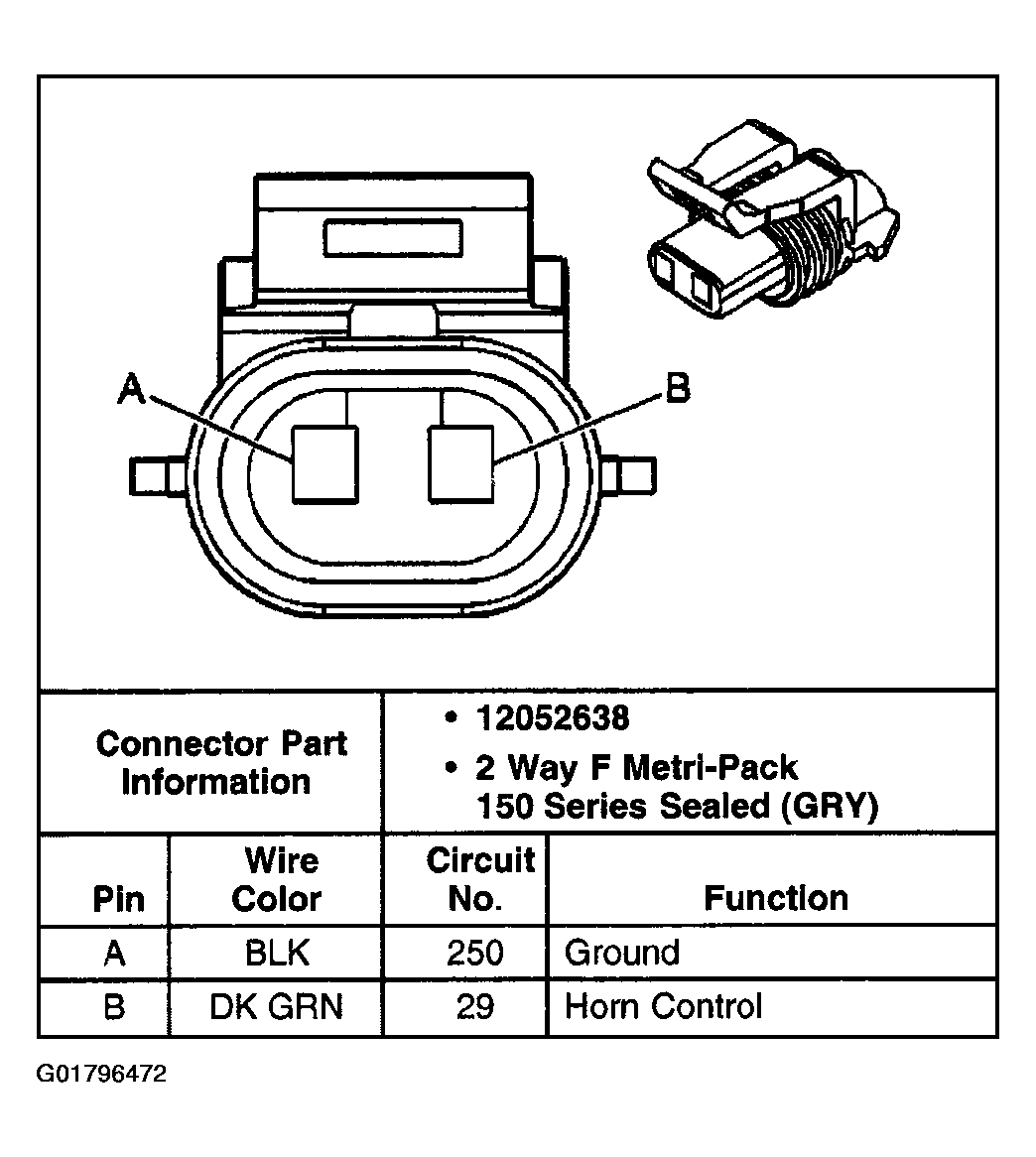

Fig 2: Horn - F Note
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
