Removal Procedure

  1. Insert a flat bladed tool under the front edge of the front door switch.
  2. Push the tool firmly towards the switch to disengage the retainer.
  3. Lift up on the rear of the switch plate to remove it from the door trim panel.
  4. Disconnect electrical connectors.
    Fig 1: Disengaging Retainer To Remove Switch Plate
    G02097591Courtesy of GENERAL MOTORS CORP.
  5. Remove the appropriate switch from the bezel by disengaging the side snap walls with a small flat bladed tool.

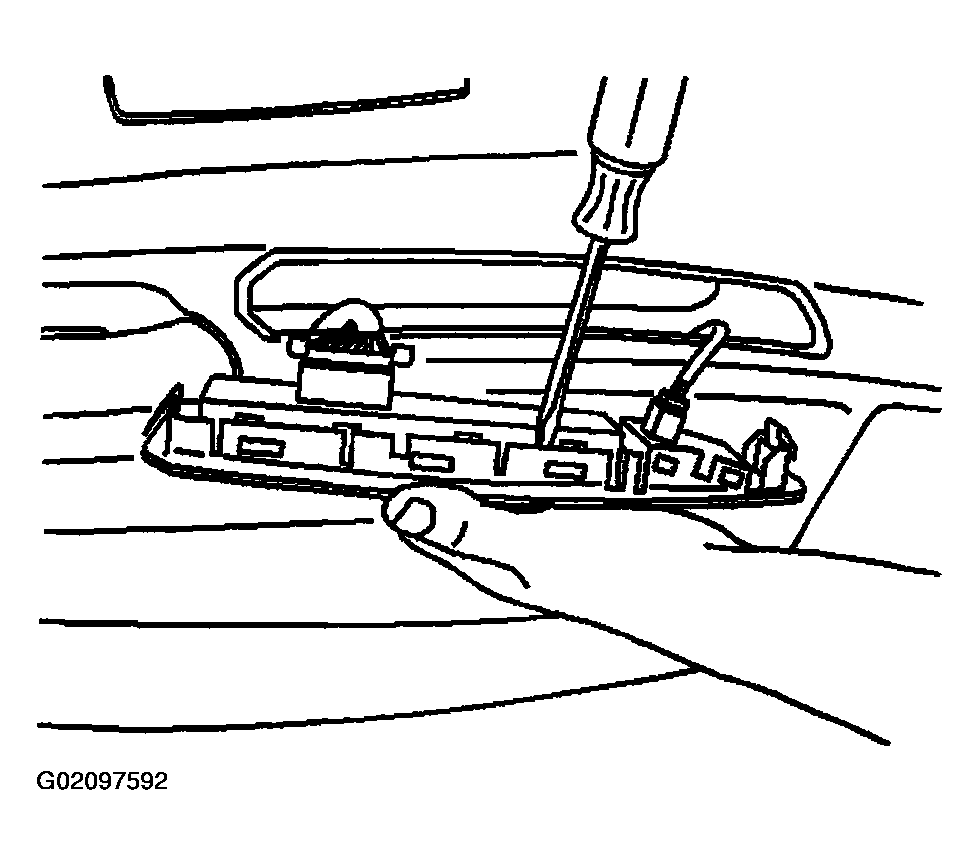

    Fig 2: Removing Appropriate Switch From Bezel
    G02097592Courtesy of GENERAL MOTORS CORP.
