Automatic Transmission - 5L40-E (Unit Repair)
>>
Component Locator
>>
Disassembled Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Disassembled Views

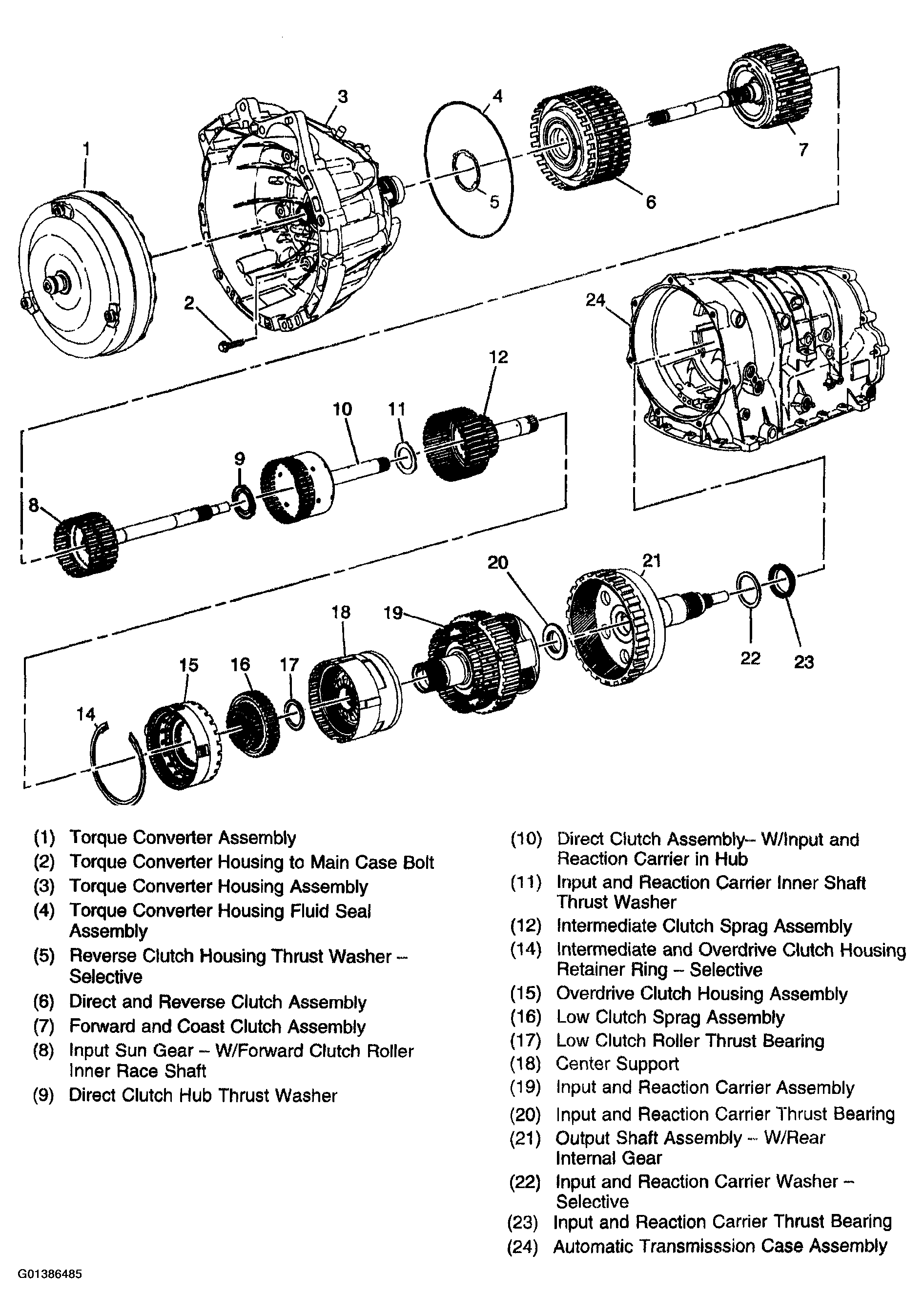

Fig 1: Case & Associated Parts (1 Of 2) Disassembled View
Courtesy of GENERAL MOTORS CORP.

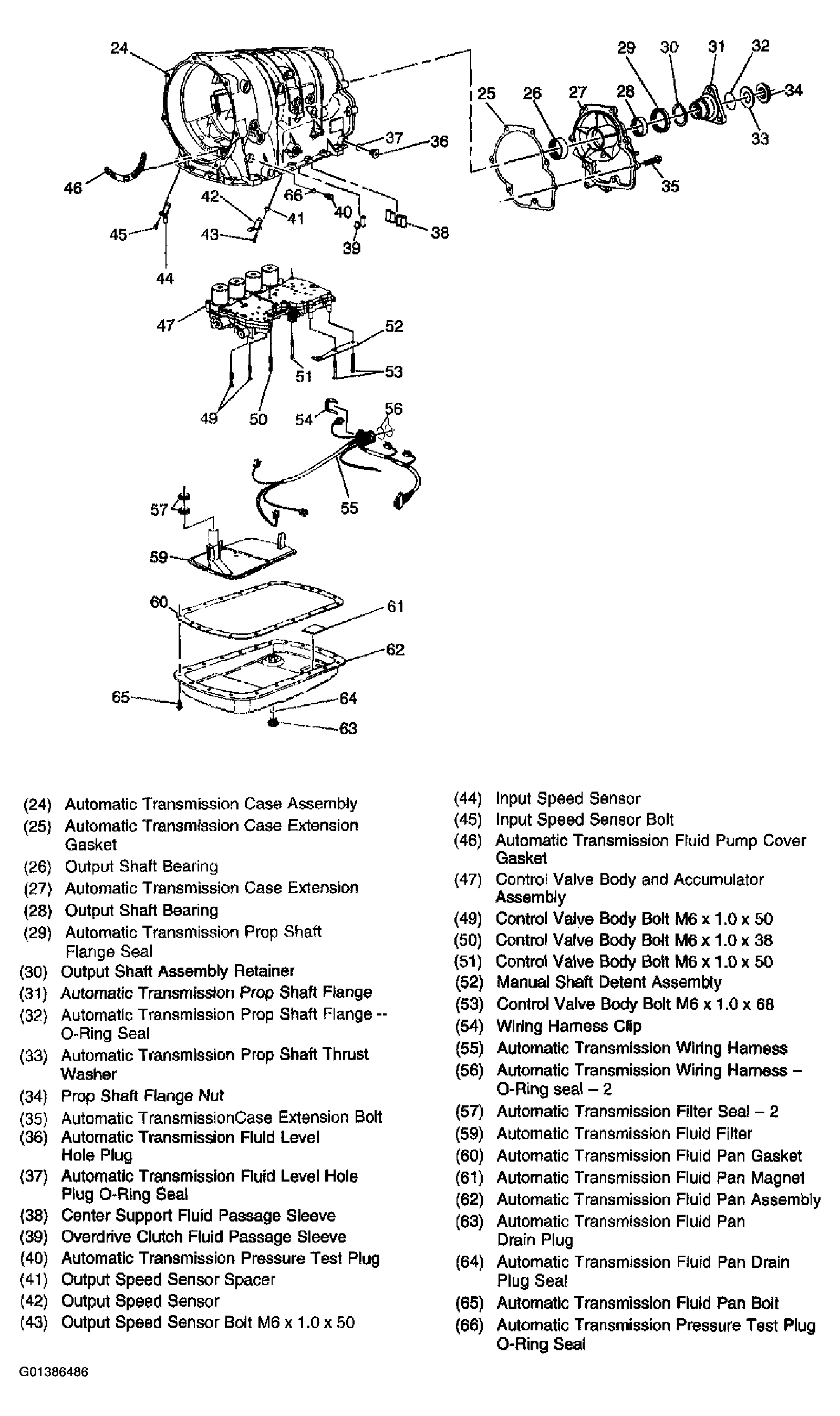

Fig 2: Case & Associated Parts (2 Of 2) Disassembled View
Courtesy of GENERAL MOTORS CORP.

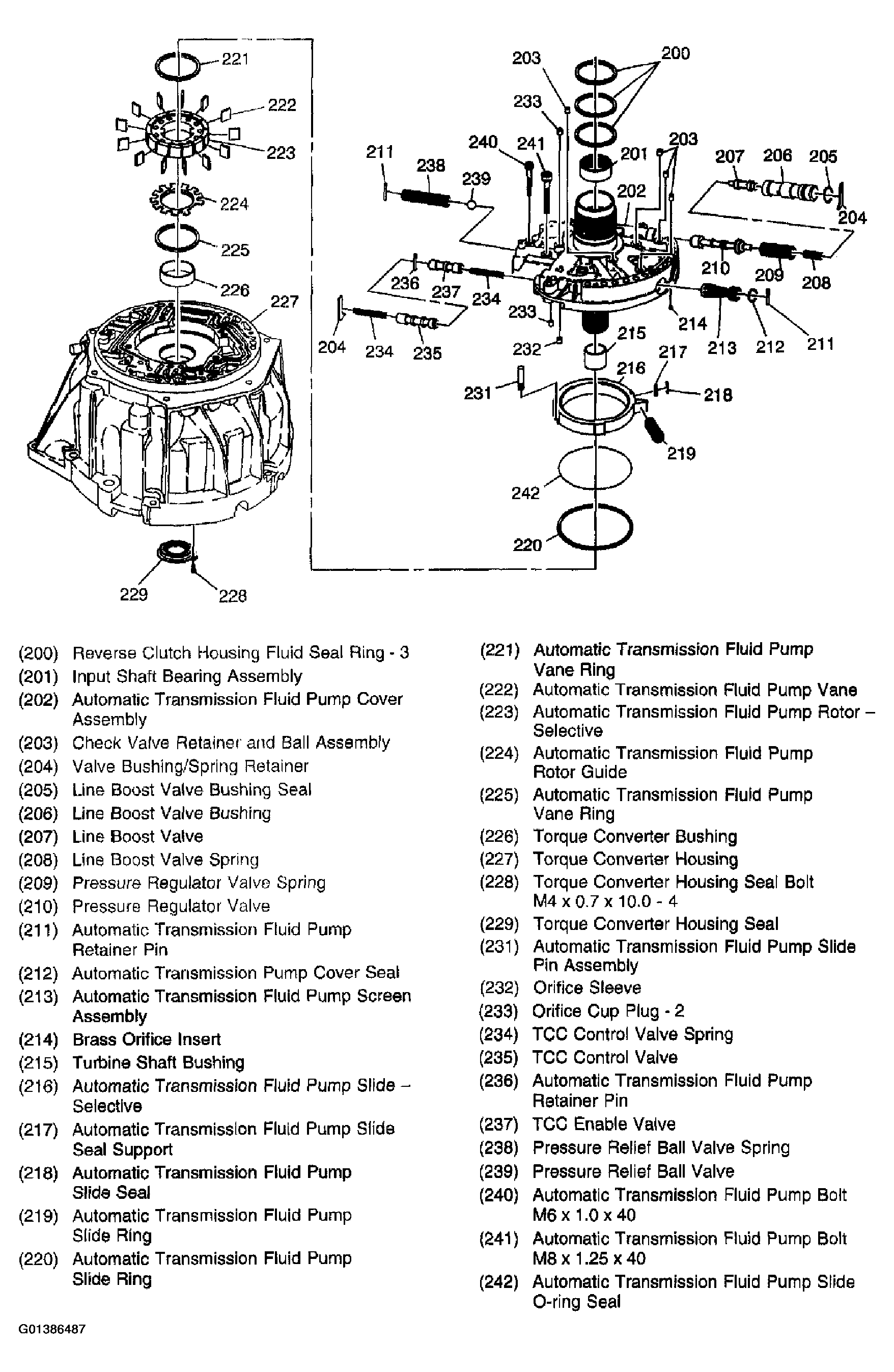

Fig 3: Fluid Pump Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

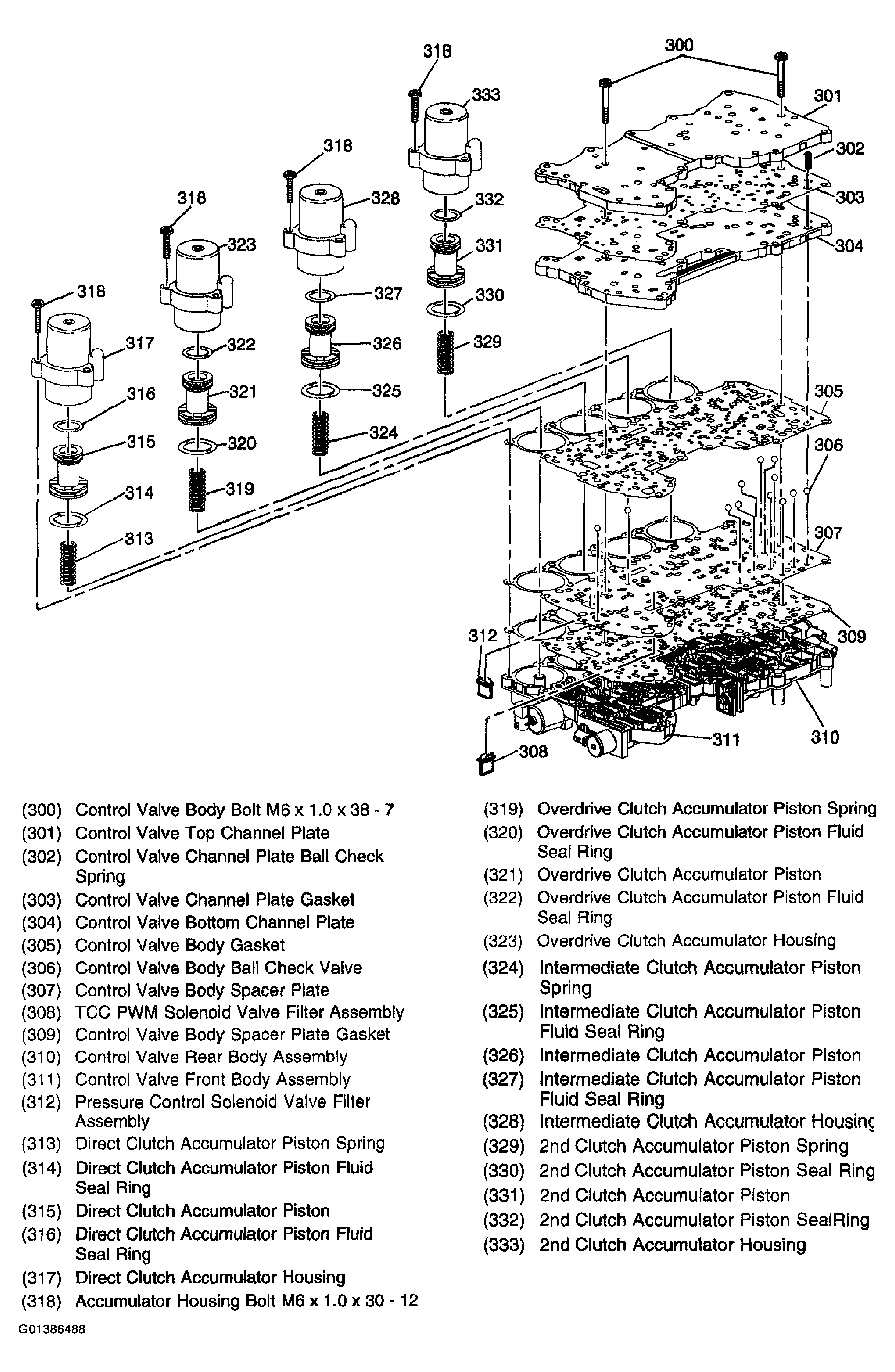

Fig 4: Control Valve Body & Accumulator Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

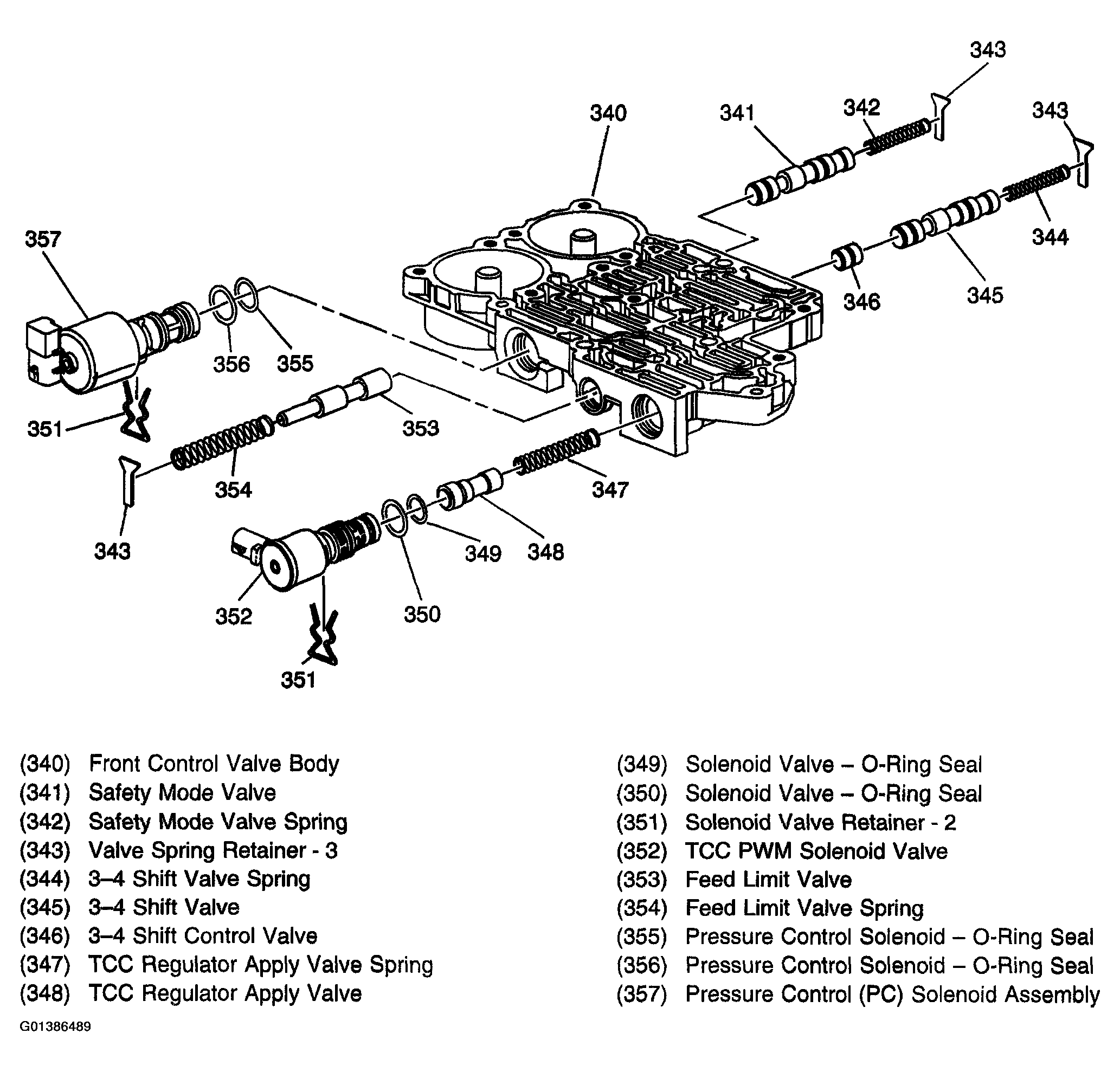

Fig 5: Front Control Valve Body Disassembled View
Courtesy of GENERAL MOTORS CORP.

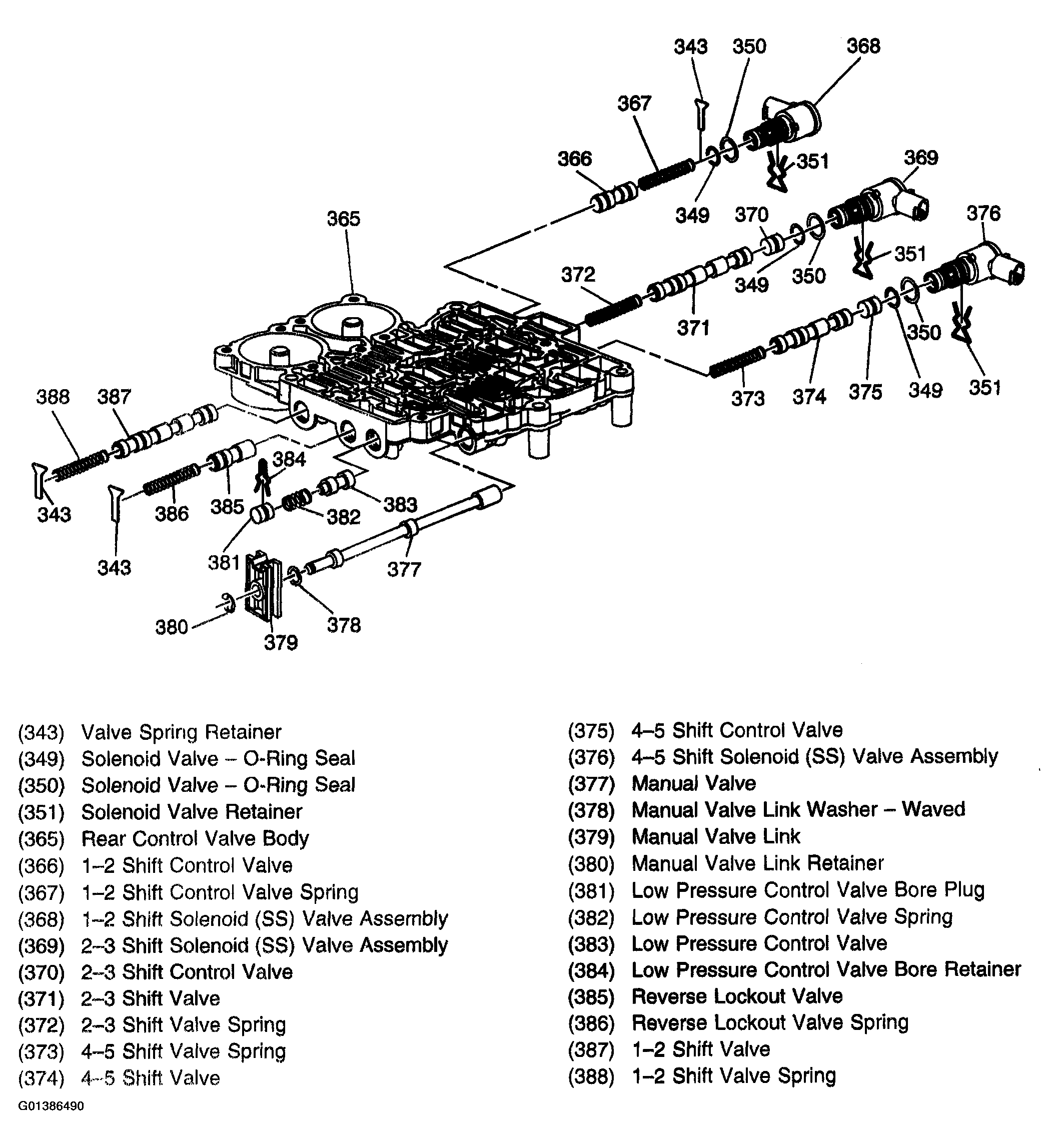

Fig 6: Rear Control Valve Body Disassembled View
Courtesy of GENERAL MOTORS CORP.

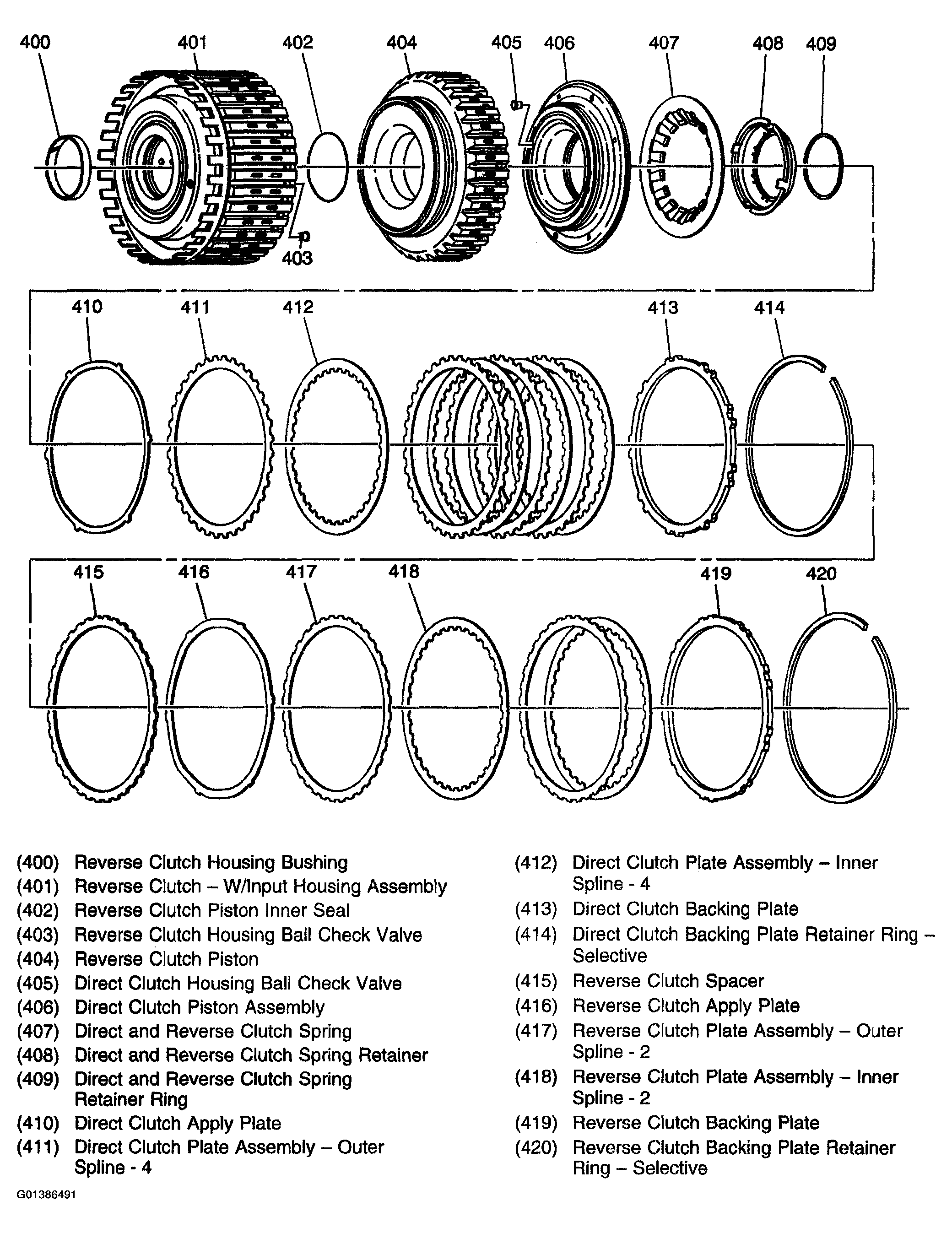

Fig 7: Direct & Reverse Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

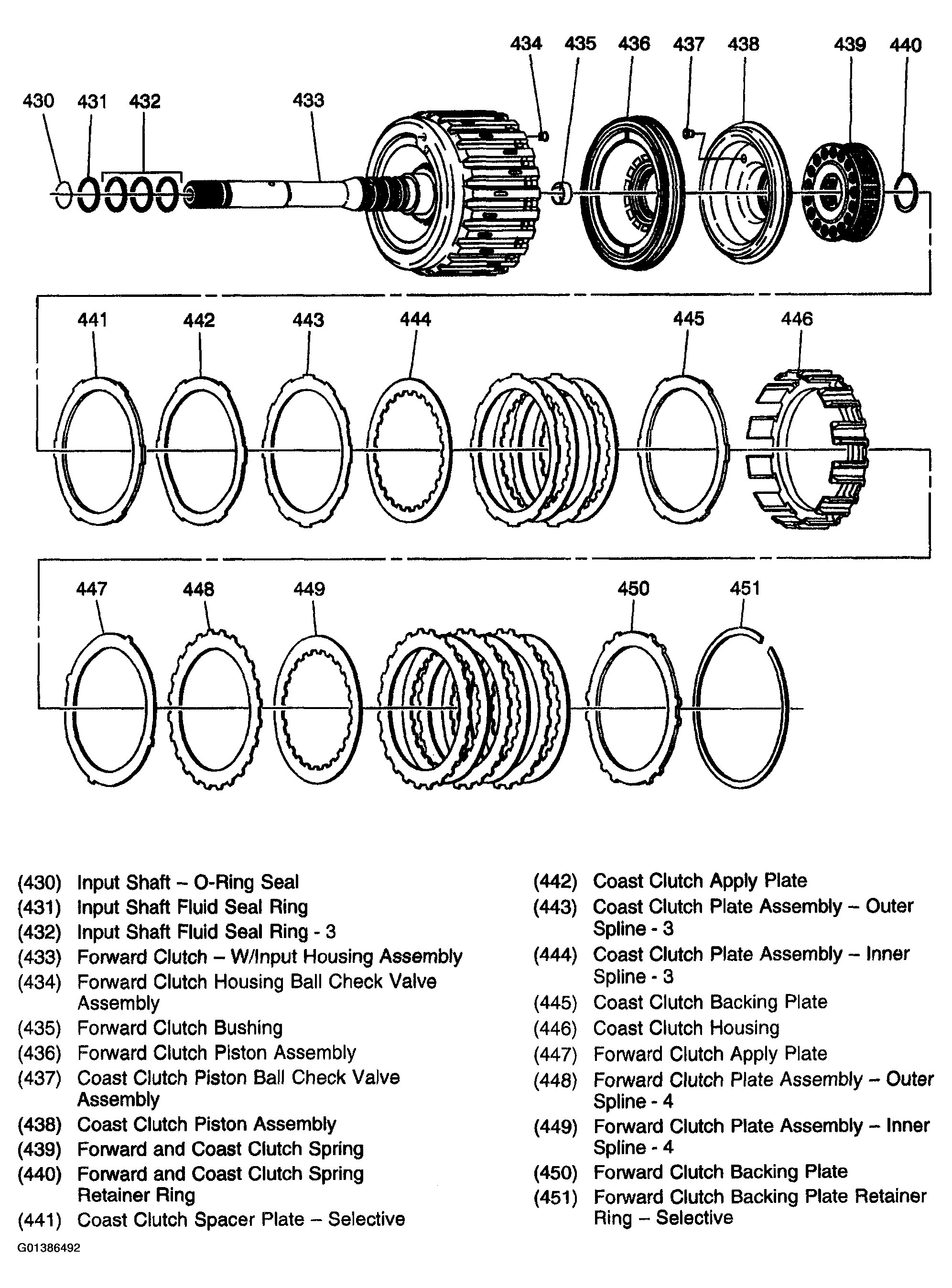

Fig 8: Forward & Coast Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

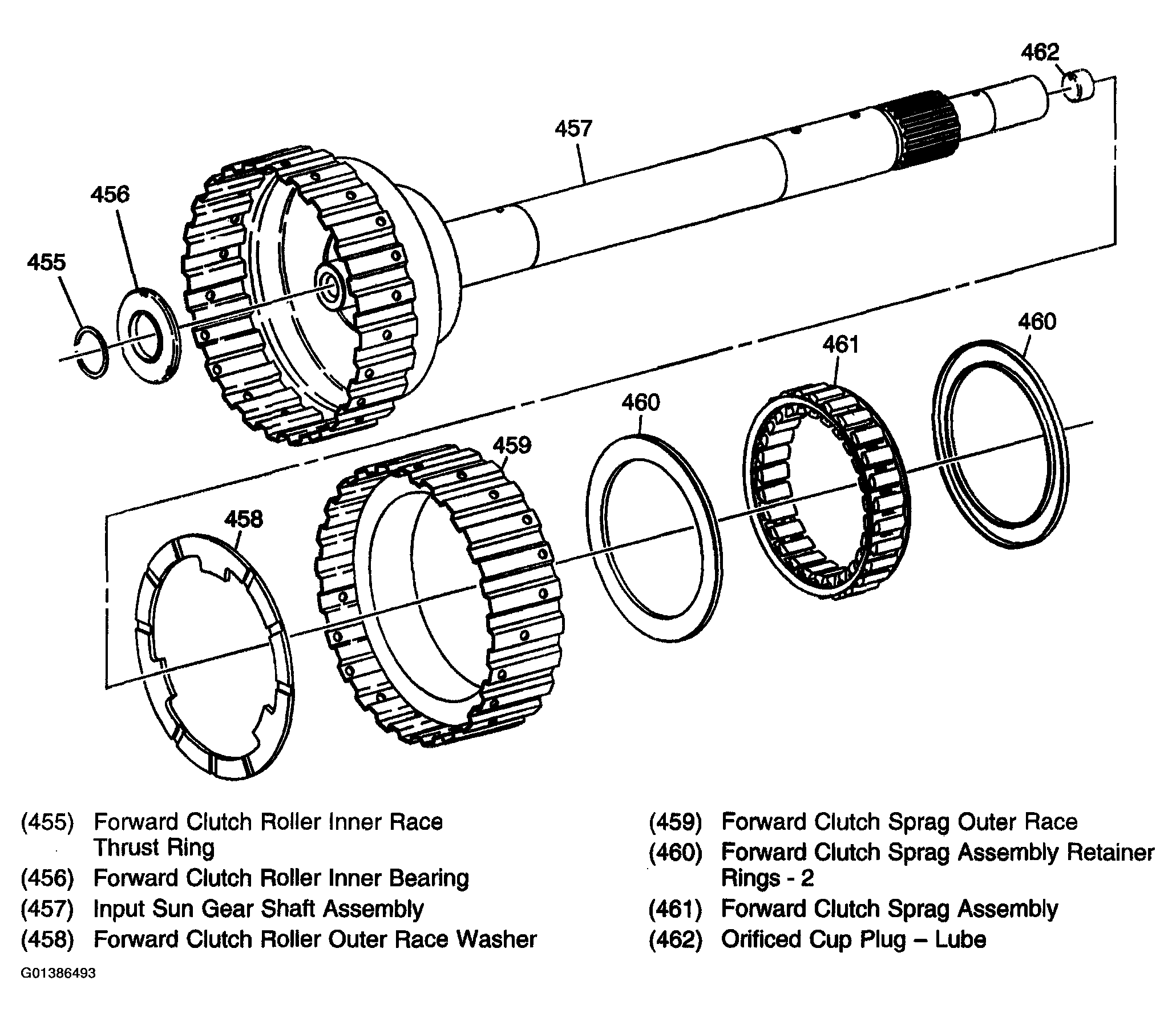

Fig 9: Input Sun Gear Shaft & Forward Sprag Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

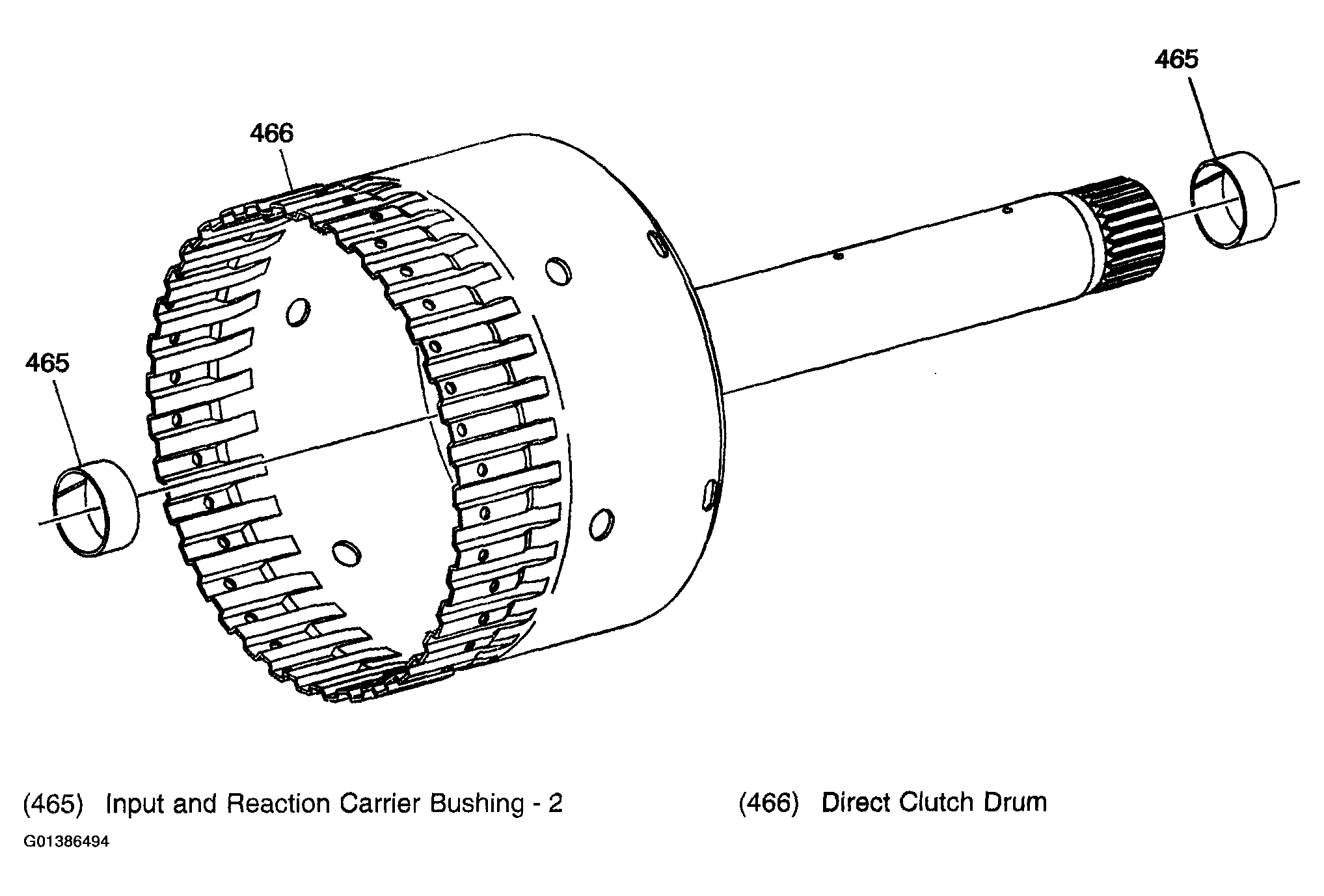

Fig 10: Direct Clutch Drum & Shaft Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

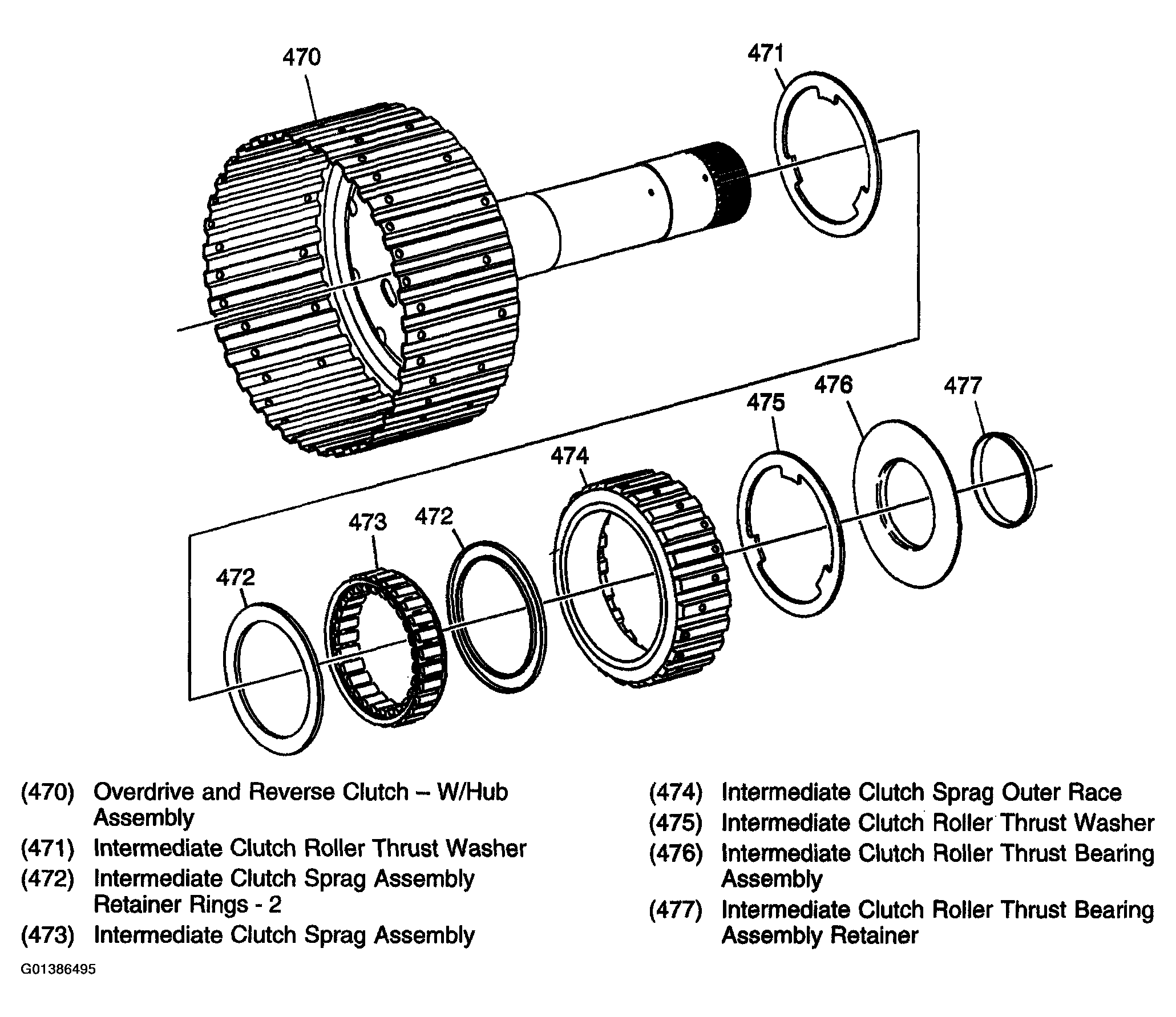

Fig 11: Intermediate Sprag Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

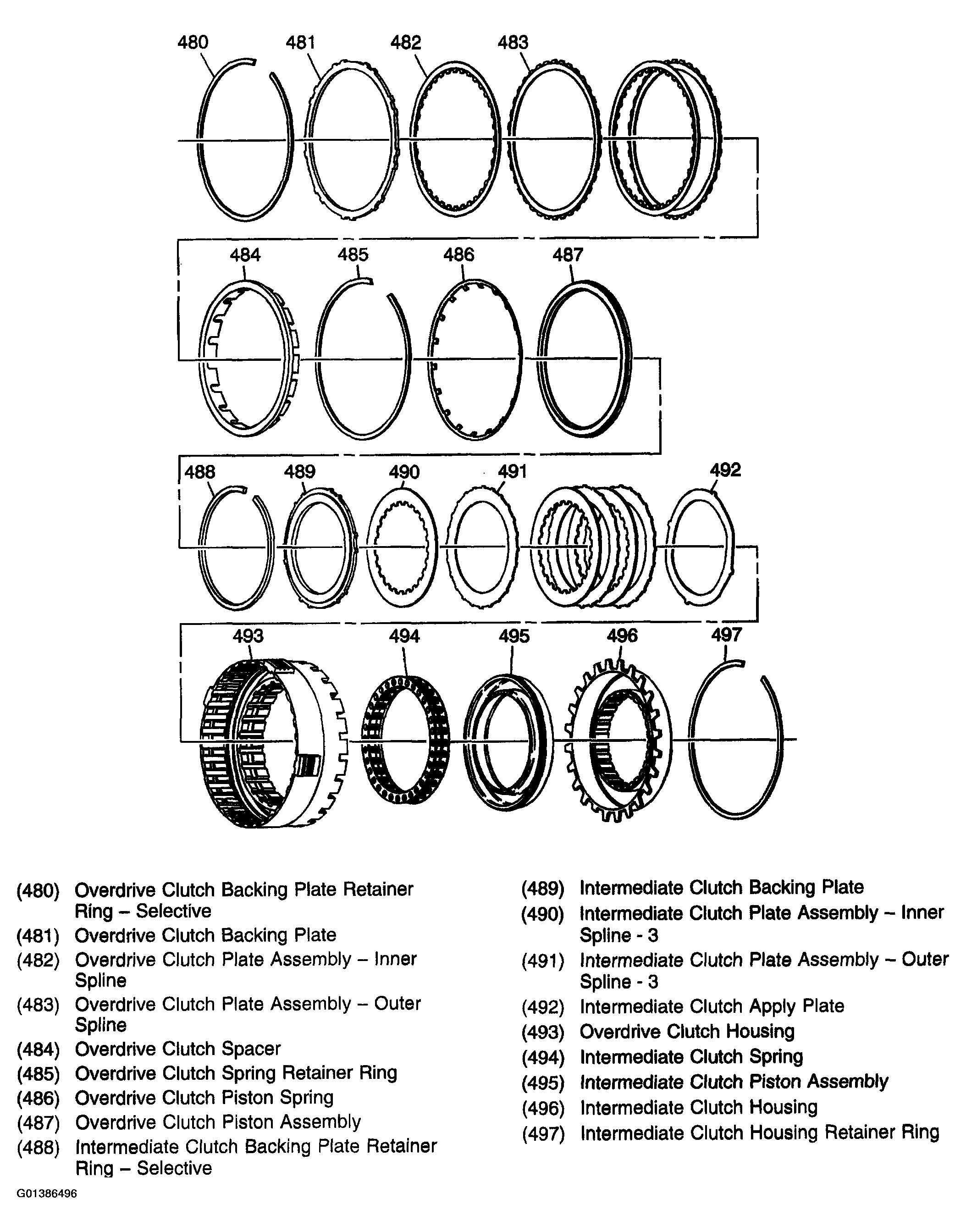

Fig 12: Overdrive & Intermediate Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

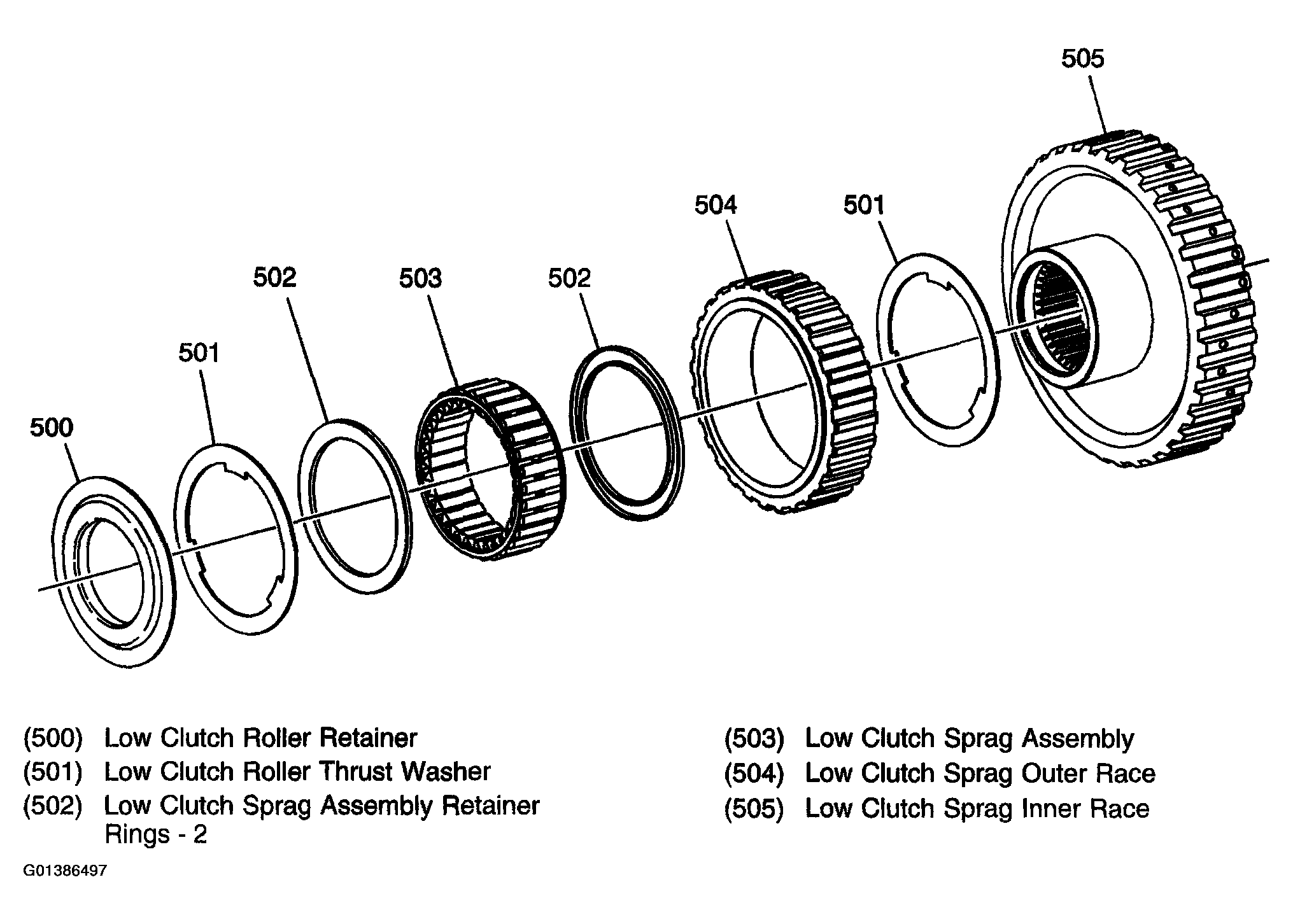

Fig 13: Low Clutch Sprag Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

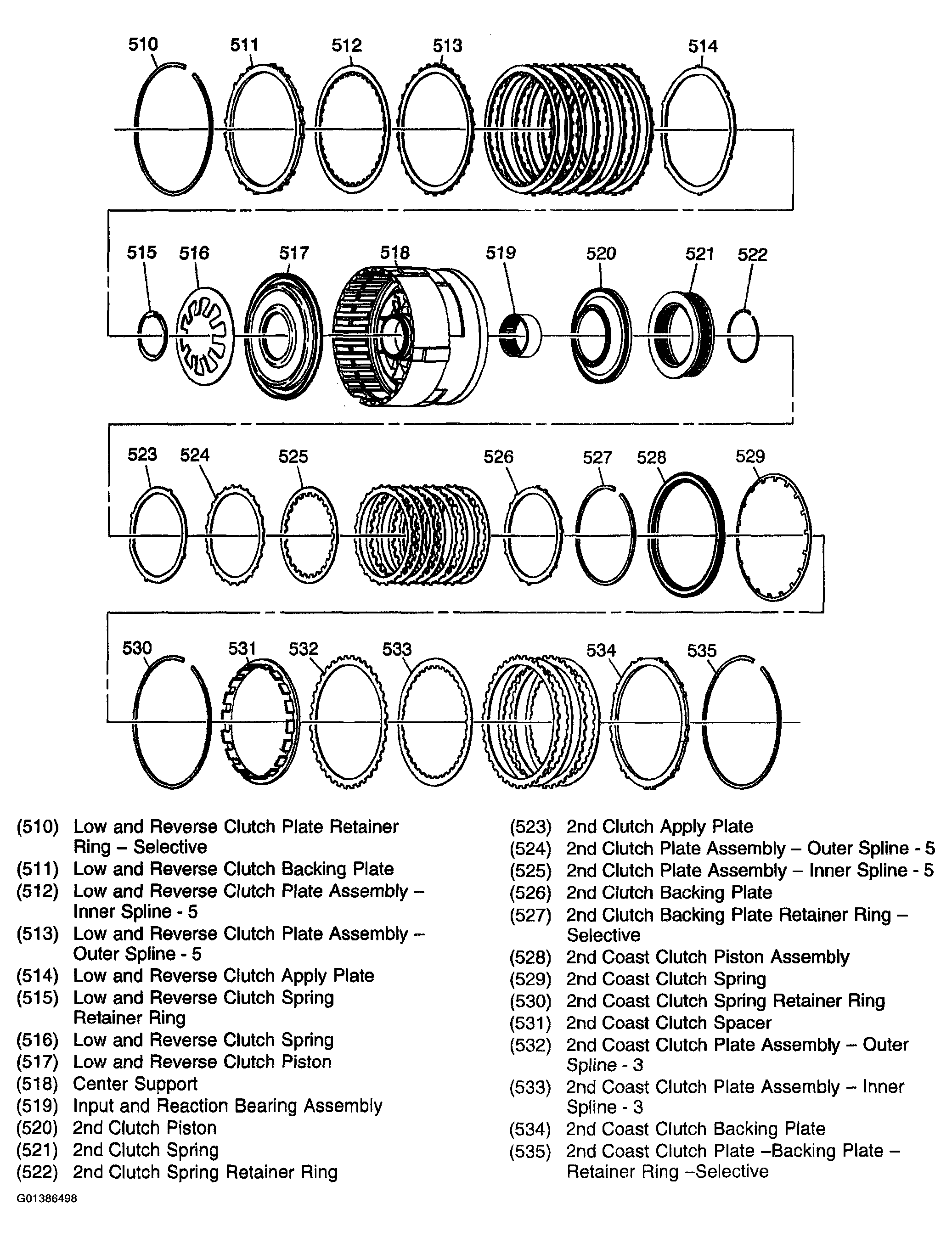

Fig 14: Center Support Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

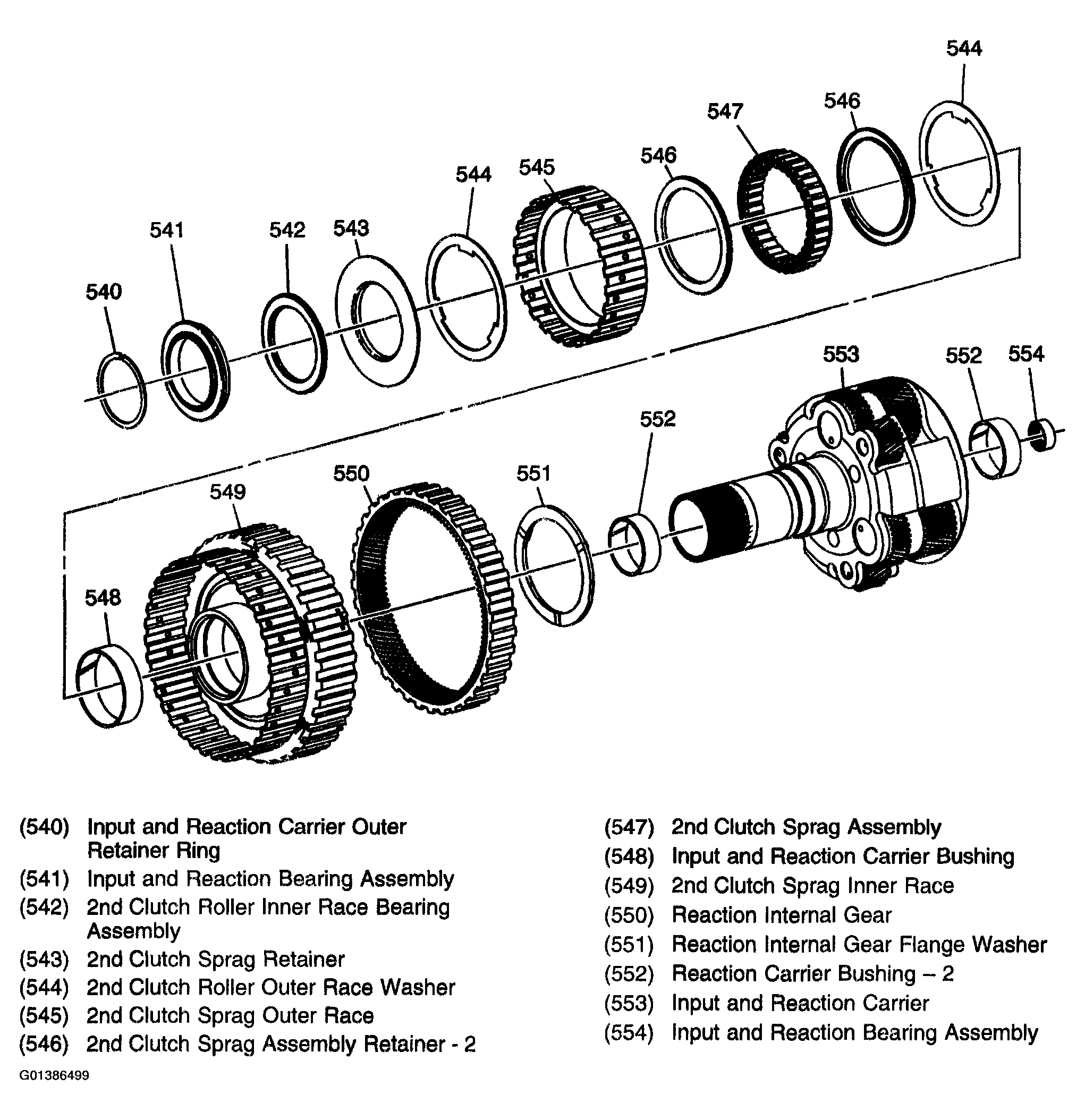

Fig 15: Planetary Carrier Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

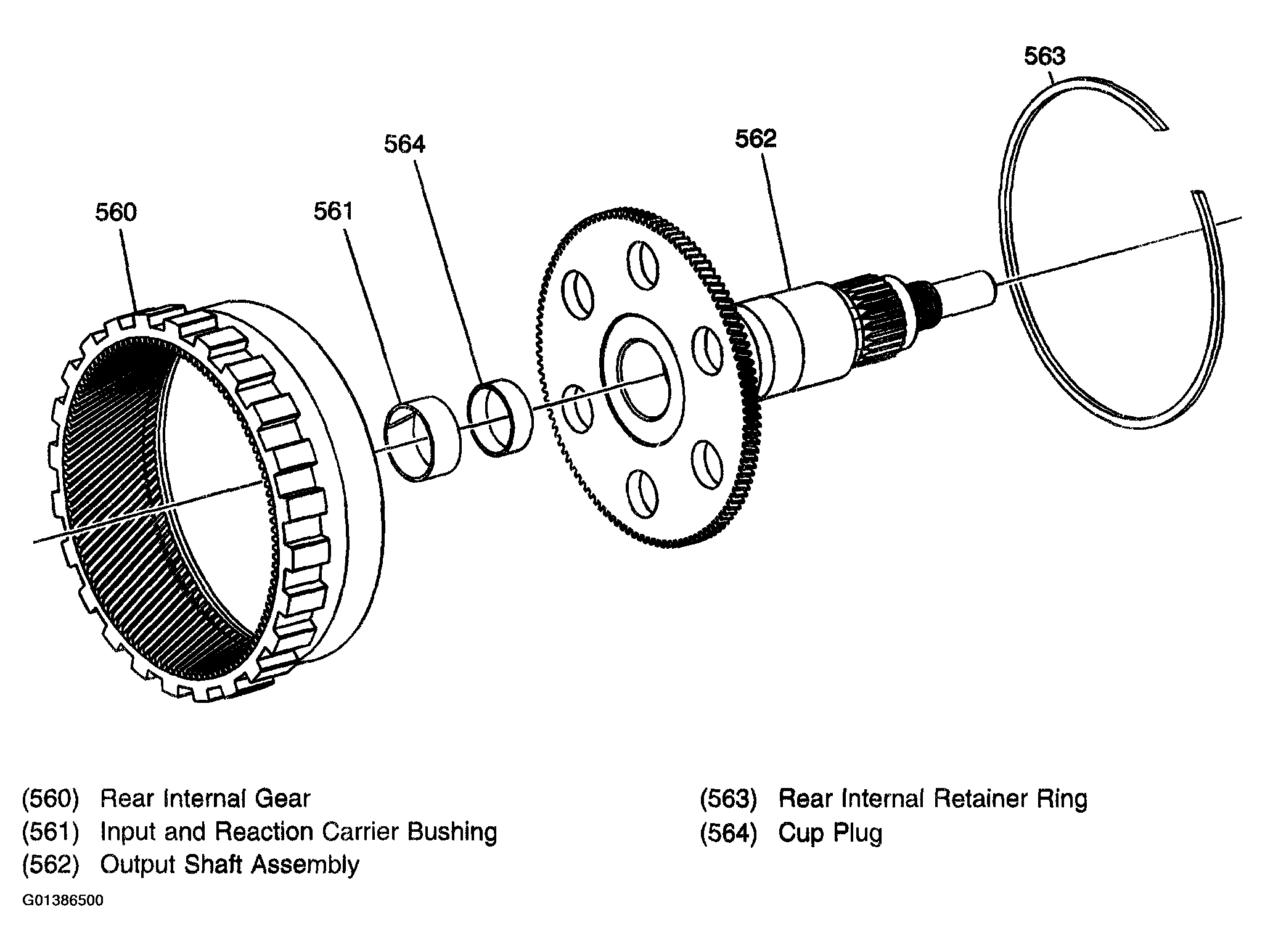

Fig 16: Rear Internal Gear Output Shaft Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

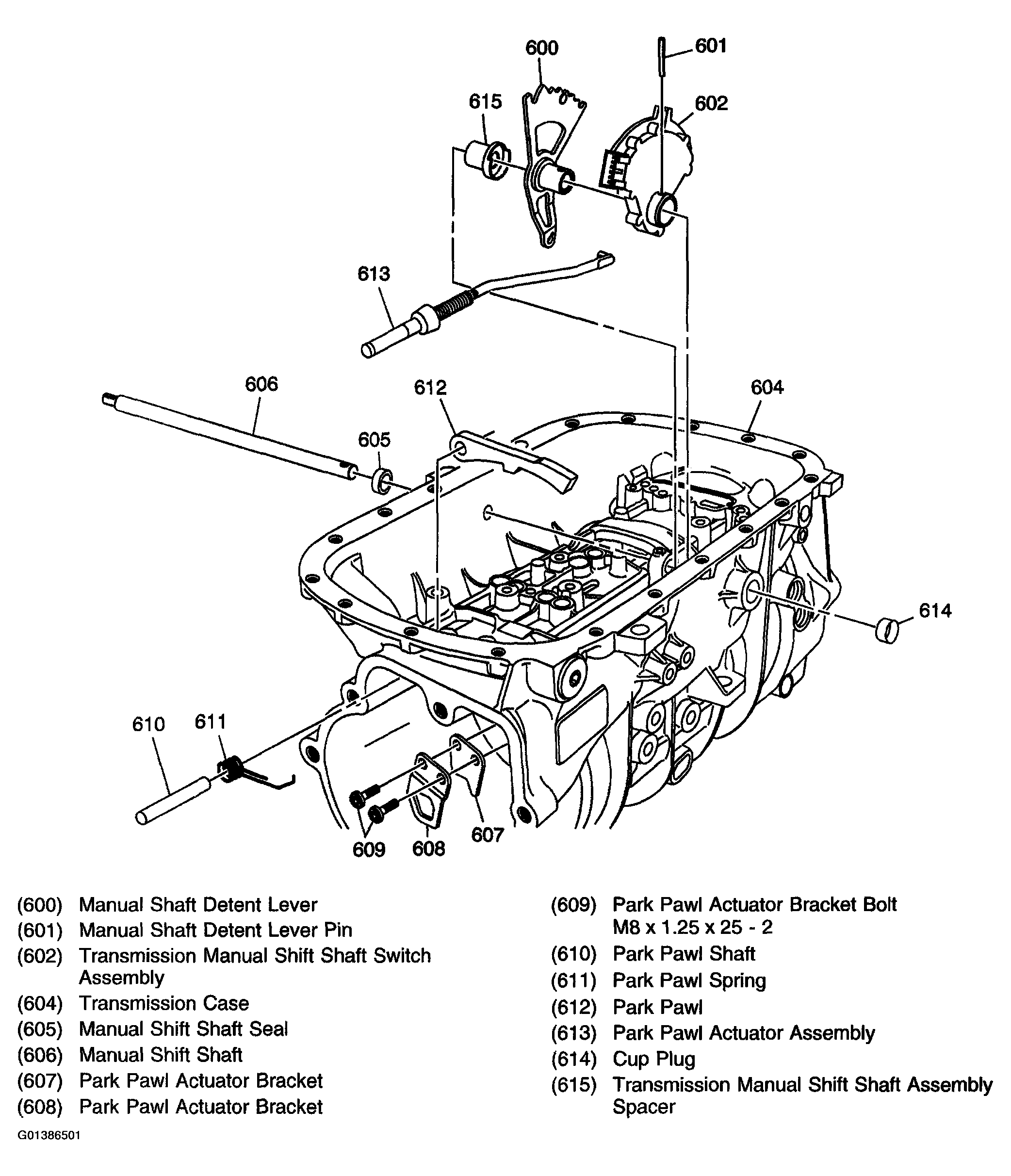

Fig 17: Park Pawl Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.
