Input Speed Sensor Installation

  1. Rotate the transmission 90 degrees.
  2. Install the input speed sensor (44) into the case (24).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the input speed sensor bolt (45) into the case (24).

    Tighten

    1. Tighten the input speed sensor bolt (45) to 11 N.m (8 lb ft).

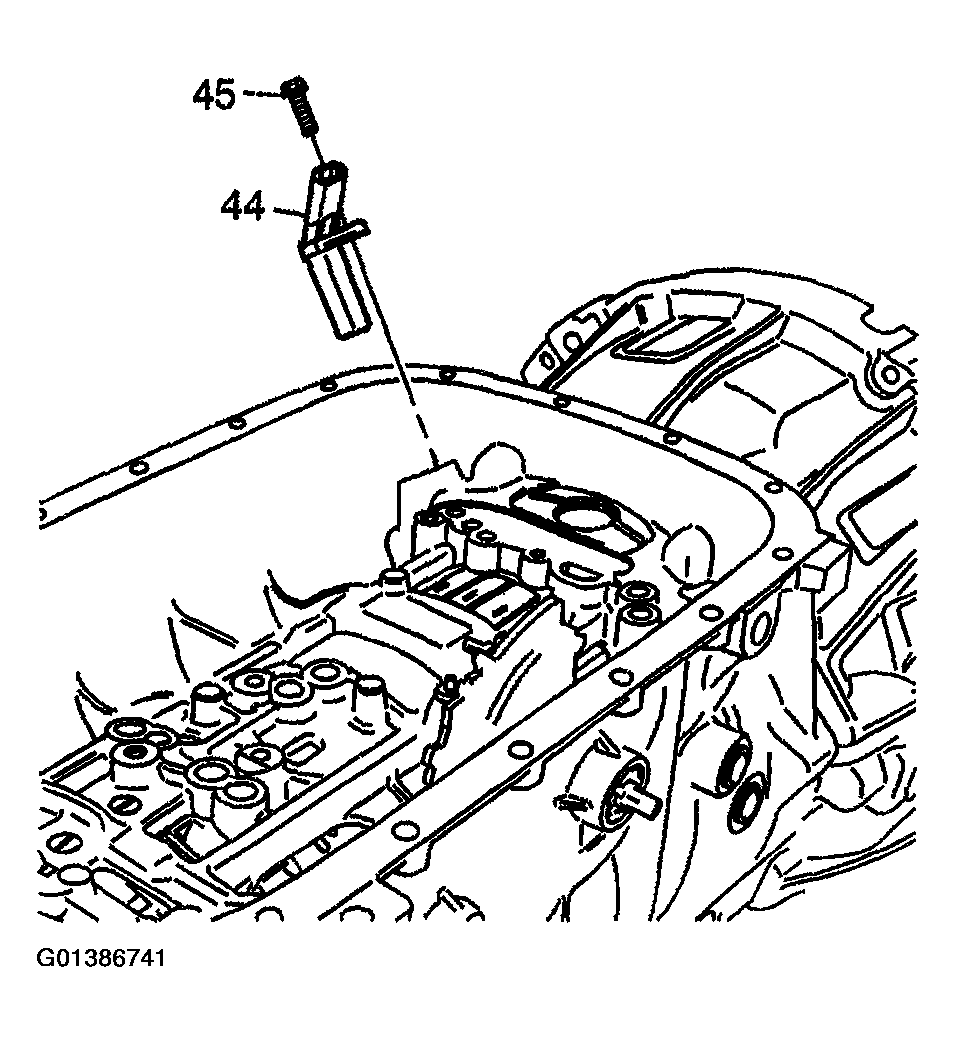

    Fig 1: Installing Input Speed Sensor & Bolt
    G01386741Courtesy of GENERAL MOTORS CORP.
