Automatic Transmission - 5L40-E (Unit Repair)
>>
Specification
>>
Fluid Pump Specifications
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fluid Pump Specifications

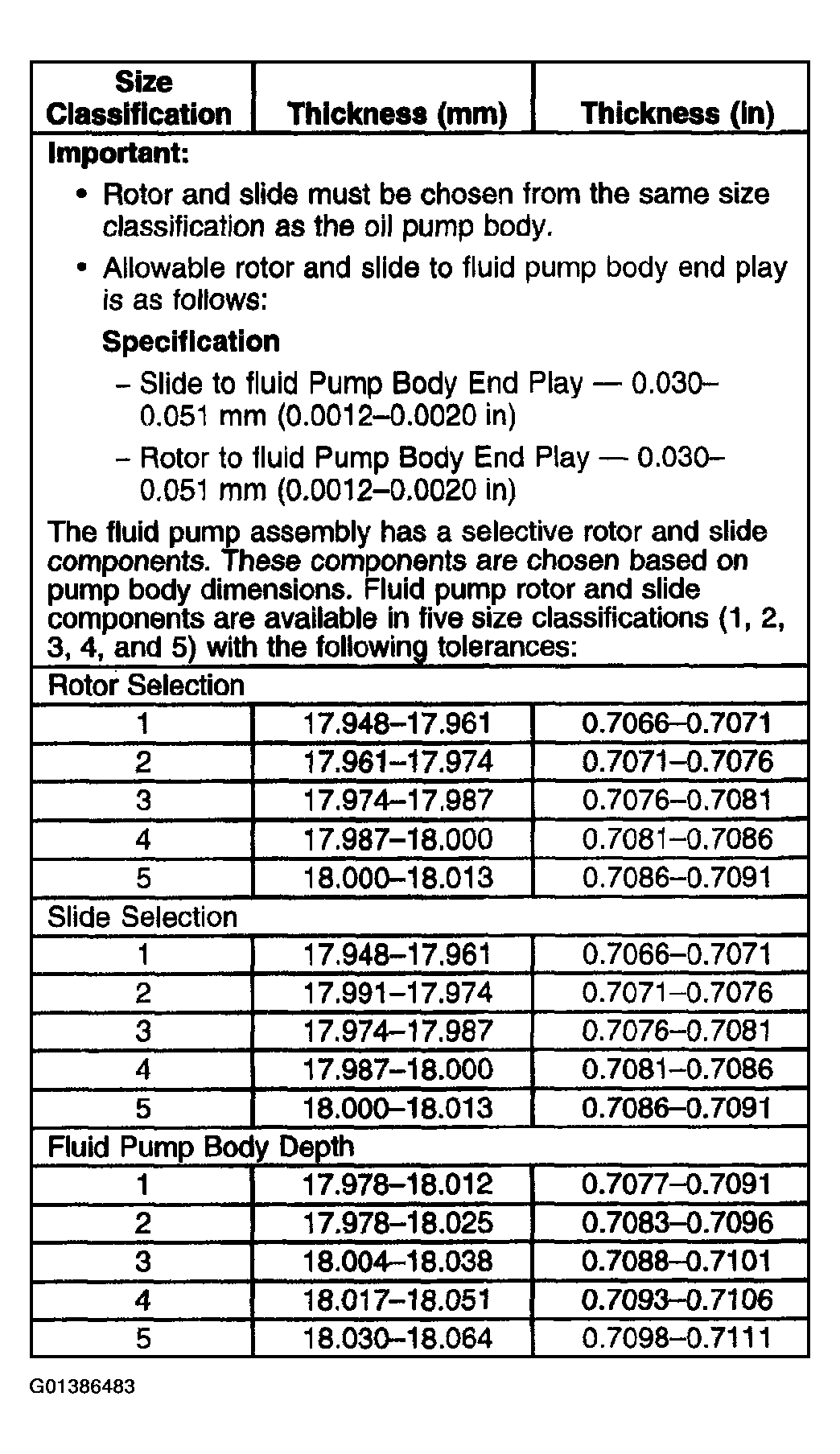

Fig 1: Fluid Pump Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
