Power Seat Systems Component Views

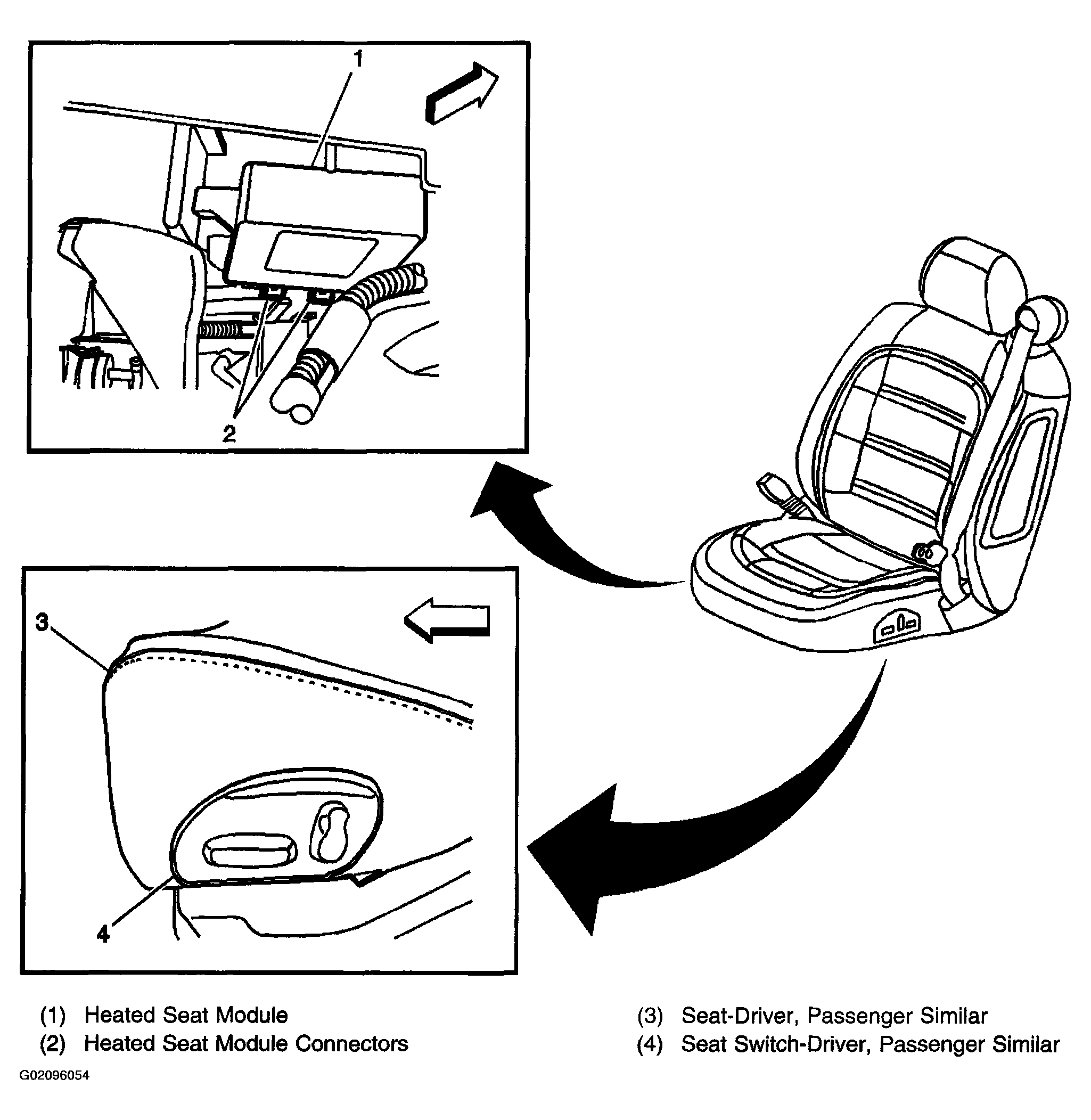

Fig 1: Identifying Heated Seat Module And Seat Switch
G02096054Courtesy of GENERAL MOTORS CORP.

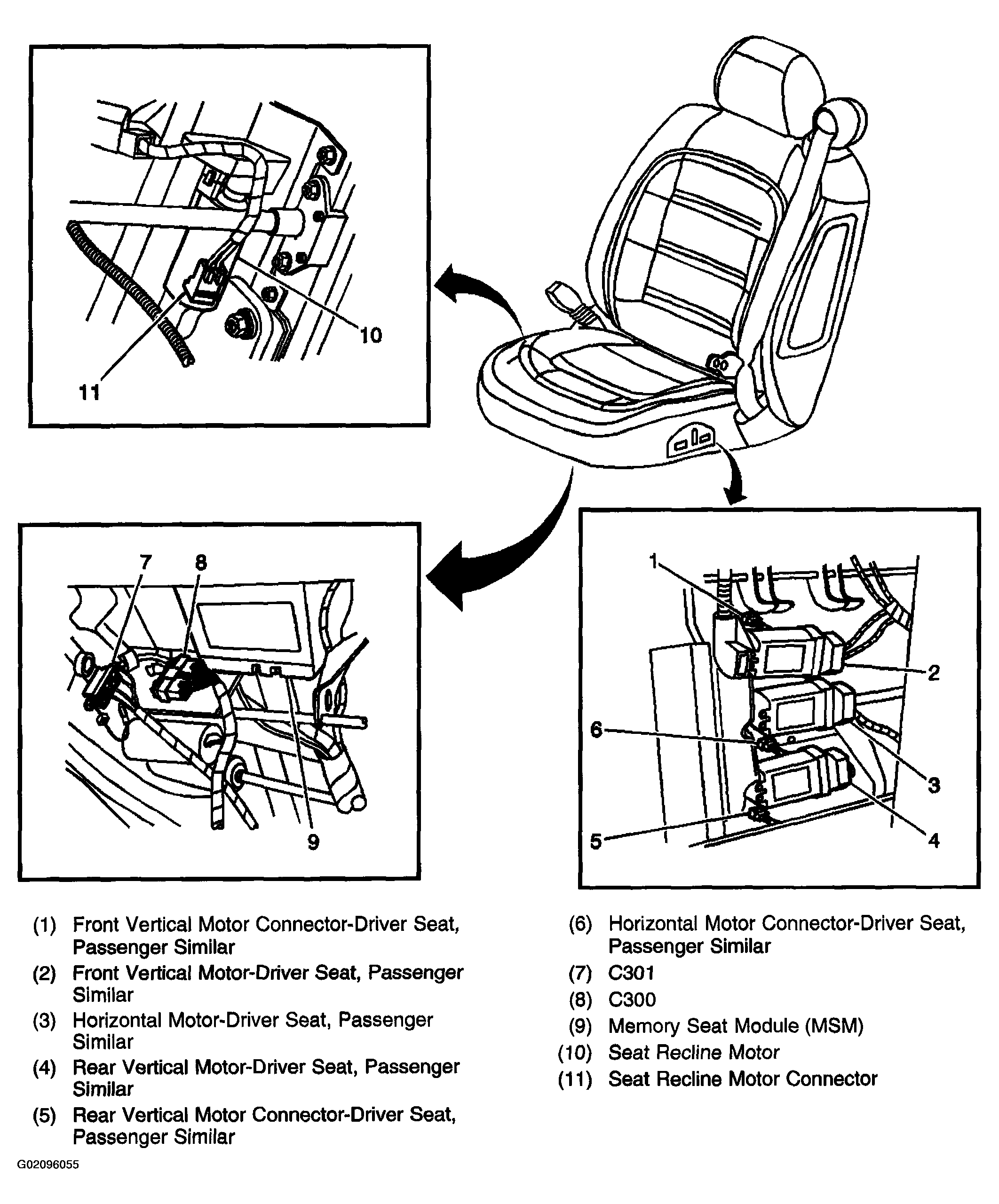

Fig 2: Identifying Seat Motors And MSM
G02096055Courtesy of GENERAL MOTORS CORP.
