Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices
  1. Remove the front seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT
  2. Disconnect the electrical connector from the heated seat module.
  3. Remove the heated seat module screws (2) and remove the module.

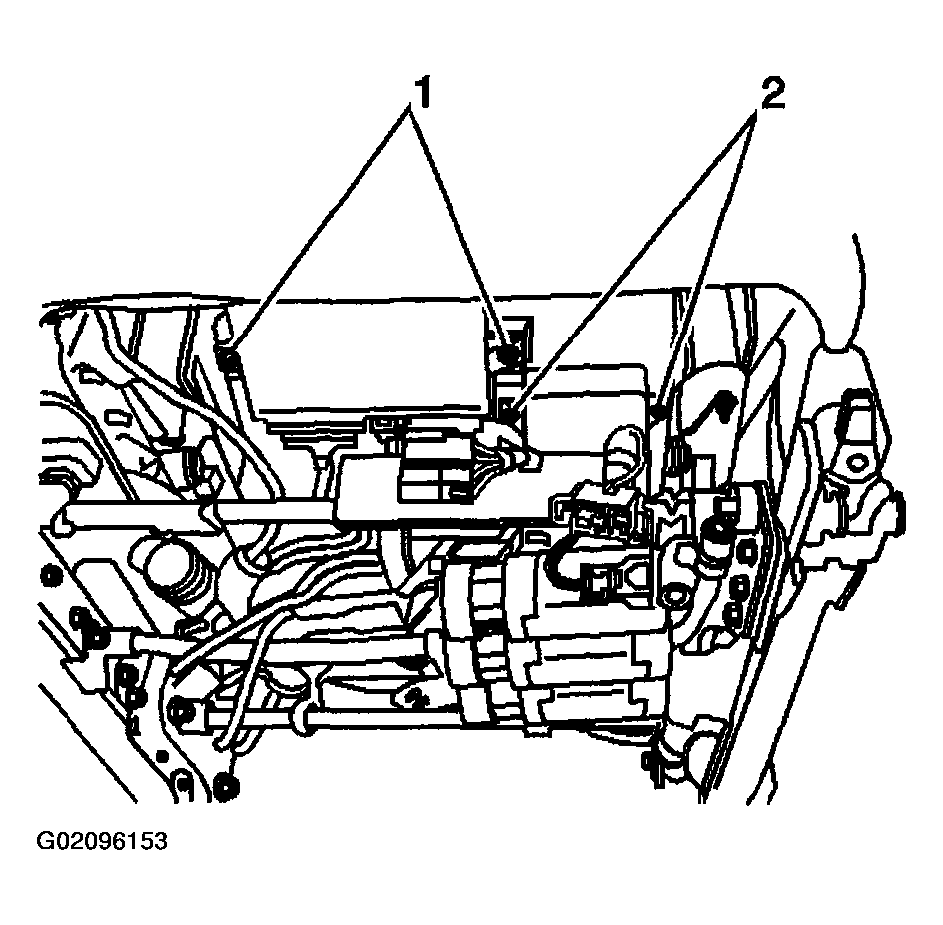

    Fig 1: Removing Heated Seat Module Screws And Module
    G02096153Courtesy of GENERAL MOTORS CORP.
