Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

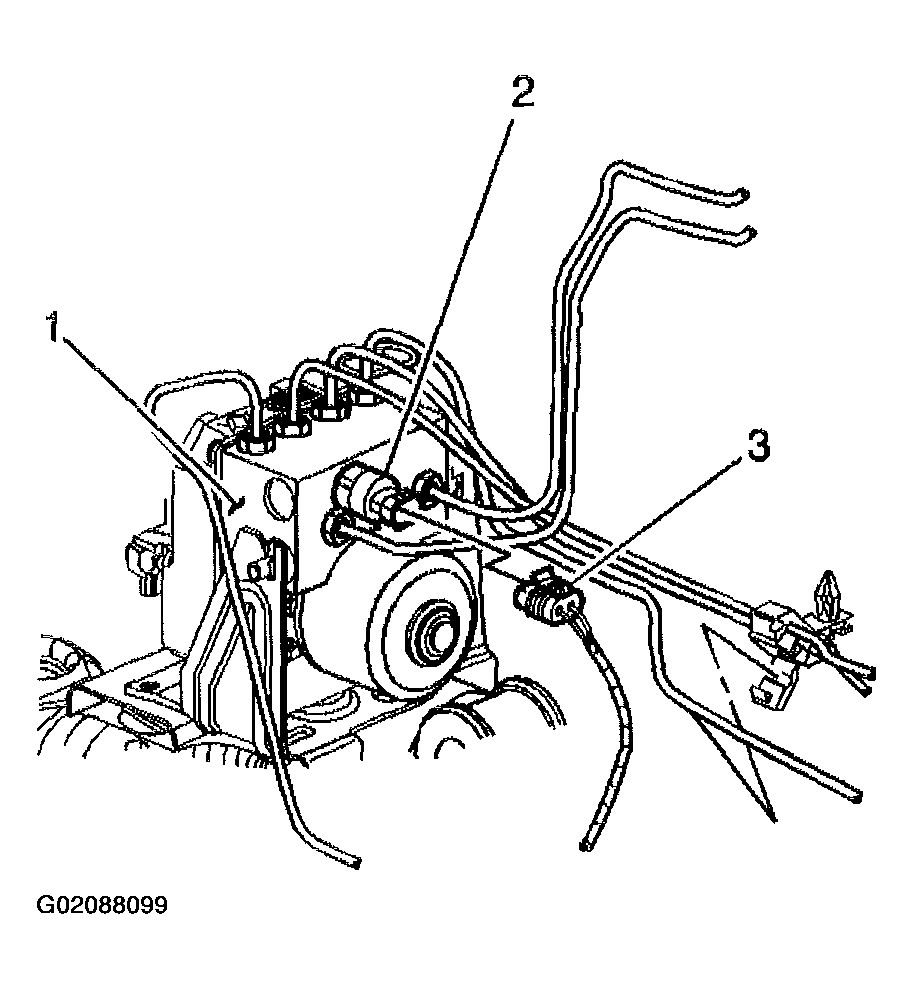

- Install the brake fluid pressure sensor (2) to the EBCM (1).
Tighten
Tighten the brake fluid pressure sensor to 17 N.m (13 lb ft).
- Connect the brake fluid pressure sensor electrical connector (3) to the brake fluid pressure sensor (2).
- Fill and bleed the hydraulic brake system. Refer to MASTER CYLINDER RESERVOIR FILLING and MANUAL BLEEDING PROCEDURE or PRESSURE BLEEDING PROCEDURE in Hydraulic Brakes.
- Perform the Auto Bleed Procedure. Refer to ABS AUTOMATED BLEED PROCEDURE .
- Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .
