Horns Connector End Views

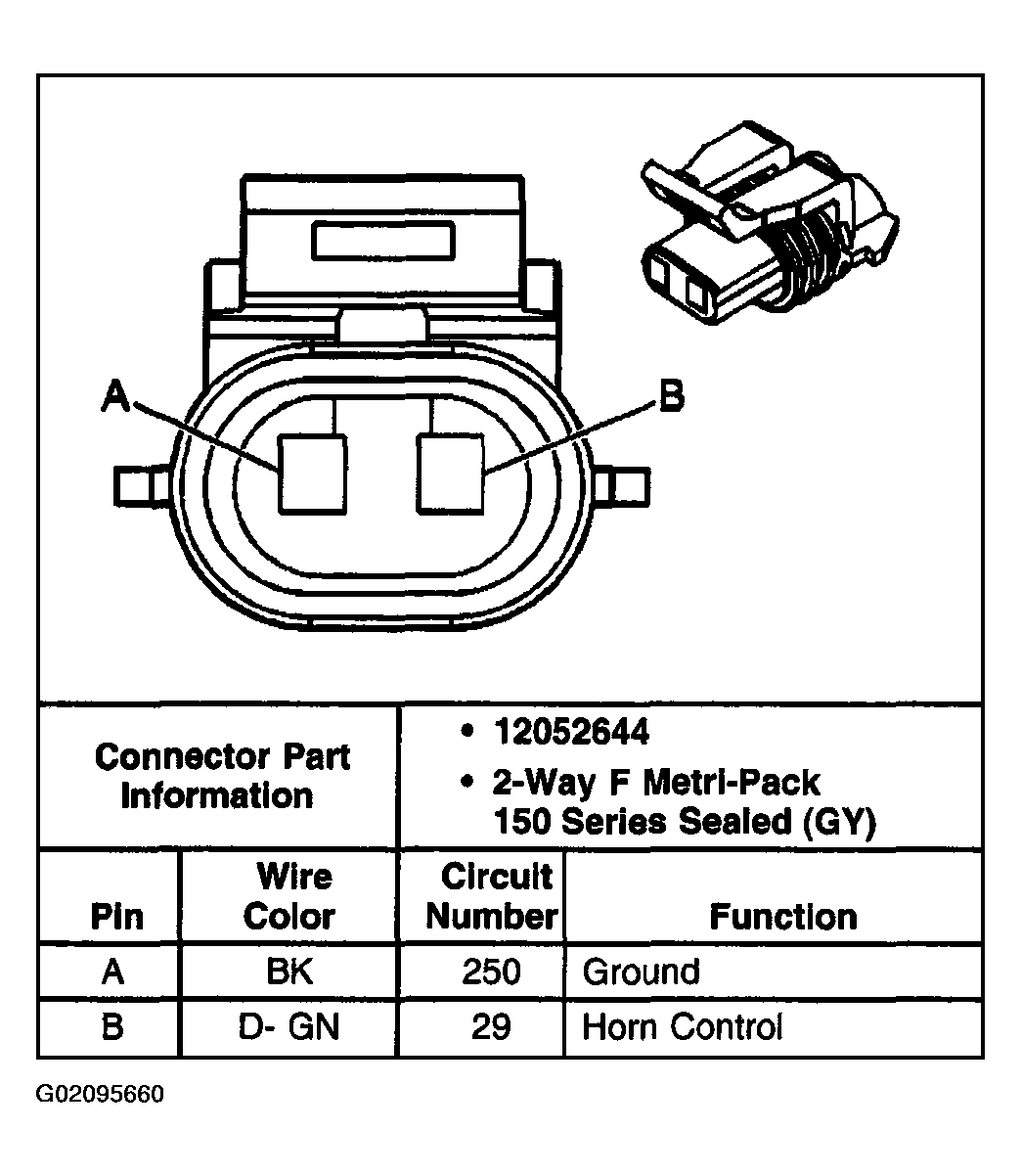

Fig 1: Dual Horn Connector End View
G02095660Courtesy of GENERAL MOTORS CORP.
