A/C Refrigerant Pressure Sensor Connector End View

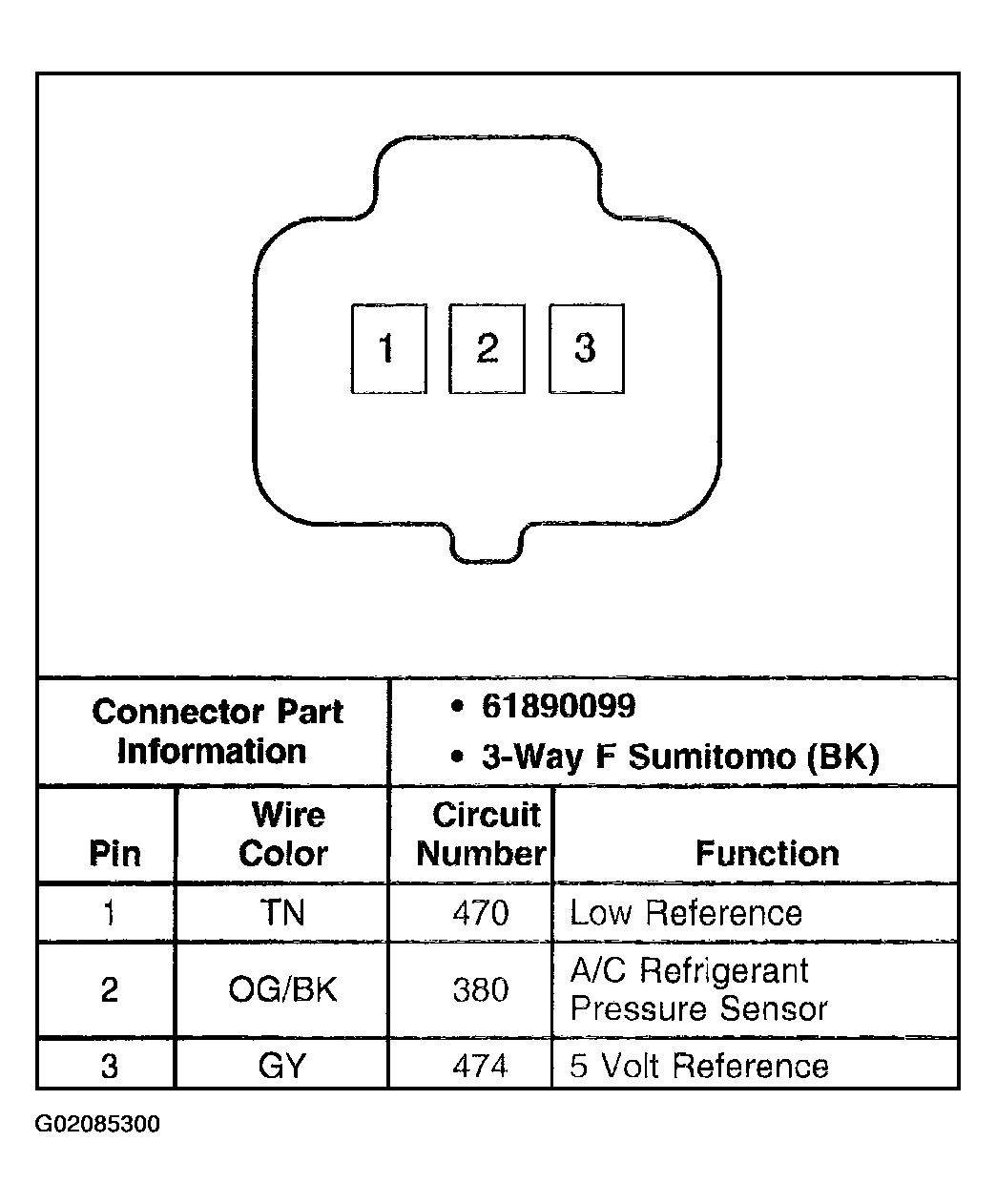

Fig 1: A/C Refrigerant Pressure Sensor
G02085300Courtesy of GENERAL MOTORS CORP.
