Data Link Communications Connector End View

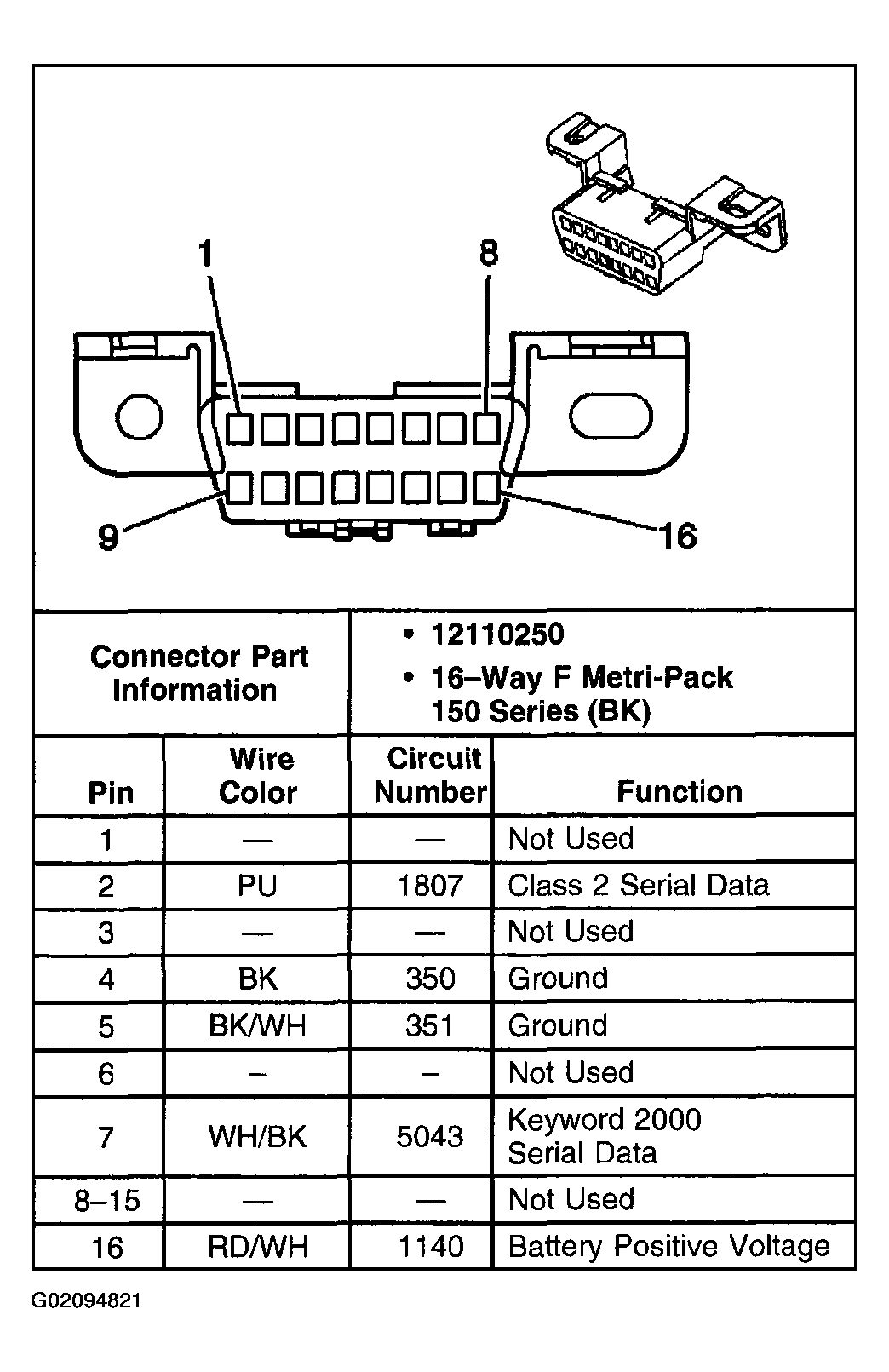

Fig 1: Data Link Communications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
