Inclination Sensor Connector End View

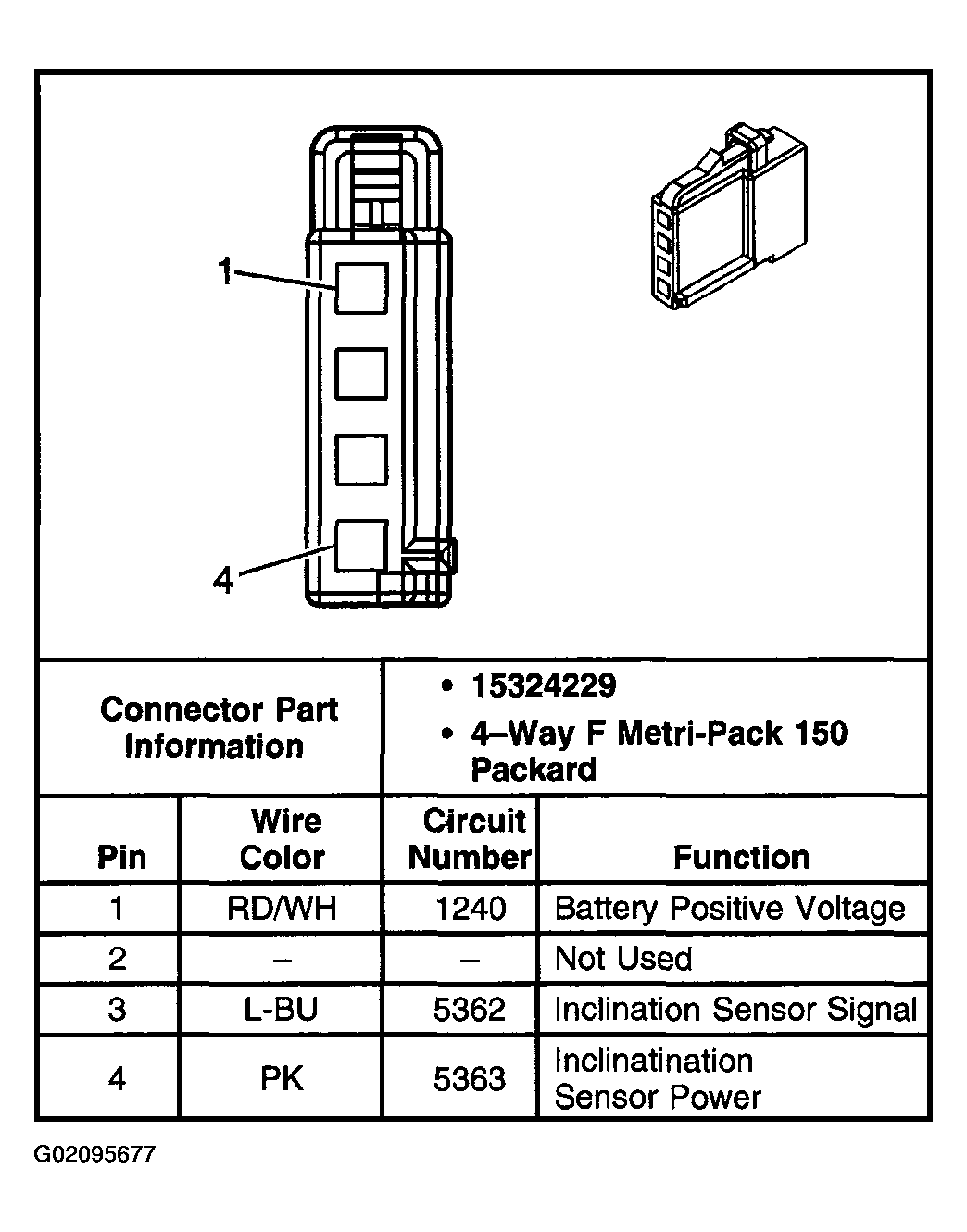

Fig 1: Inclination Sensor (Export W/ UA2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
