Windshield Washer Fluid Level Switch Connector End View

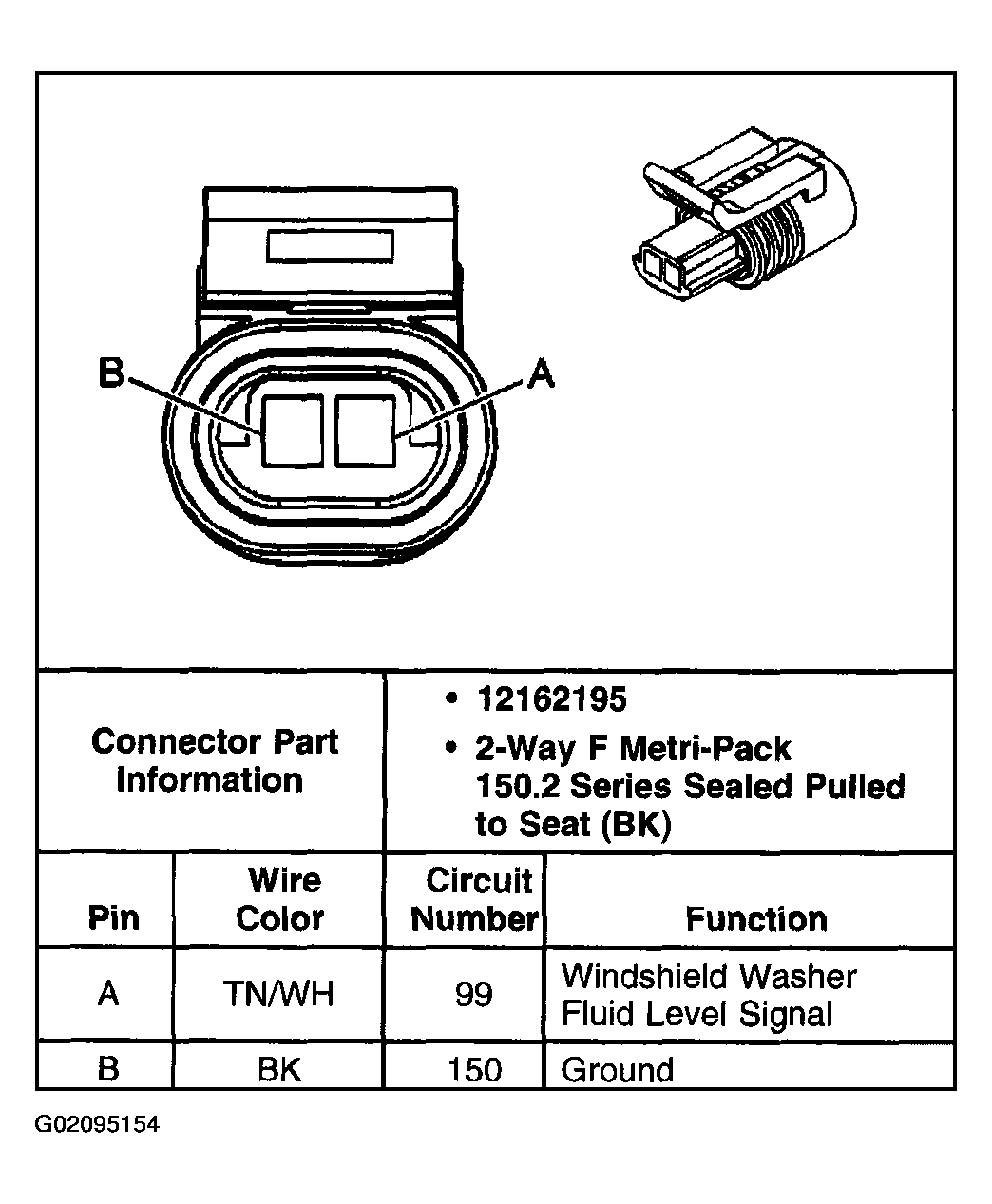

Fig 1: Windshield Washer Fluid Level Switch
G02095154Courtesy of GENERAL MOTORS CORP.
