Seat Belt Connector End Views

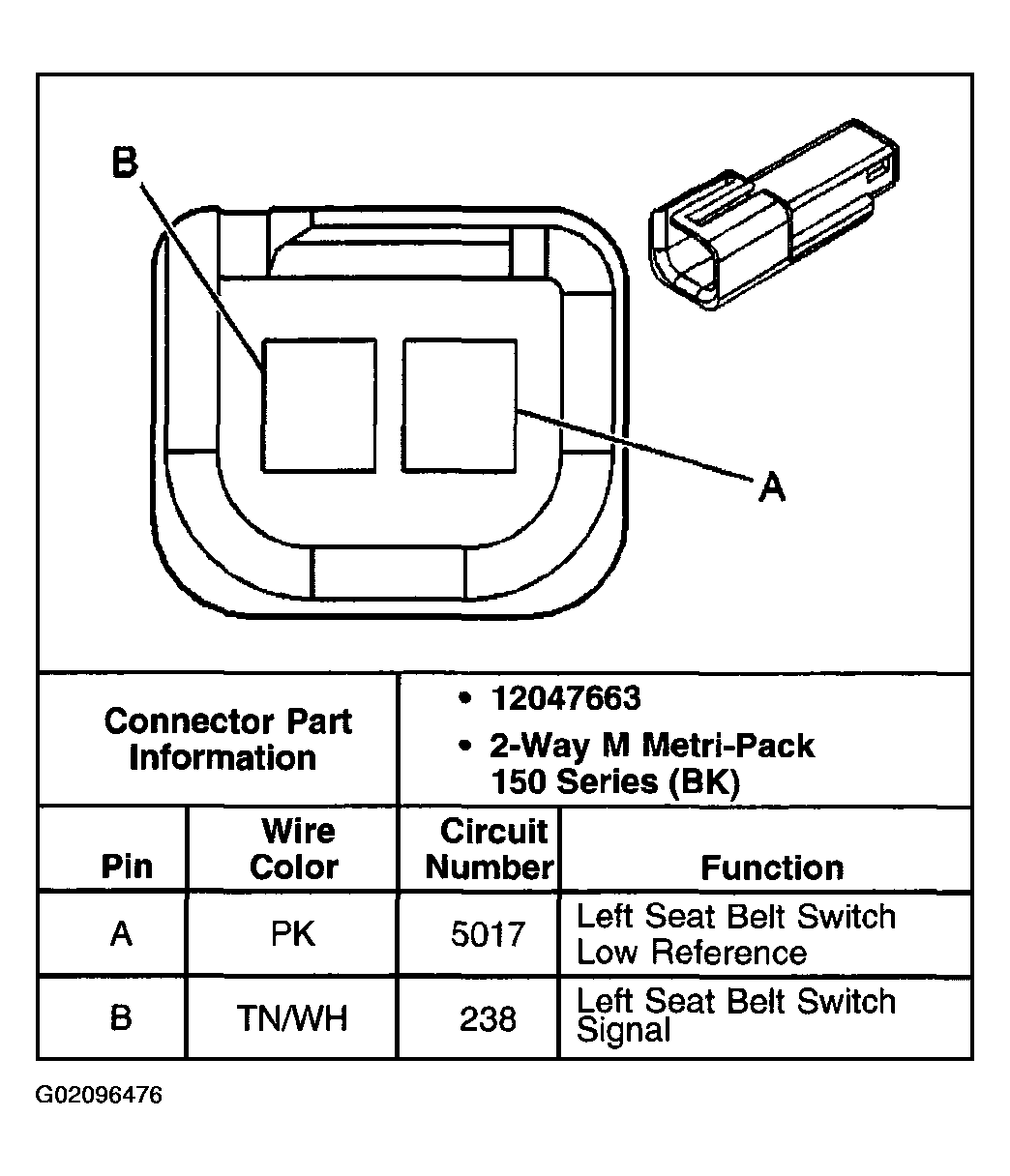

Fig 1: Identifying Seat Belt Switch Connector End View - Left
G02096476Courtesy of GENERAL MOTORS CORP.
