Schematic Wiring Diagrams

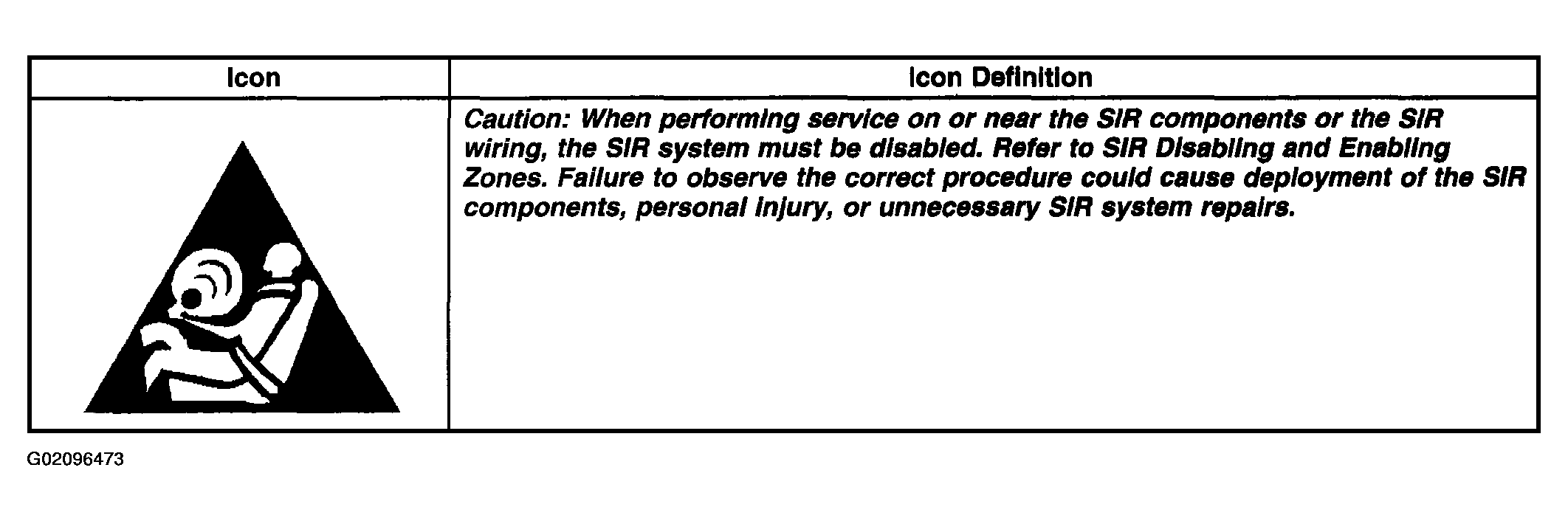

Fig 1: Seat Belt Schematic Icons
G02096473Courtesy of GENERAL MOTORS CORP.

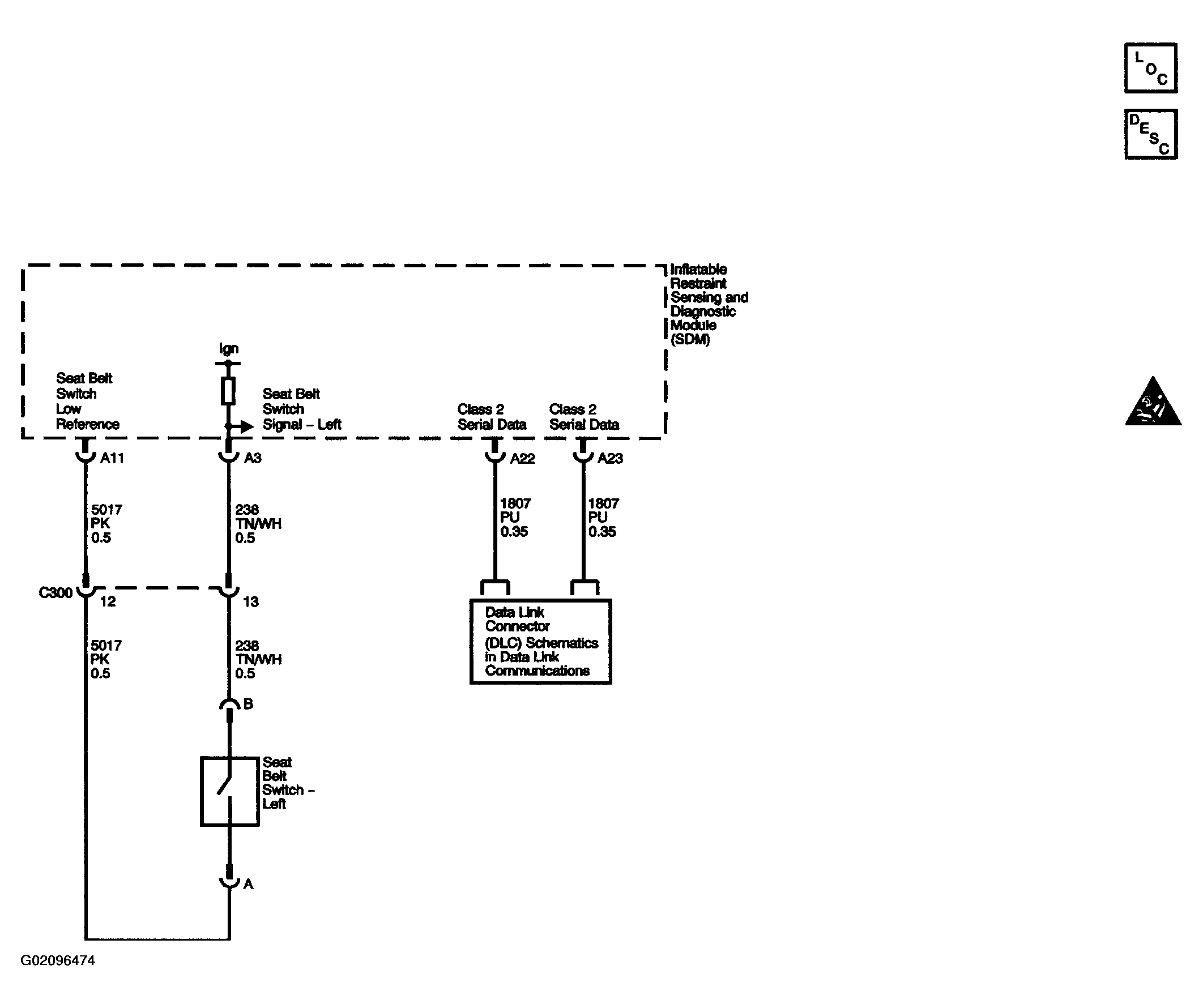

Fig 2: Seat Belt Schematics
G02096474Courtesy of GENERAL MOTORS CORP.
