Cellular Communication Connector End Views

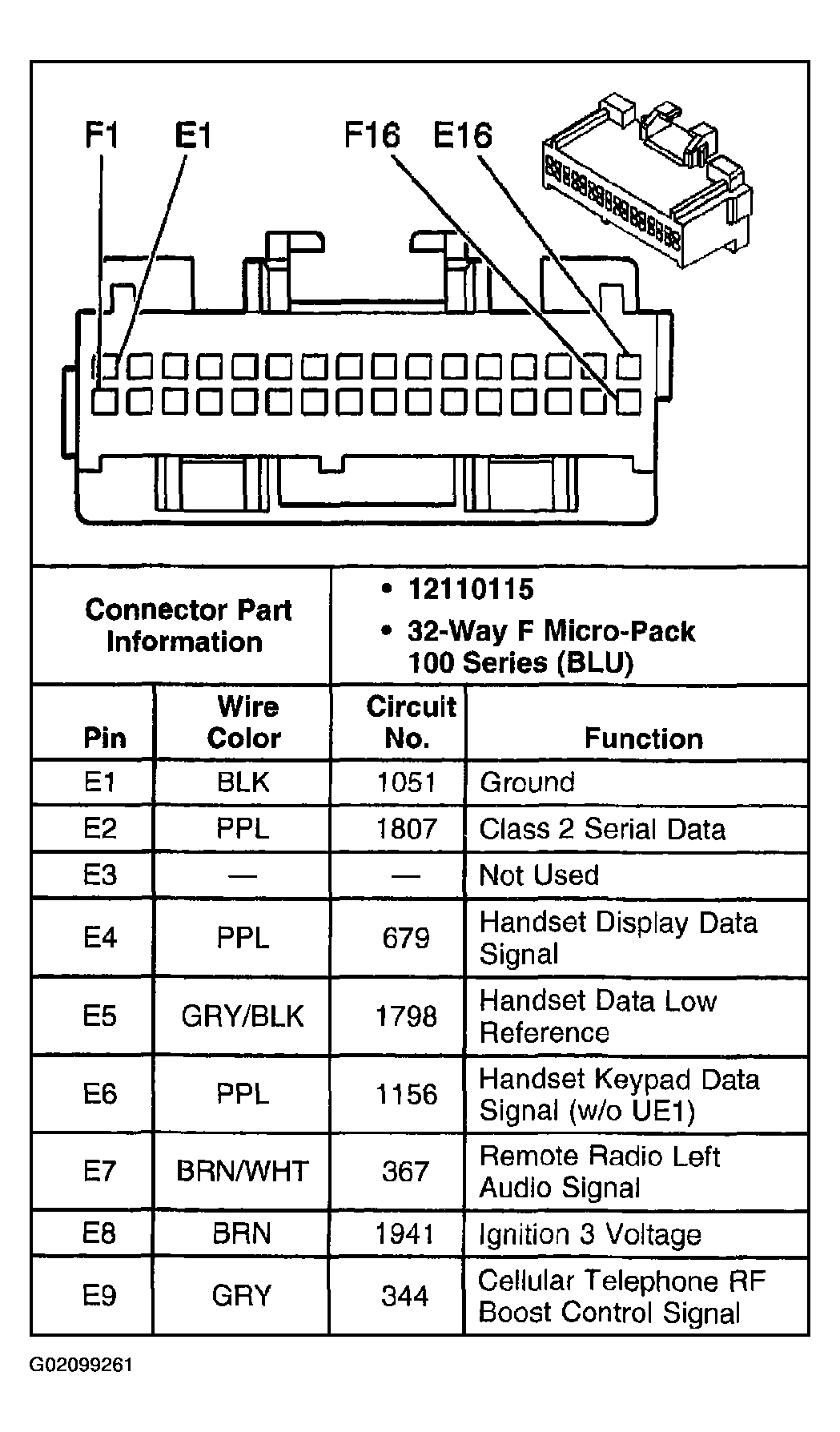

Fig 1: Identifying Cellular Telephone Interface Board Connectors

Courtesy of GENERAL MOTORS CORP.

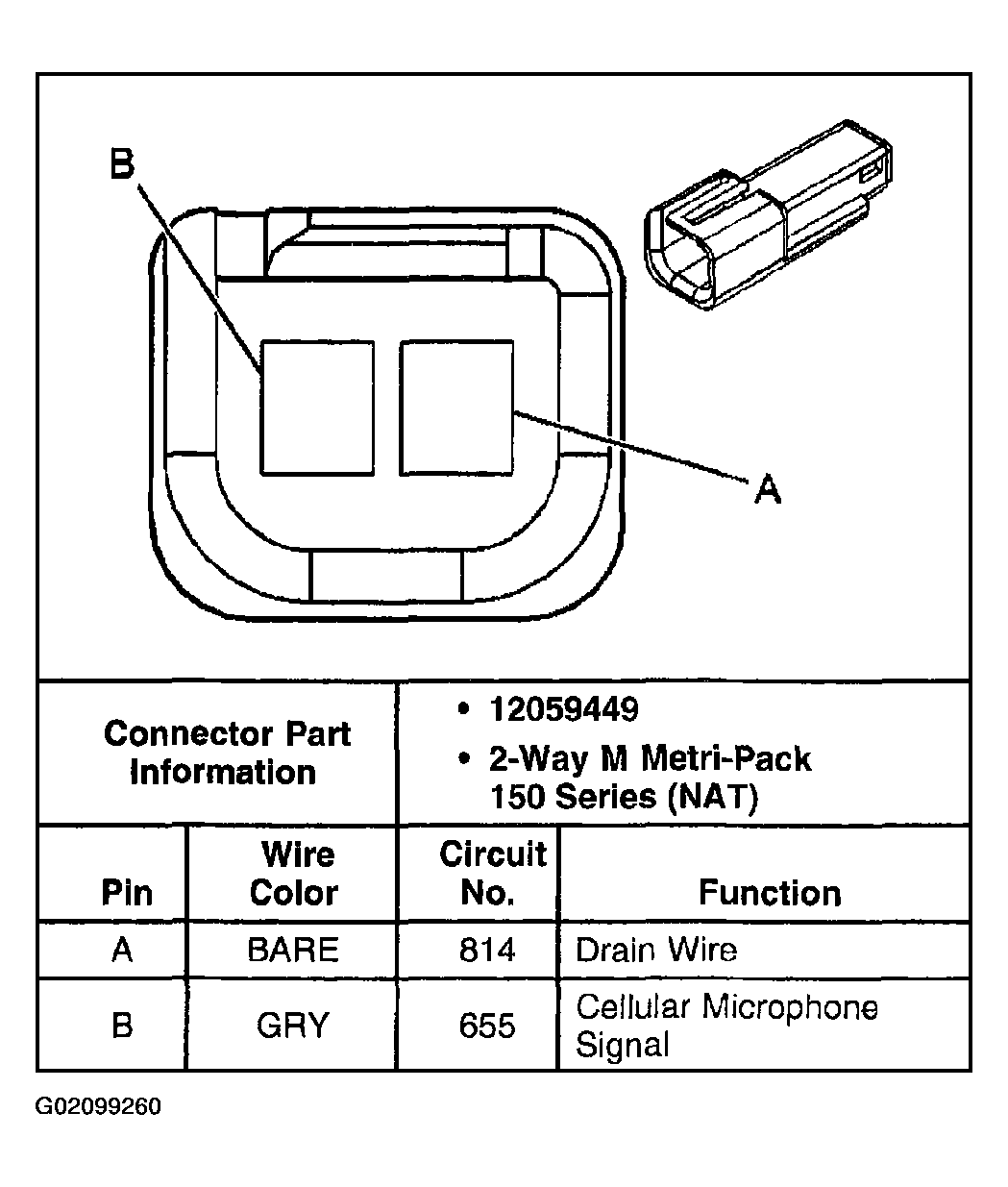

Fig 2: Identifying Cellular Telephone Microphone Connectors (w/o UE1)

Courtesy of GENERAL MOTORS CORP.

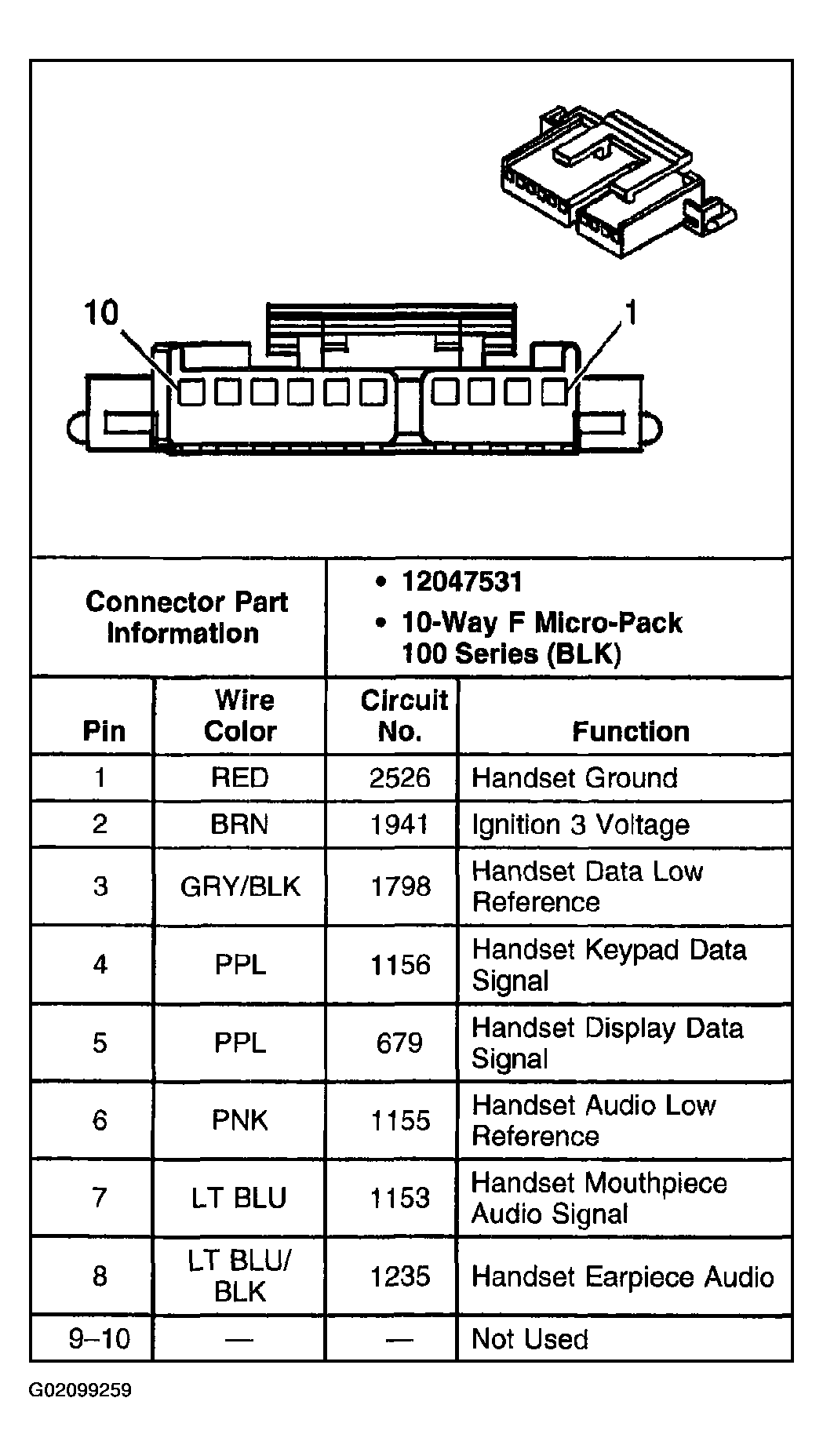

Fig 3: Identifying Cellular Telephone Module Connectors (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

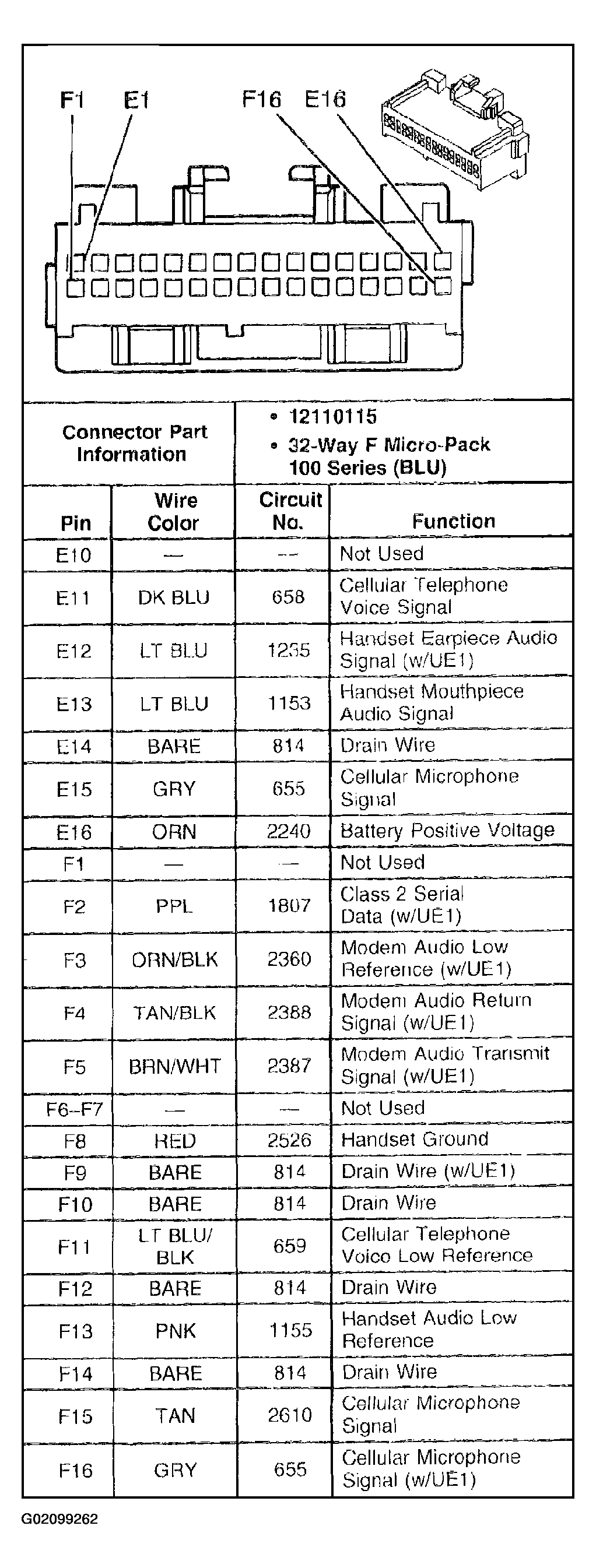

Fig 4: Identifying Cellular Telephone Module Connectors (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

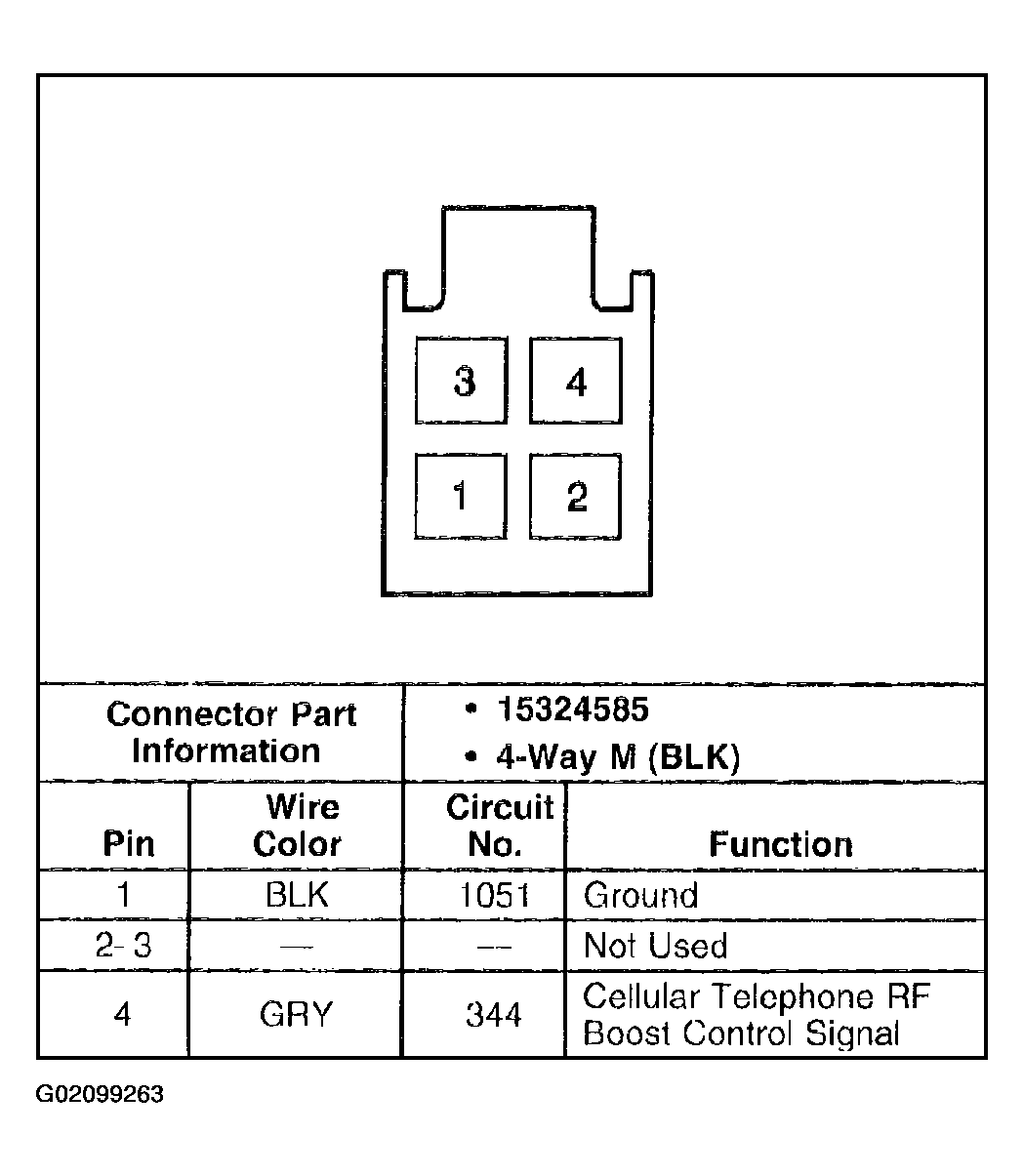

Fig 5: Identifying RF Signal Amplifier Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Vehicle Communication Interface Module (VCIM) C1 Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Vehicle Communication Interface Module (VCIM) C2 Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Vehicle Communication Interface Module (VCIM) C3 Connectors

Courtesy of GENERAL MOTORS CORP.
