Removal Procedure

Important:  Replace the battery when the range of the transmitter decreases to less than 7 m (23 ft).

1. Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
2. Twist the coin in order to open the case.
3. Open the transmitter case.
   Fig 1: Inserting Small Coin Between 2 Halves Of Transmitter Case

   Courtesy of GENERAL MOTORS CORP.
4. Remove the battery (2).

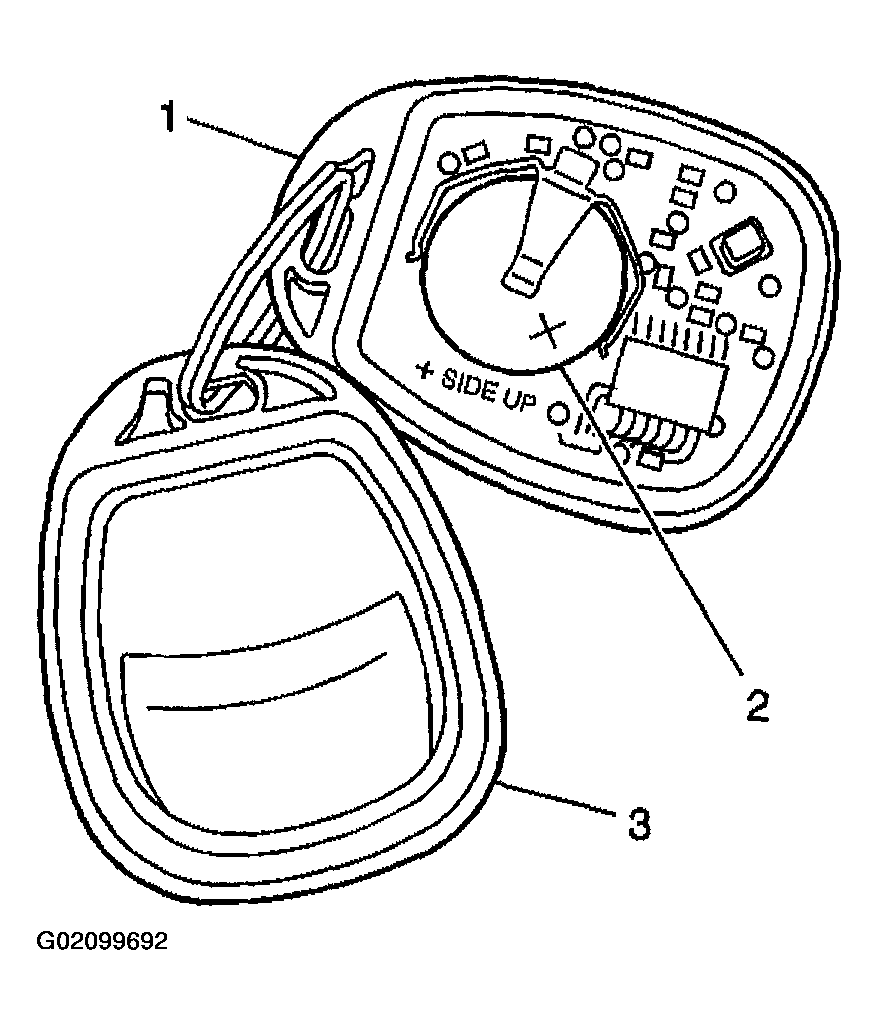

   Fig 2: Removing Battery

   Courtesy of GENERAL MOTORS CORP.
