Power Seat Systems Component Views

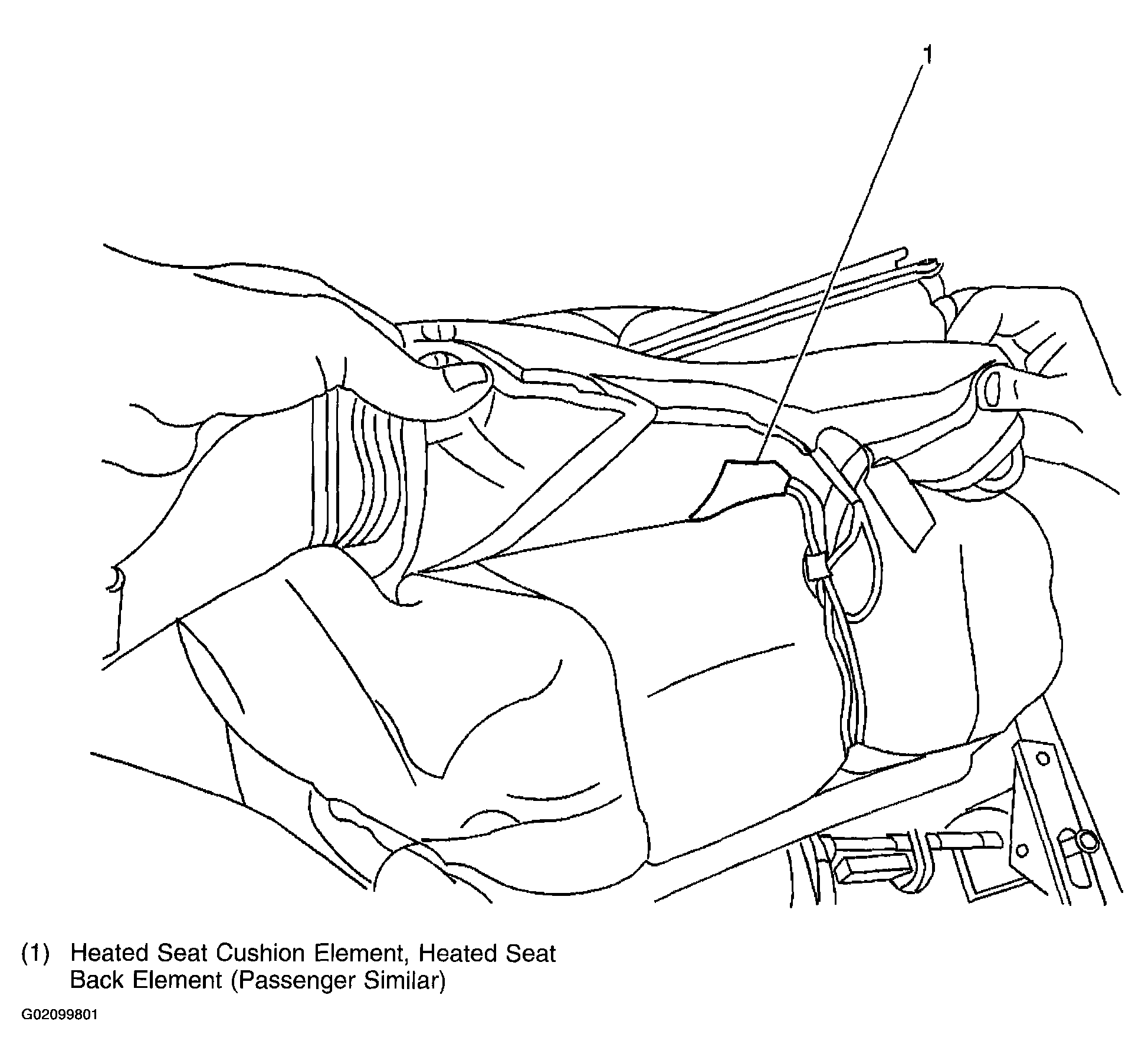

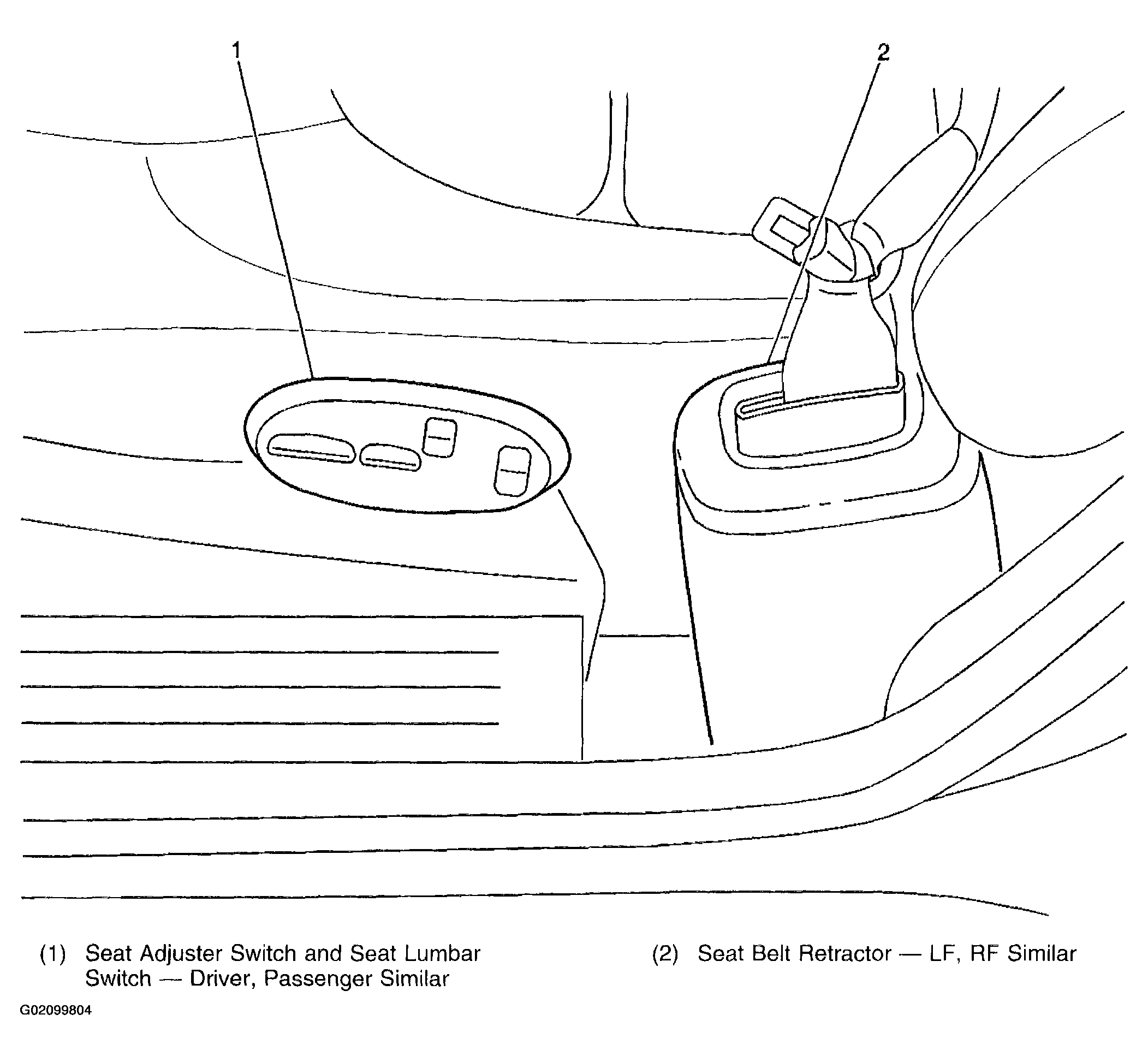

Fig 1: Identifying Left Front Seat Cushion Components

Courtesy of GENERAL MOTORS CORP.

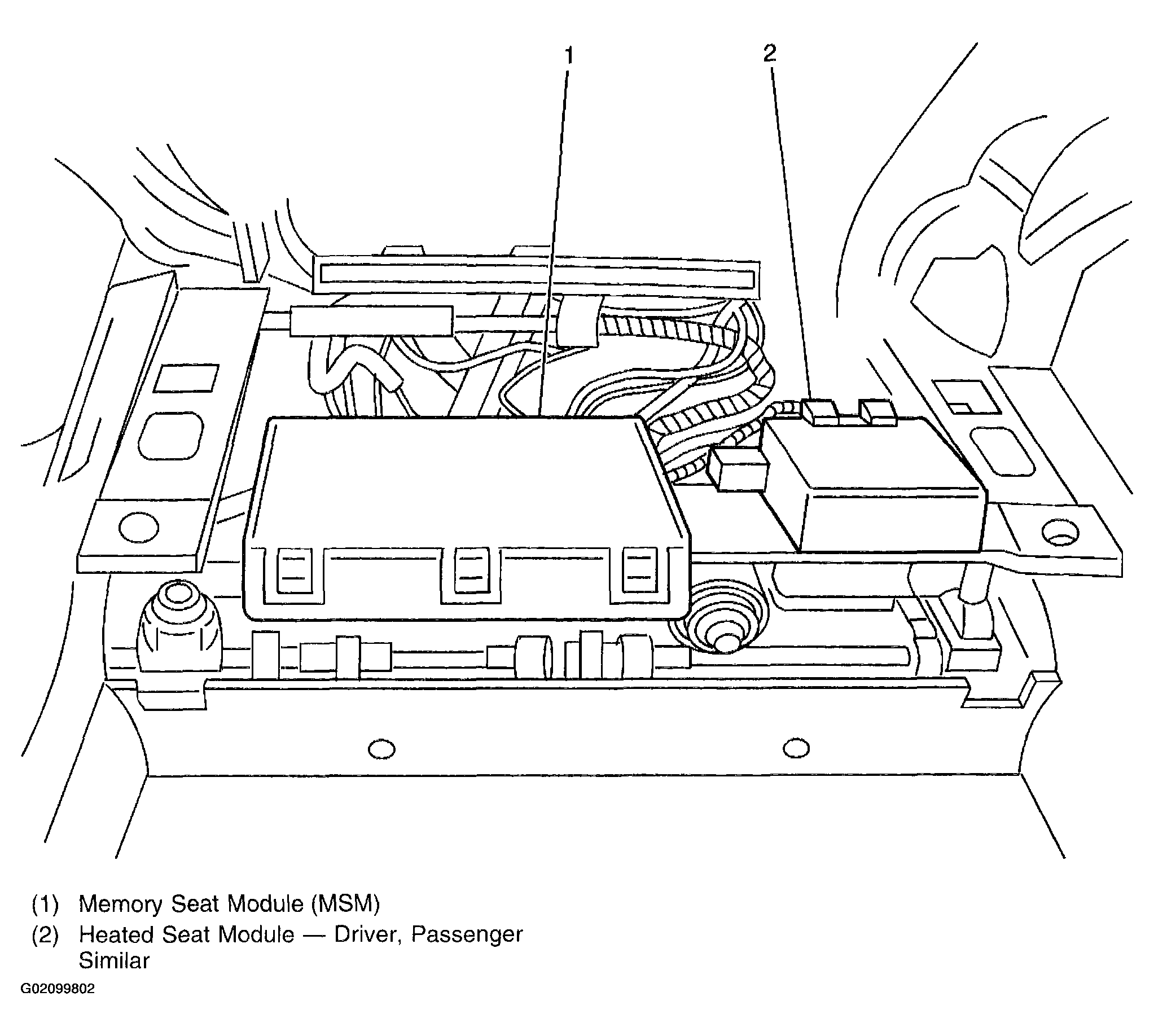

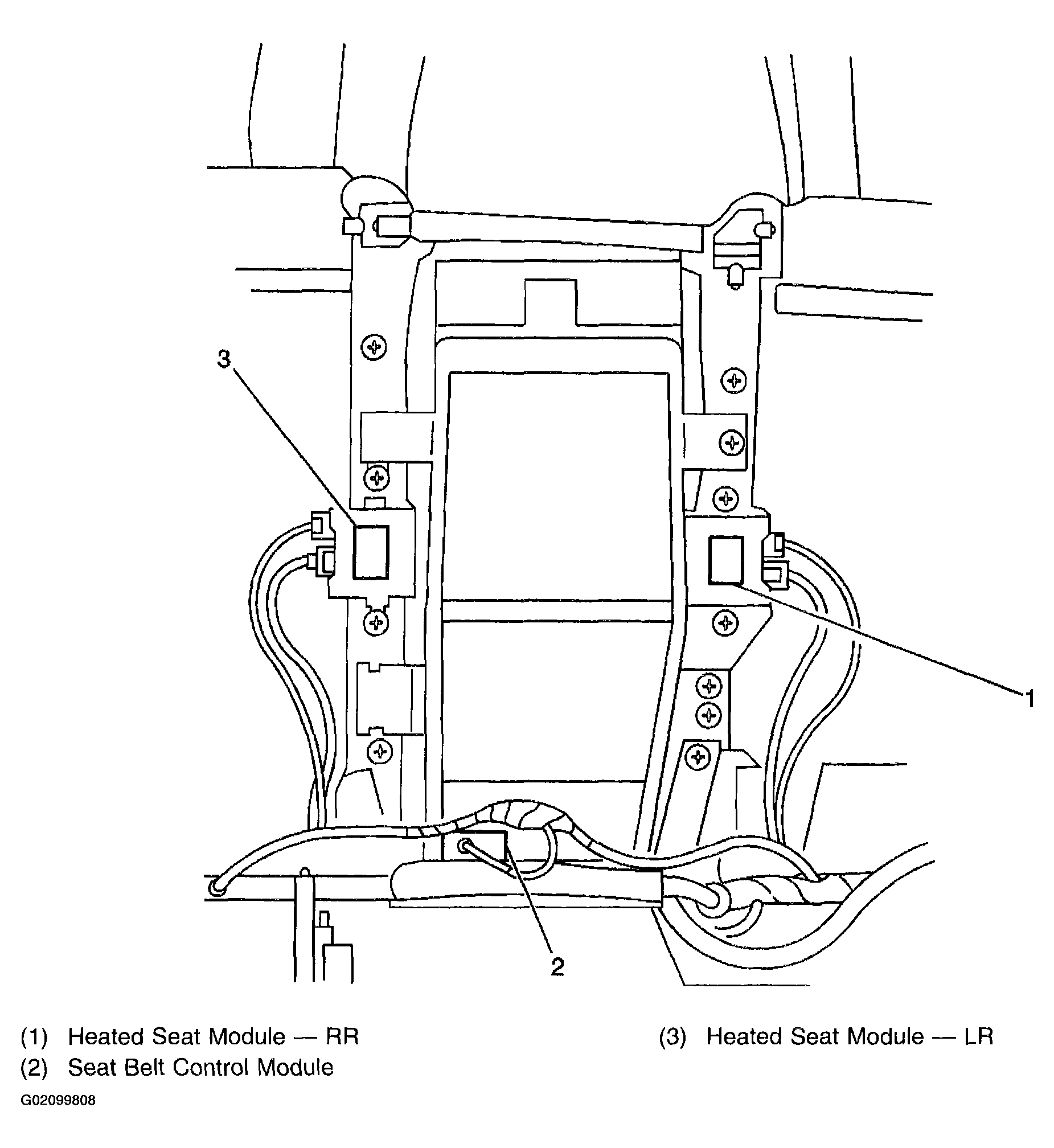

Fig 2: Identifying Left Front Of Passenger Compartment, Under Left Front Seat Components

Courtesy of GENERAL MOTORS CORP.

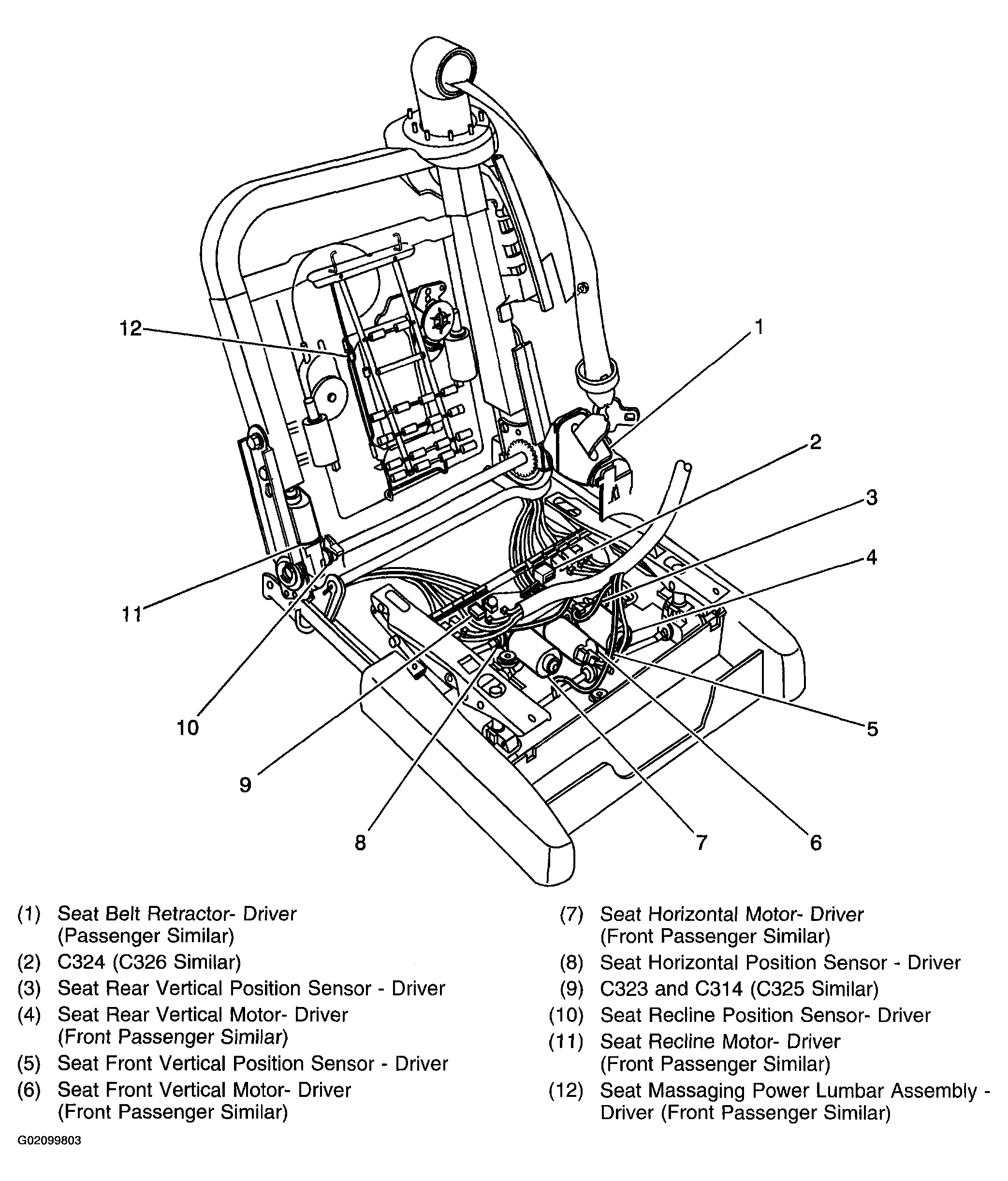

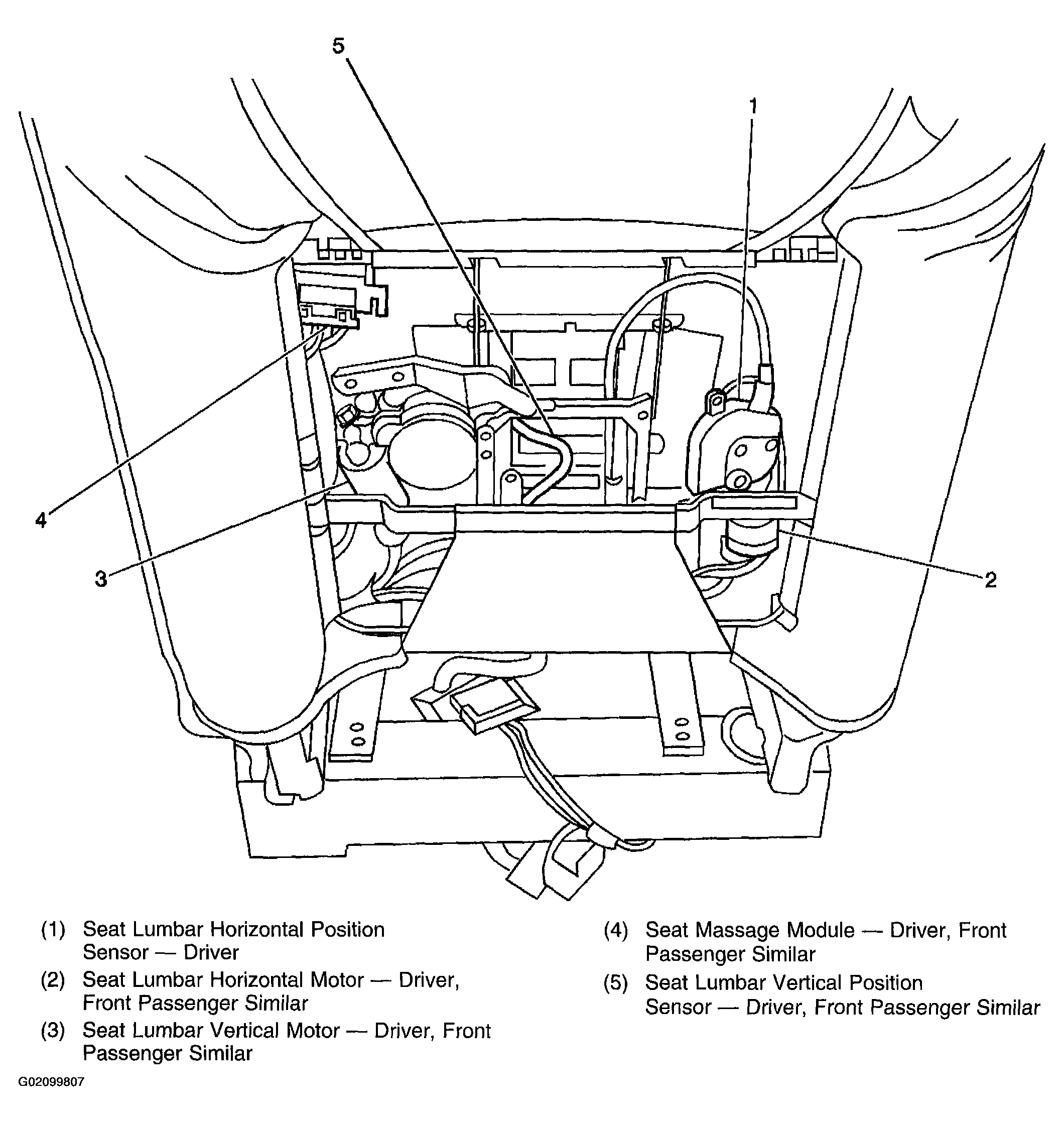

Fig 3: Identifying Passenger Compartment, In Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Left Front Seat, On Left Side Seat Cushion Components

Courtesy of GENERAL MOTORS CORP.

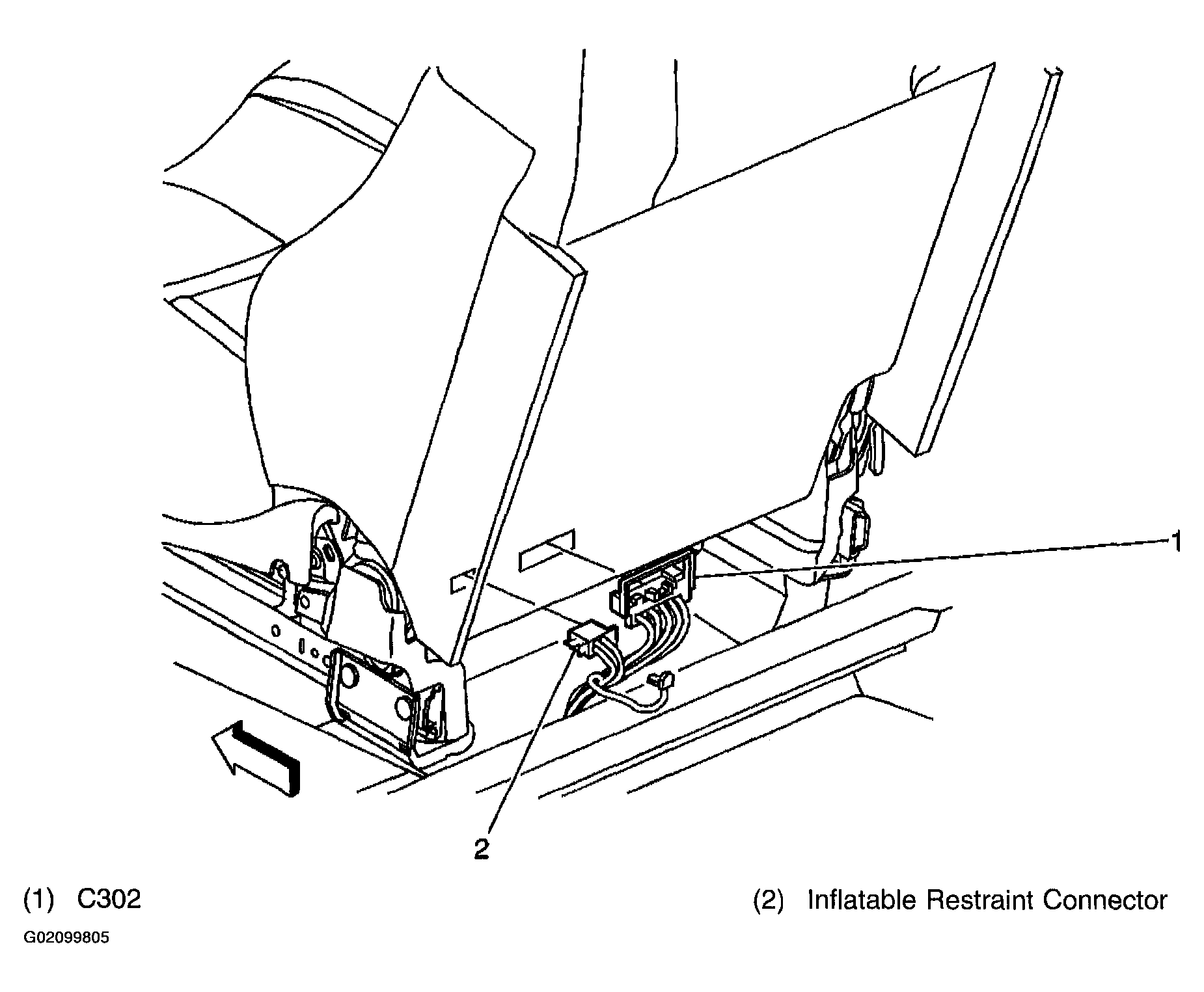

Fig 5: Identifying LH Seat Connectors Components

Courtesy of GENERAL MOTORS CORP.

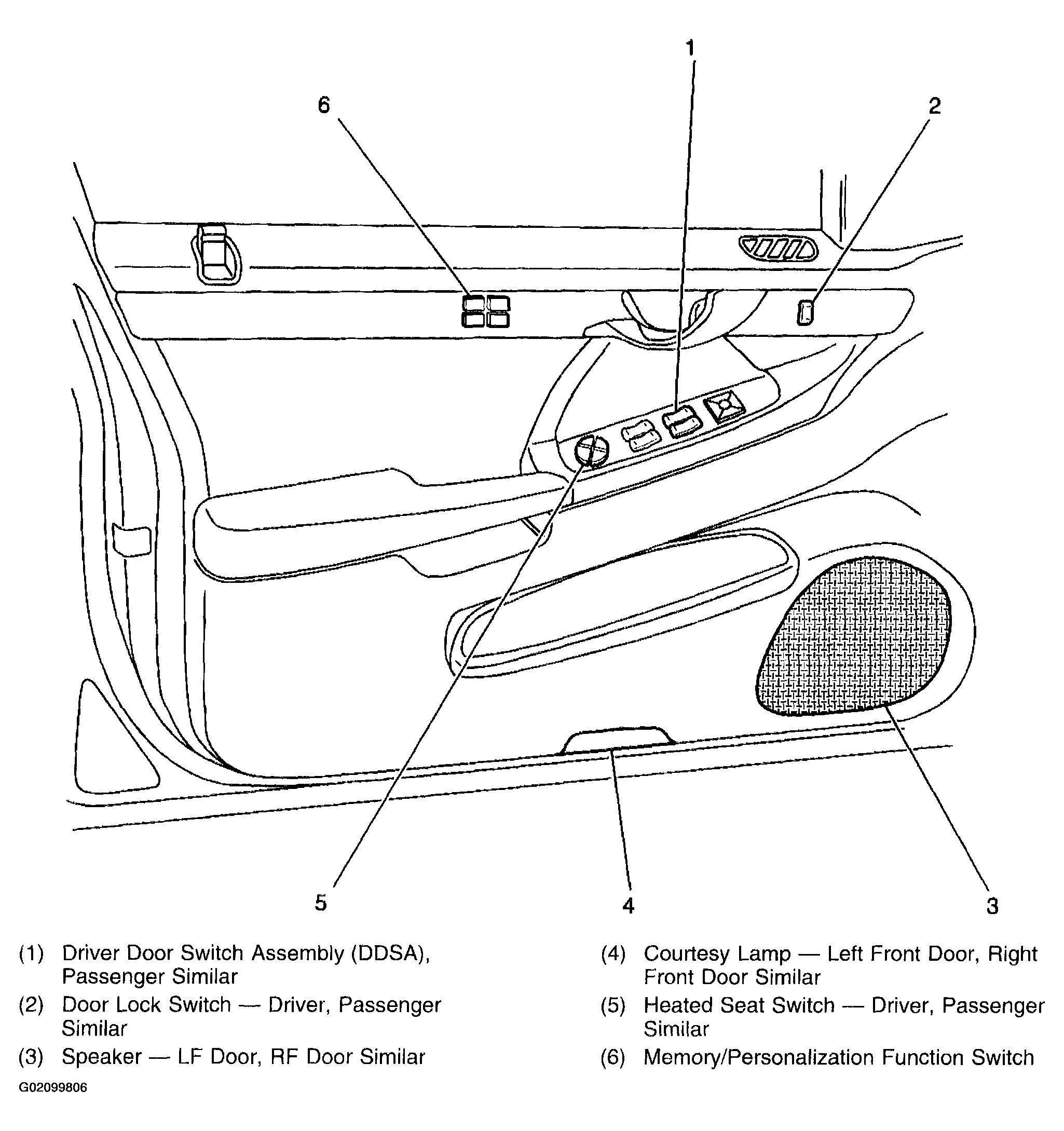

Fig 6: Identifying Left Front Door, On Door Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Left Front Of Passenger Compartment, Under Left Front Seat Components

Courtesy of GENERAL MOTORS CORP.

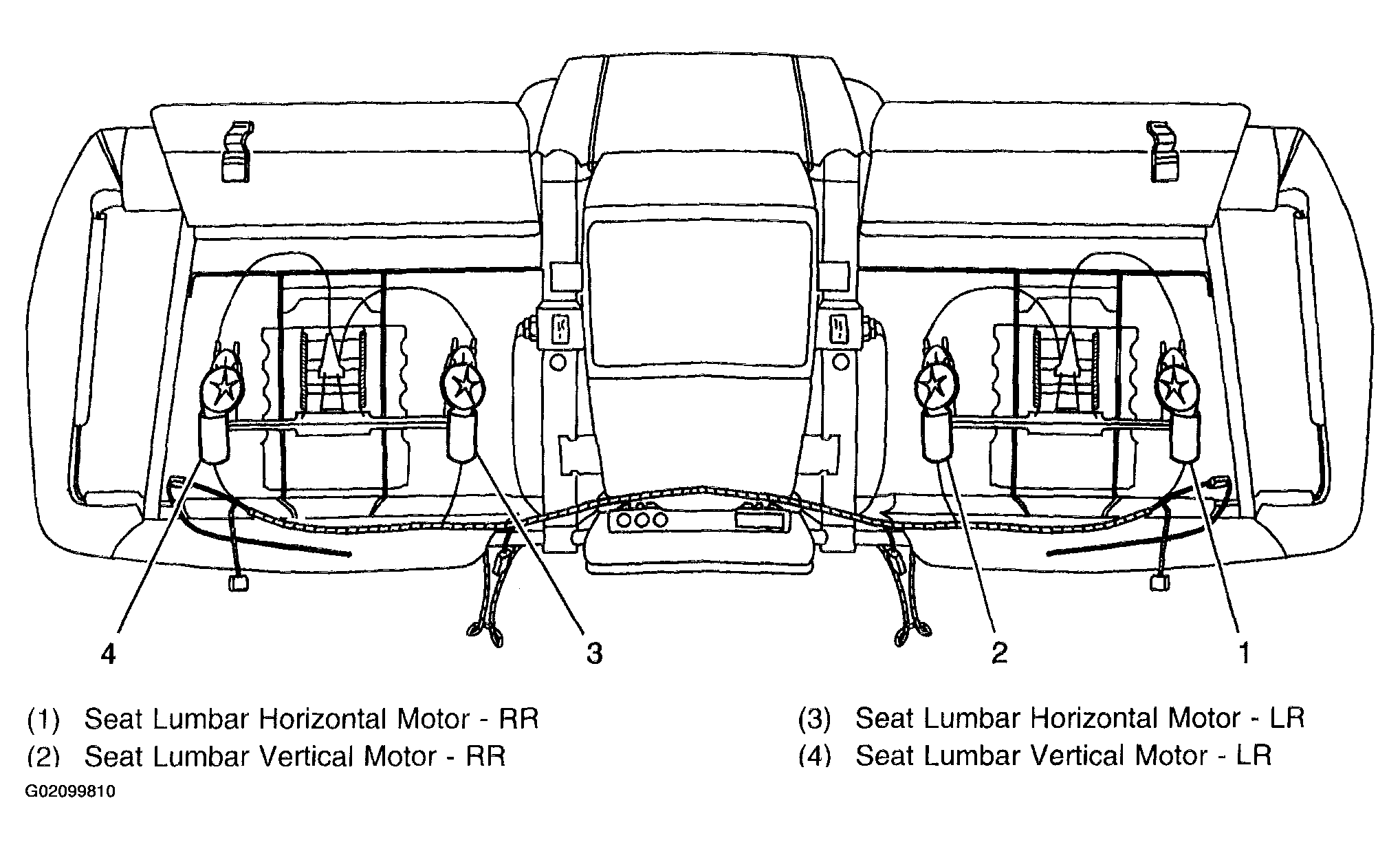

Fig 8: Identifying Center Rear Passenger Compartment, In Rear Seat Back Components

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Left Side Of Rear Seat Back Components

Courtesy of GENERAL MOTORS CORP.

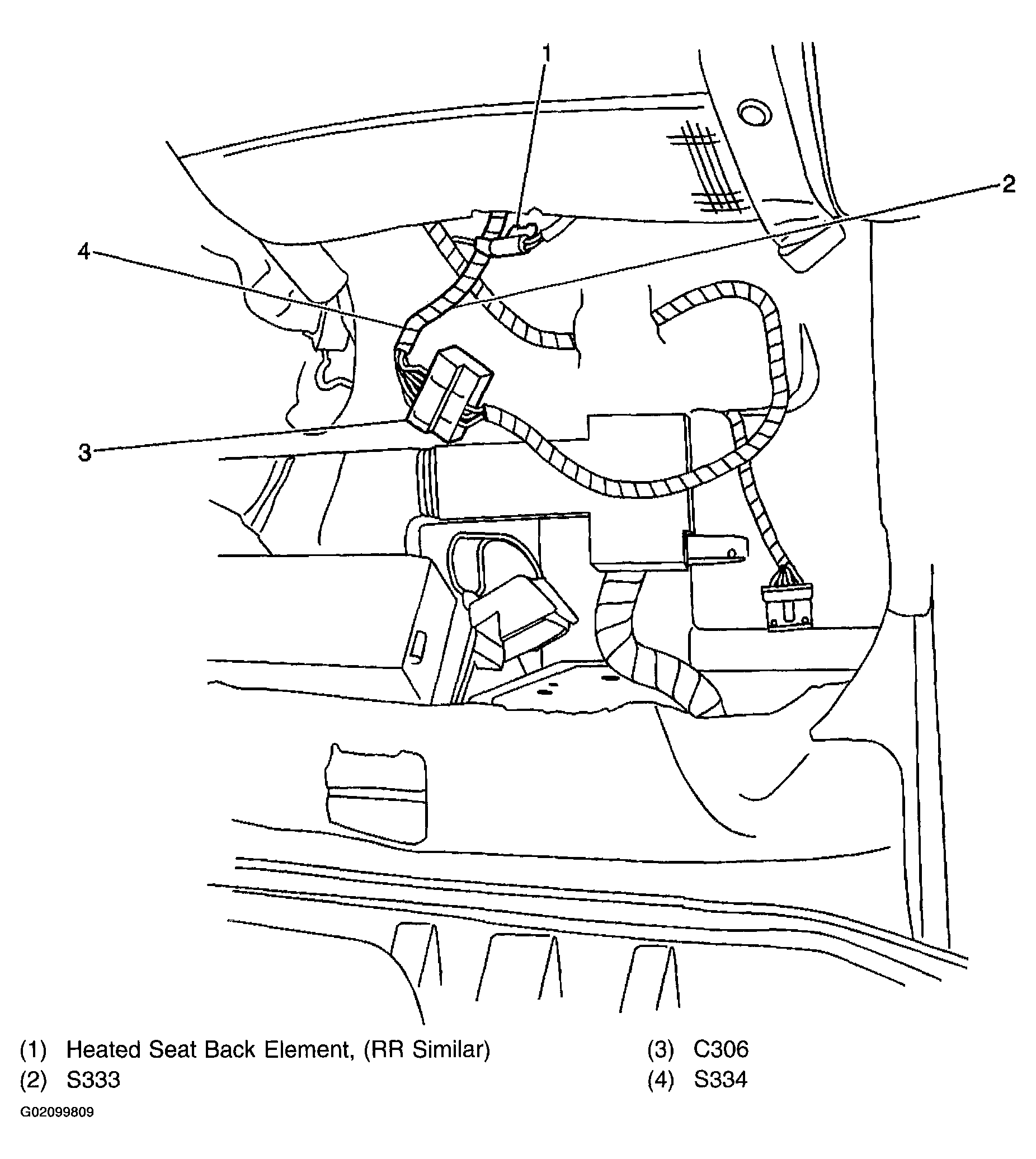

Fig 10: Identifying Rear Passenger Compartment, Behind Rear Seat Back Components

Courtesy of GENERAL MOTORS CORP.

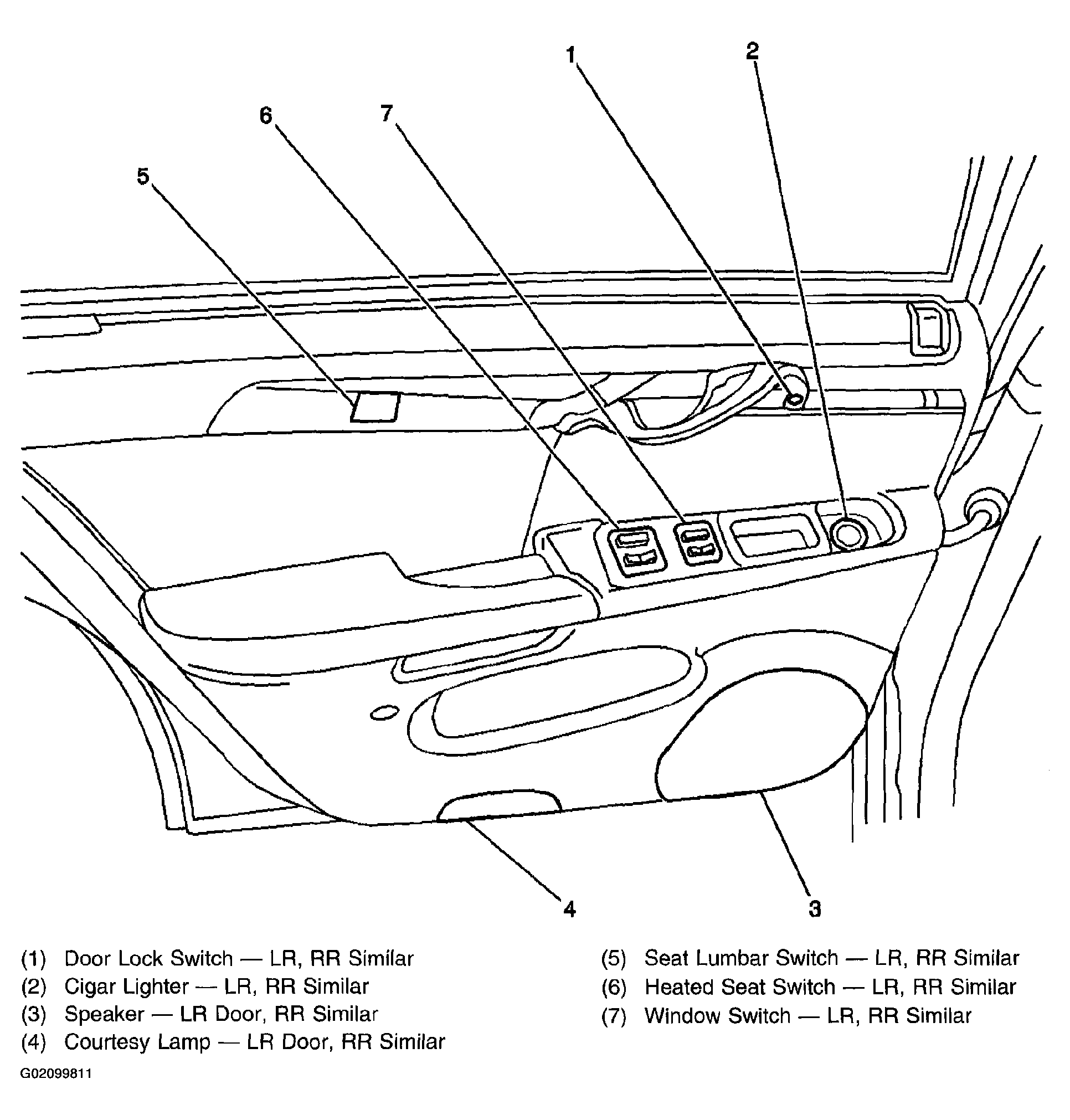

Fig 11: Identifying Front Left Rear Door Components

Courtesy of GENERAL MOTORS CORP.
