Installation Procedure

  1. Connect the electrical connector to the massaging lumbar module (1).
  2. Install the massaging lumbar module (1) into the upper corner of the seat back next to the shoulder belt adjuster tower.

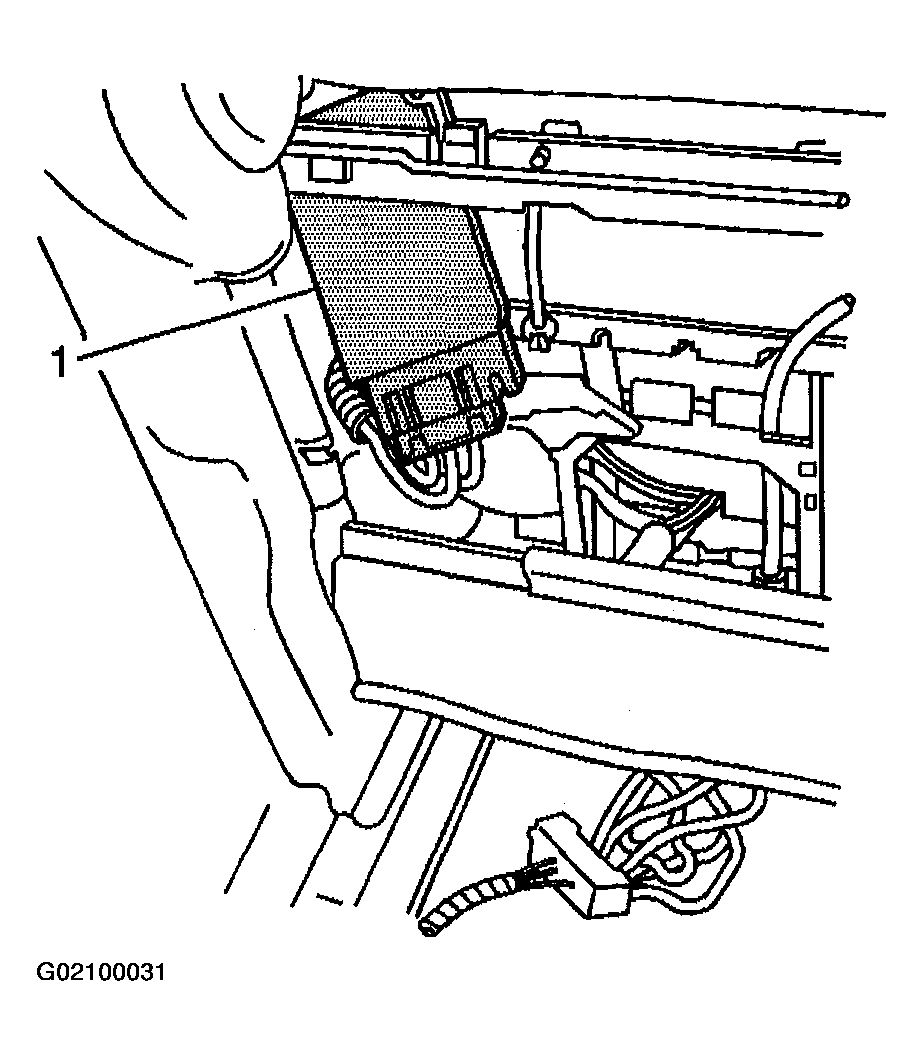

    Fig 1: Installing Massaging Lumbar Module
    G02100031Courtesy of GENERAL MOTORS CORP.
  3. Hook the tab on the massaging lumbar module (1) to the seat back frame cross brace (3).
  4. Secure the module (1) to the seat belt shoulder strap adjuster tower and seat back cross brace (3) with the hook and loop material (2).
  5. Install the seat back trim panel. Refer to SEAT BACK TRIM REPLACEMENT - FRONT  .

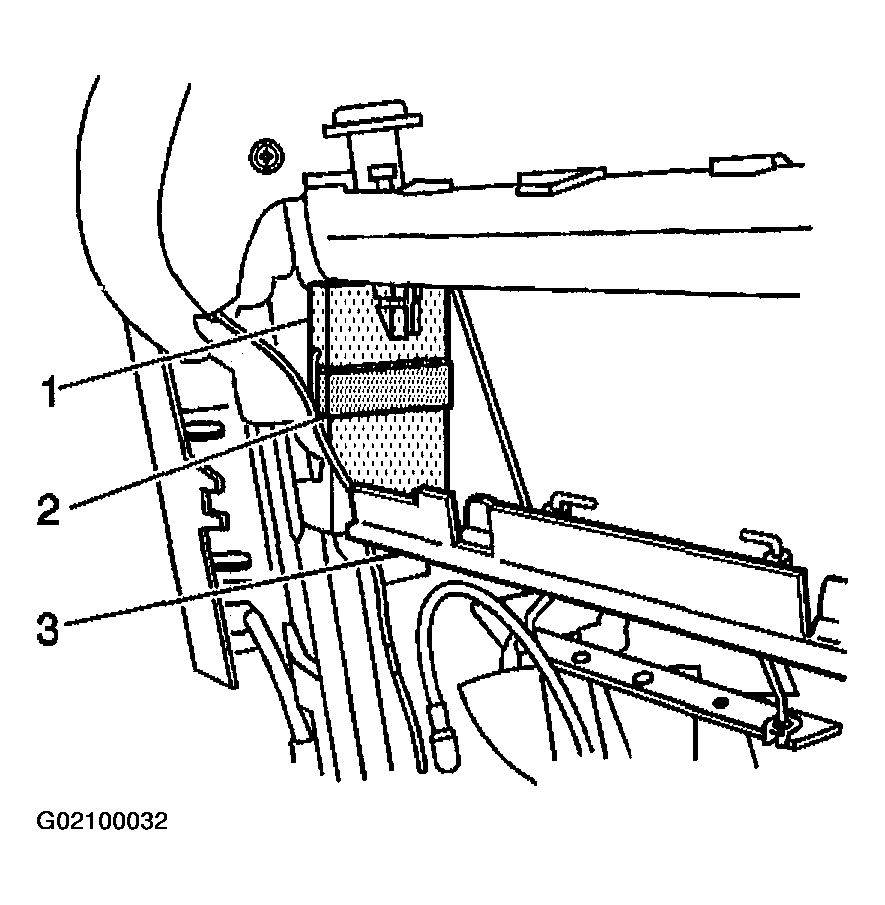

    Fig 2: Installing Massaging Lumbar Module Hook And Loop Material
    G02100032Courtesy of GENERAL MOTORS CORP.
