Lateral Accelerometer Sensor Connector End View

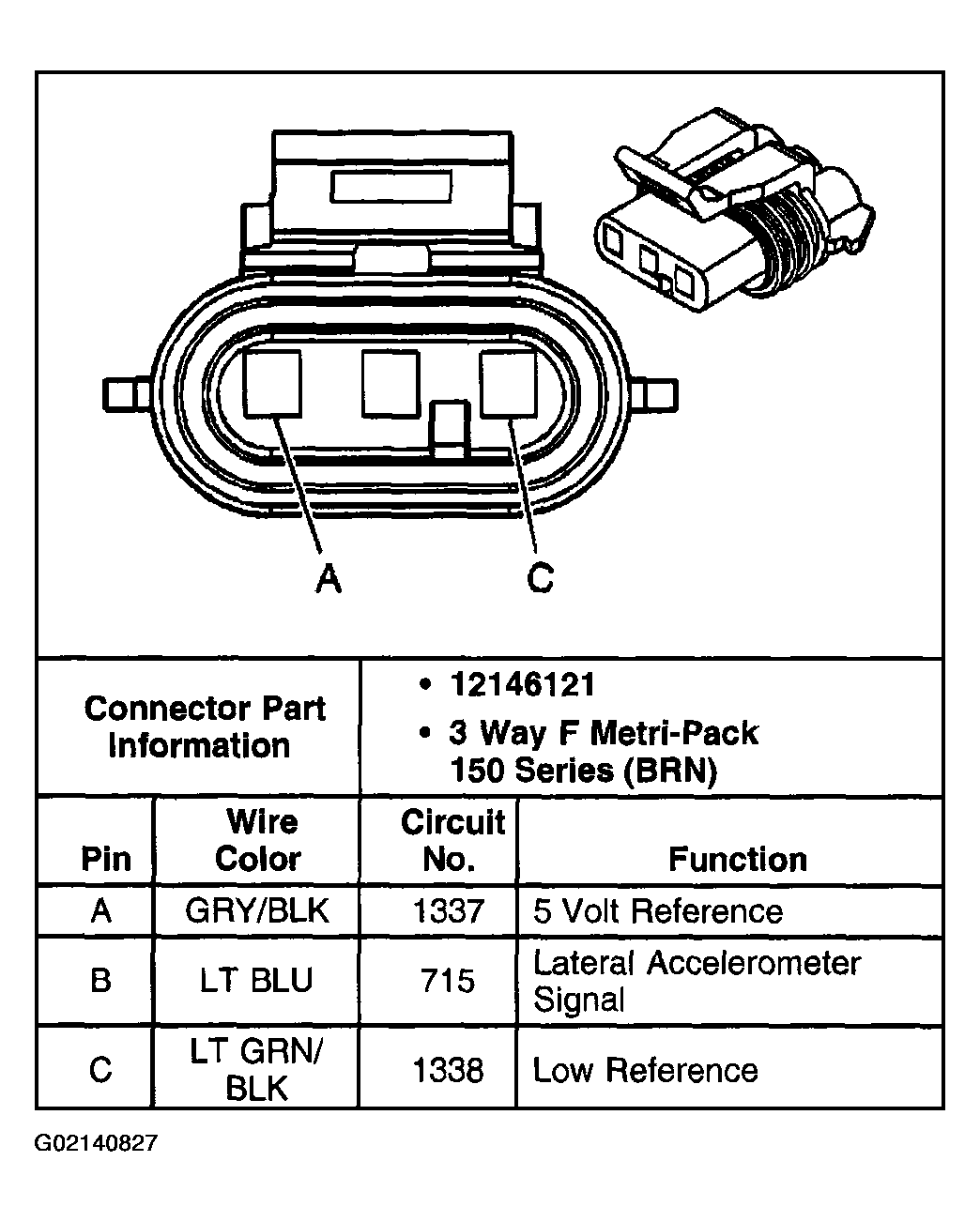

Fig 1: Lateral Accelerometer Sensor
G02140827Courtesy of GENERAL MOTORS CORP.
