Traction Control Switch Connector End View

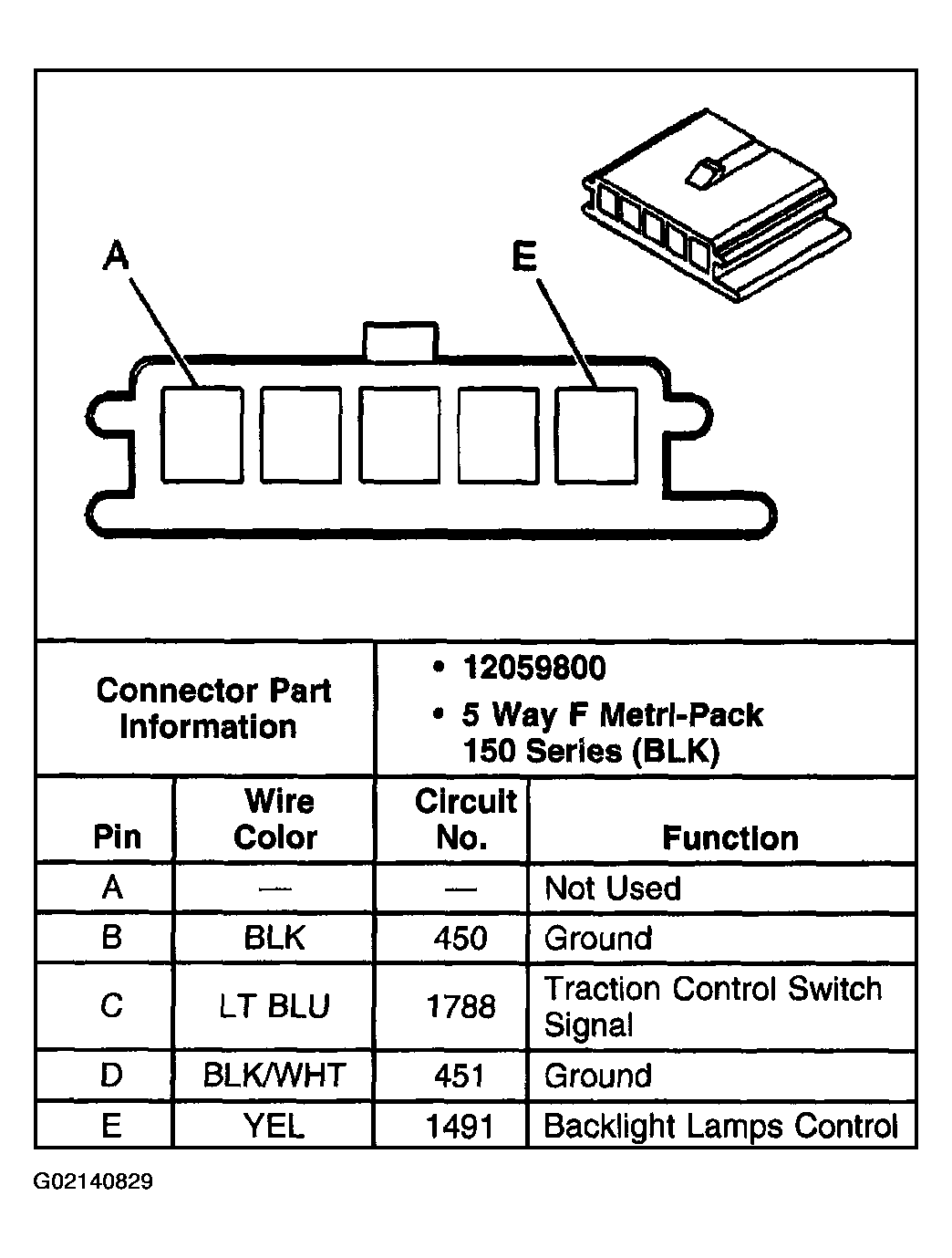

Fig 1: Traction Control Switch (w/F45)
G02140829Courtesy of GENERAL MOTORS CORP.

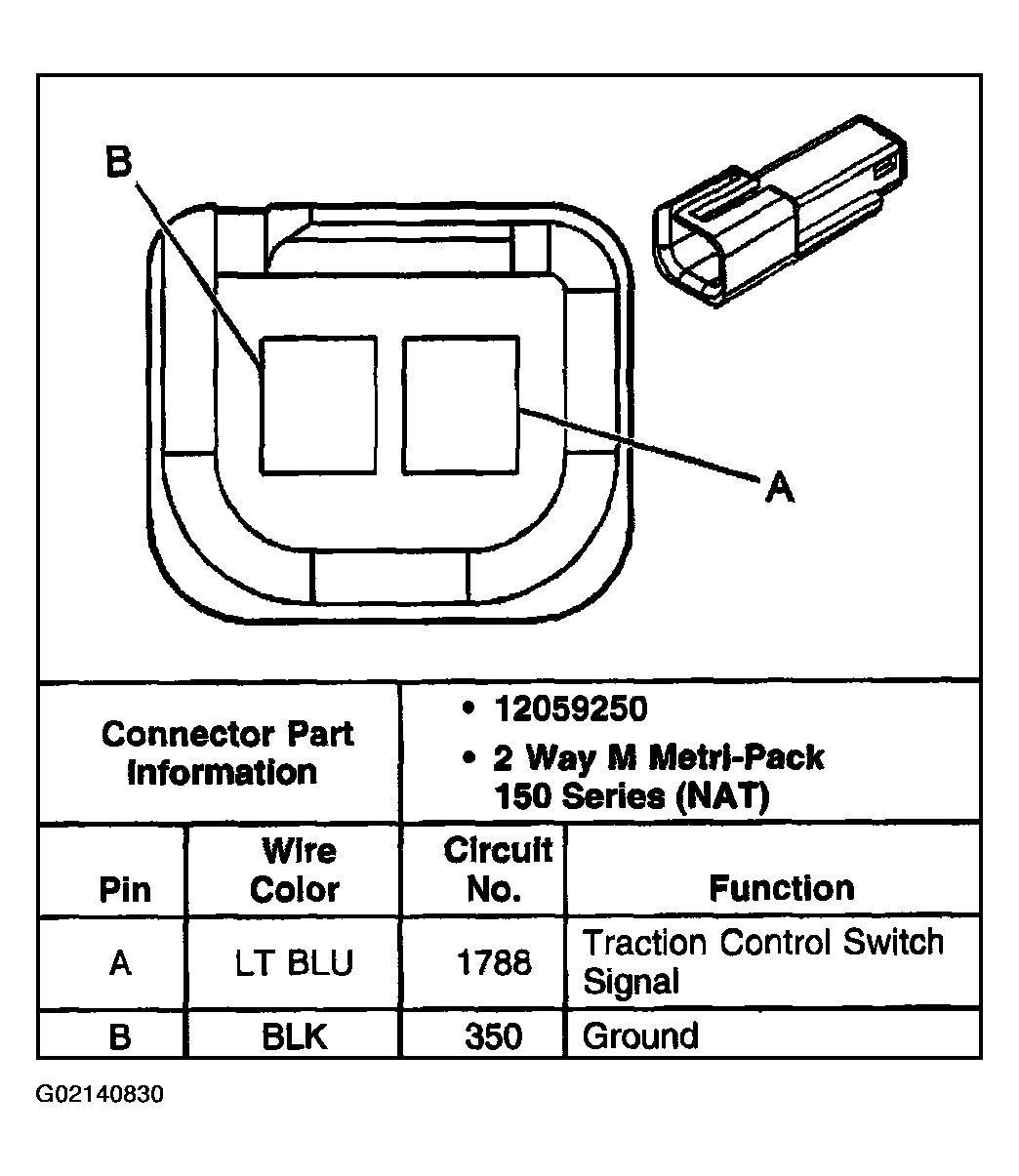

Fig 1: Traction Control Switch (w/o F45)
G02140830Courtesy of GENERAL MOTORS CORP.
