Horns Connector End Views

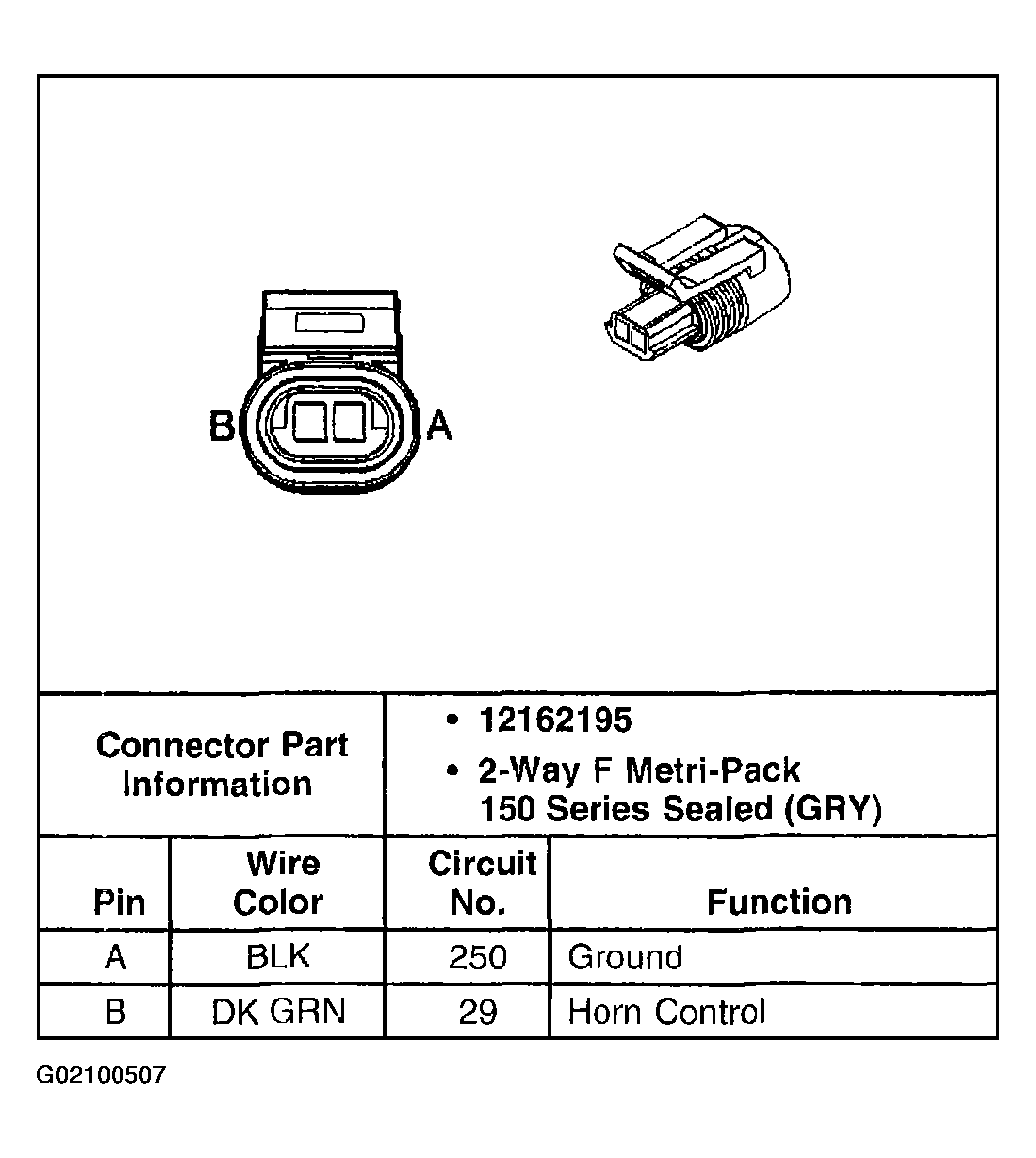

Fig 1: Identifying Horn - High Note Connector Terminal
G02100507Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Horn - Low Note Connector Terminal
G02100508Courtesy of GENERAL MOTORS CORP.
