Heated Seat Module Connector End View - Driver C1

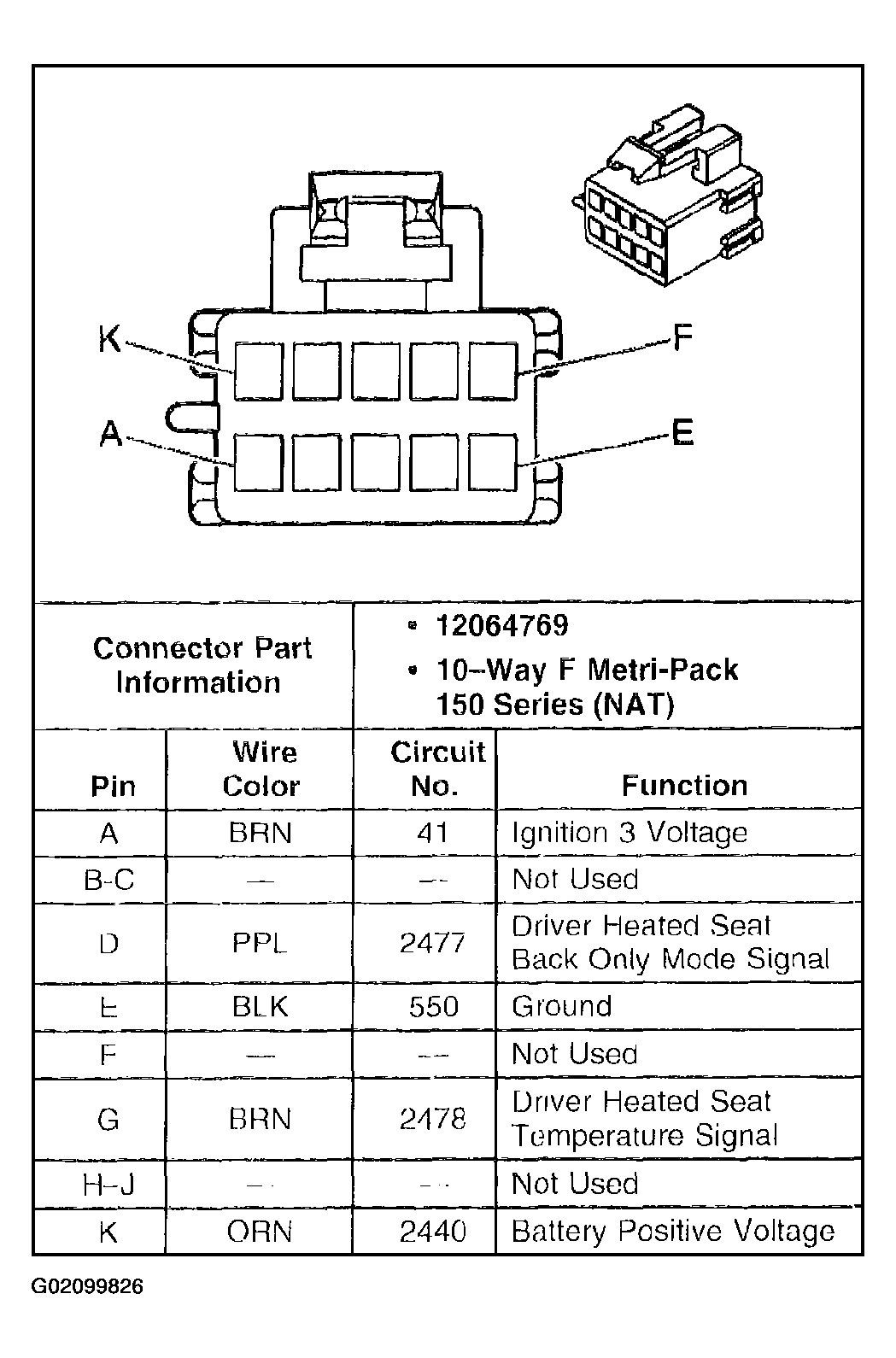

Fig 1: Heated Seat Module - Driver C1
Courtesy of GENERAL MOTORS CORP.
