Installation Procedure

  1. Install the lower case ignition switch (2) to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the ignition switch retaining screws (3).

    Tighten

    Tighten the screws to 1.4 N.m (13 lb in).

    Fig 1: Installing Lower Case Ignition Switch To Steering Column
    G02139880Courtesy of GENERAL MOTORS CORP.
  3. Connect the ignition switch electrical connectors.
  4. Install the theft deterrent module (2) to the ignition lock cylinder case (1).
  5. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT)  .
  6. Enable the SIR system. Refer to DISABLING SYSTEM in SIR.

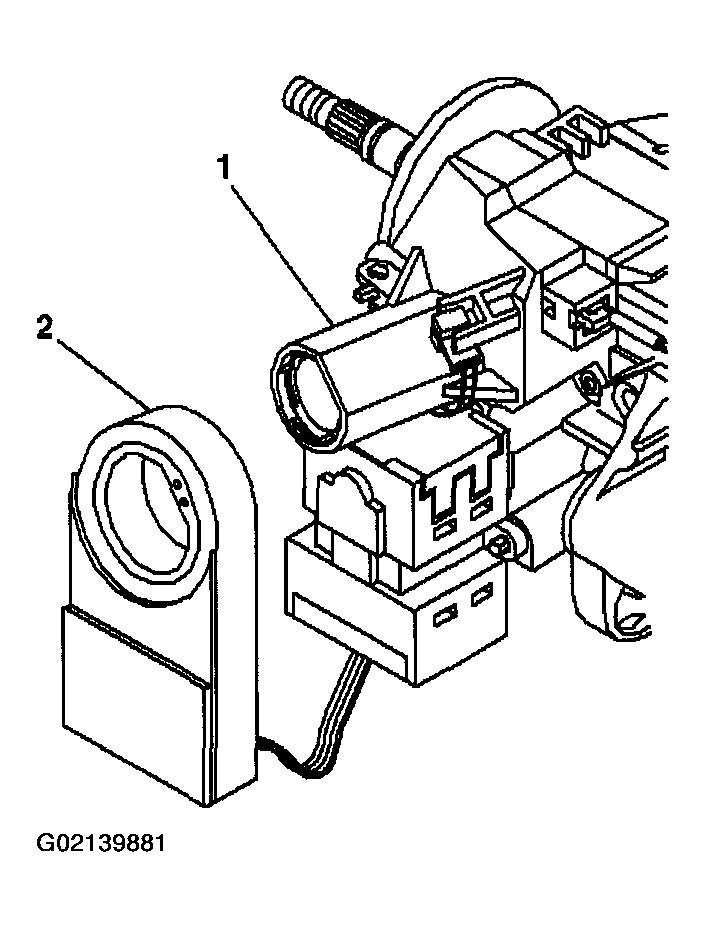

    Fig 2: Installing Theft Deterrent Module To Ignition Lock Cylinder Case
    G02139881Courtesy of GENERAL MOTORS CORP.
