Disassembled Views

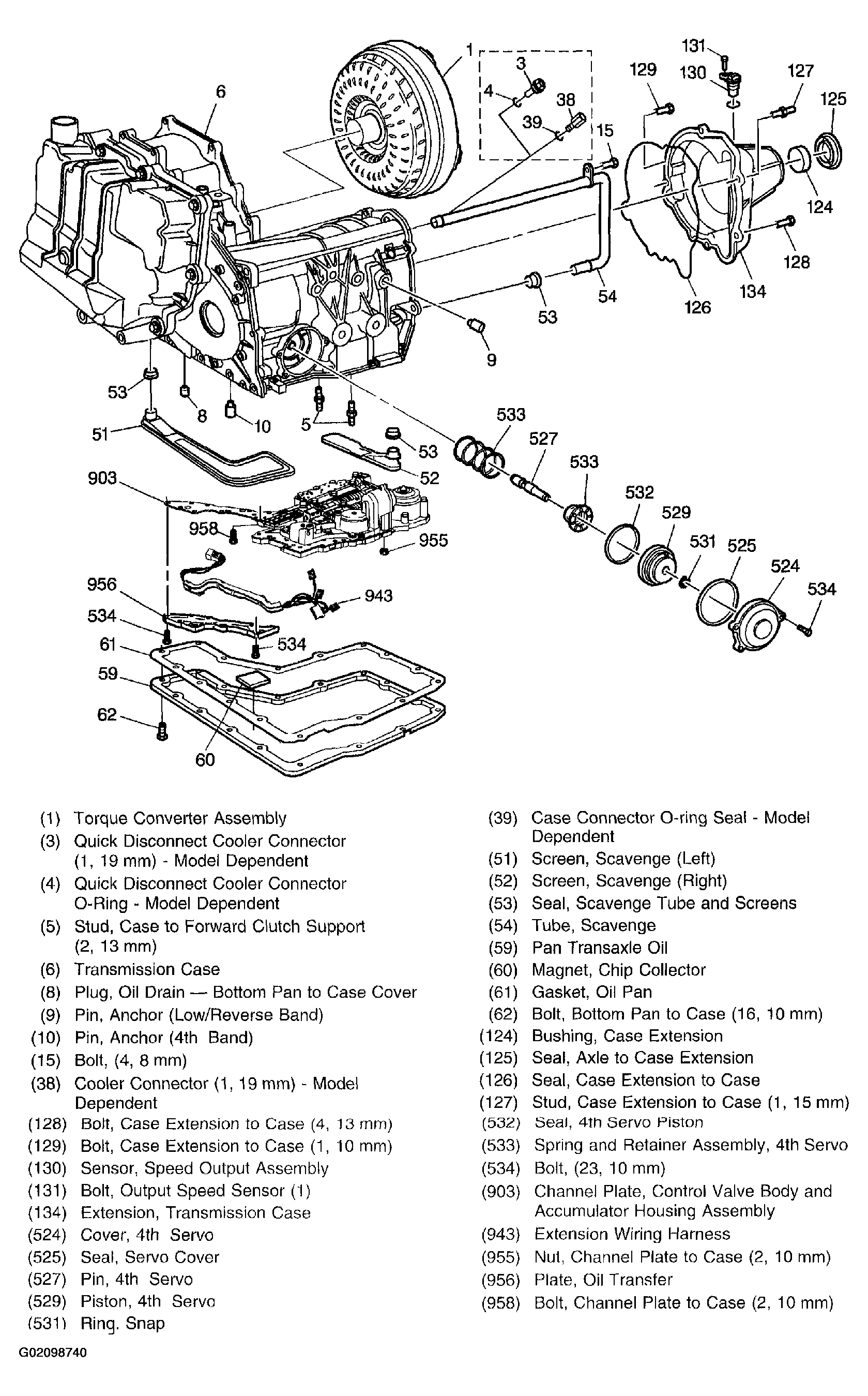

Fig 1: Disassembled Views Case And Associated Parts (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

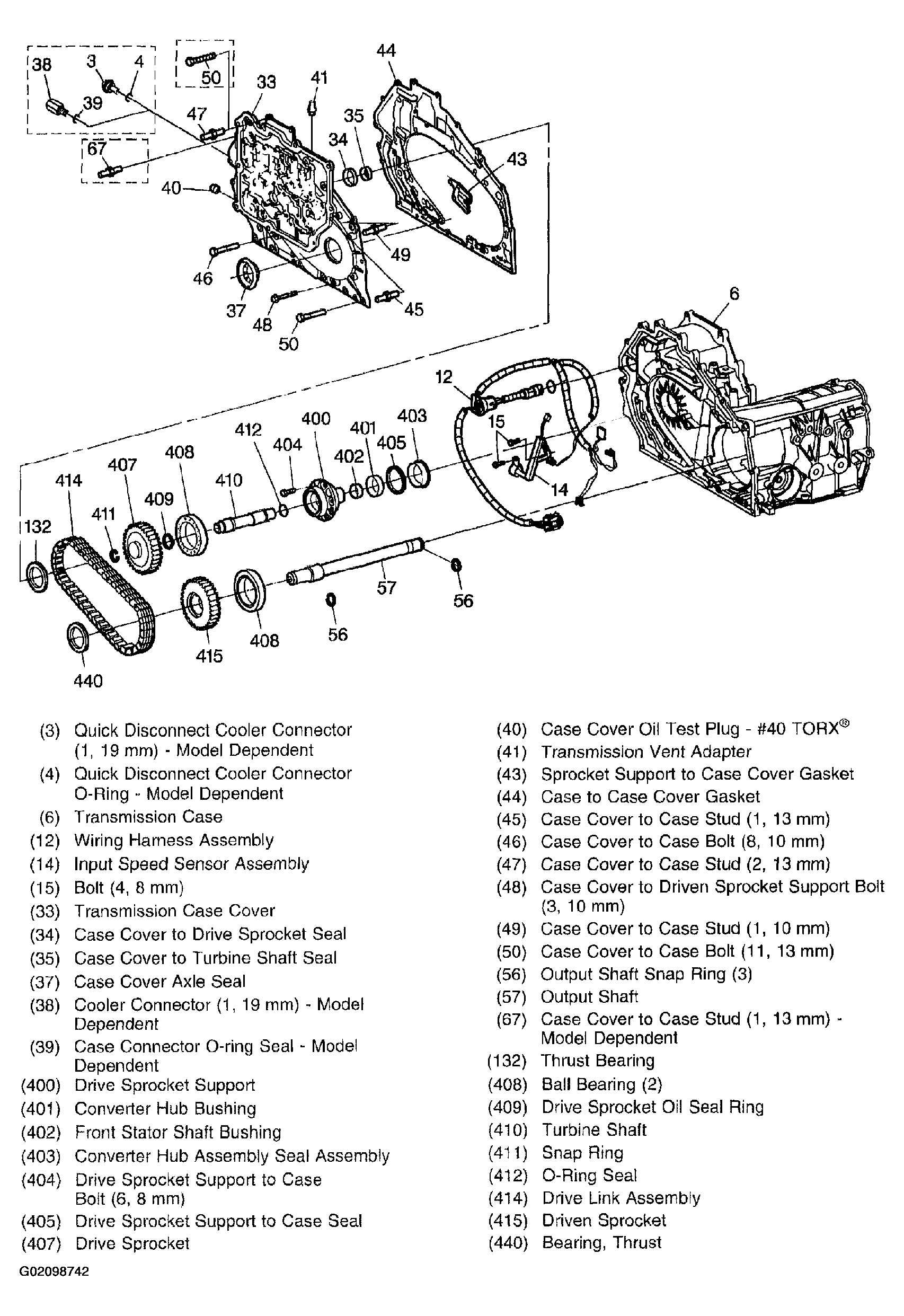

Fig 2: Disassembled Views Case And Associated Parts (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Disassembled Views Case And Associated Parts (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

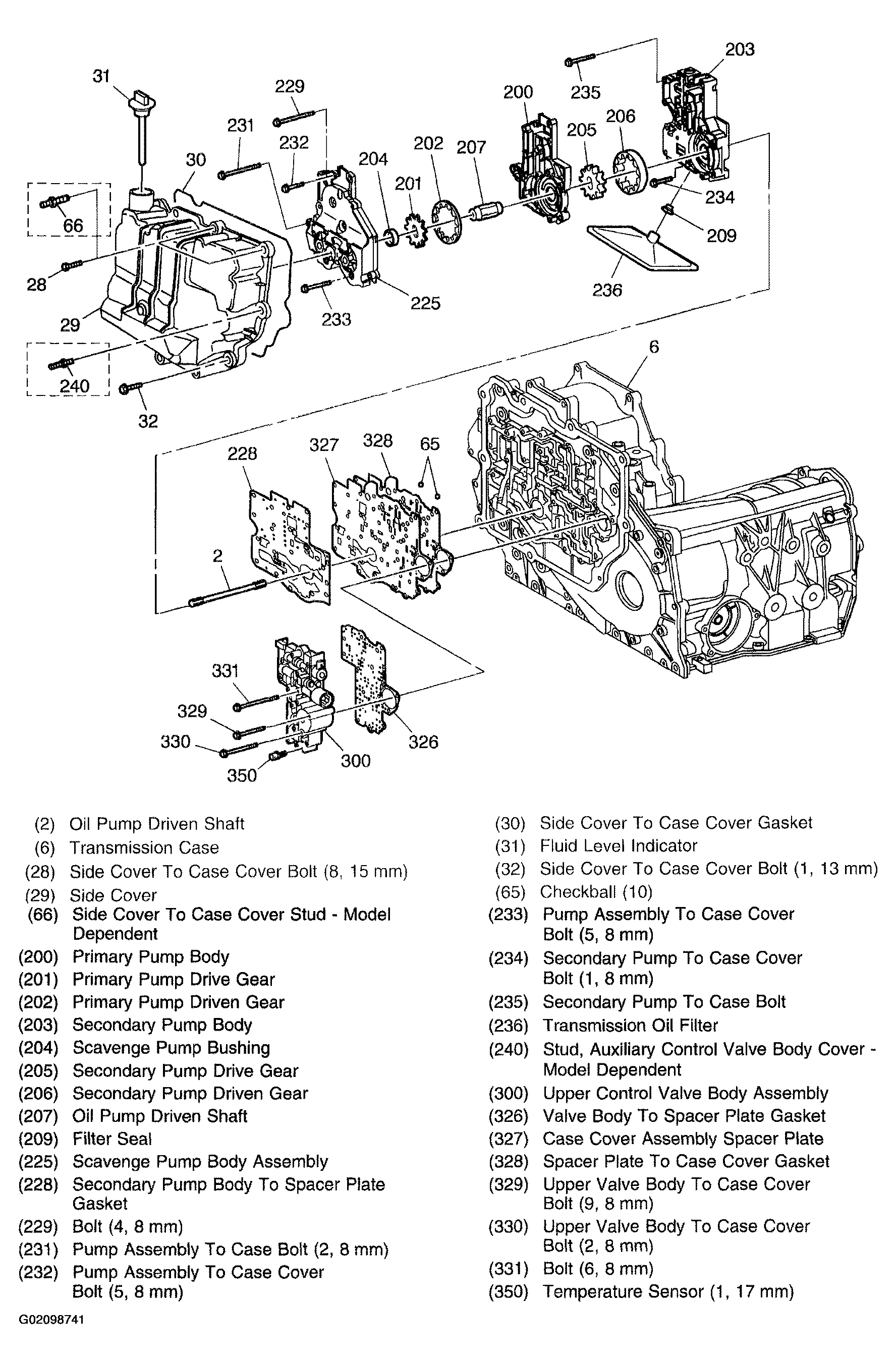

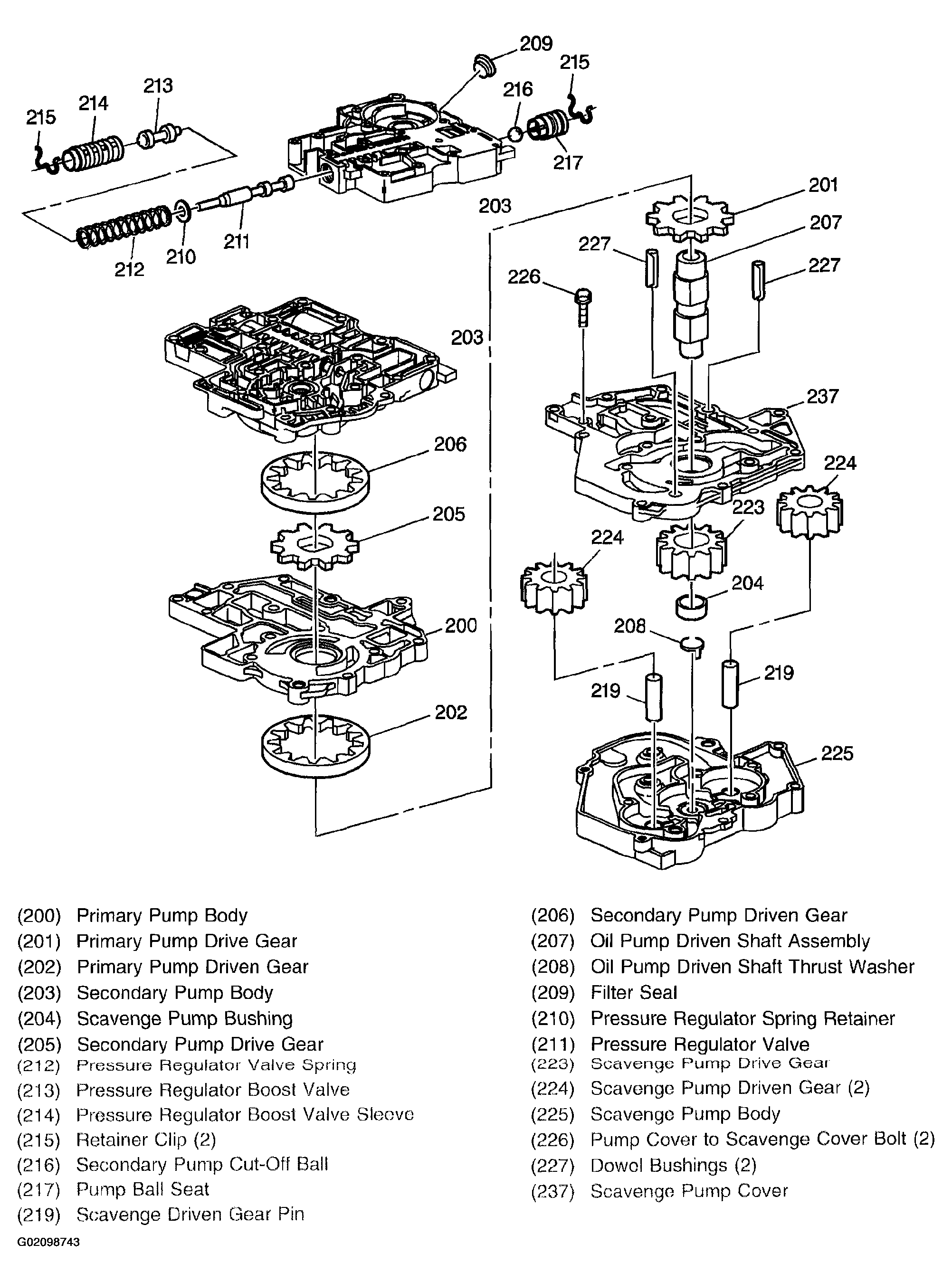

Fig 4: Disassembled Views Scavenge, Primary And Secondary Fluid Pump Assemblies

Courtesy of GENERAL MOTORS CORP.

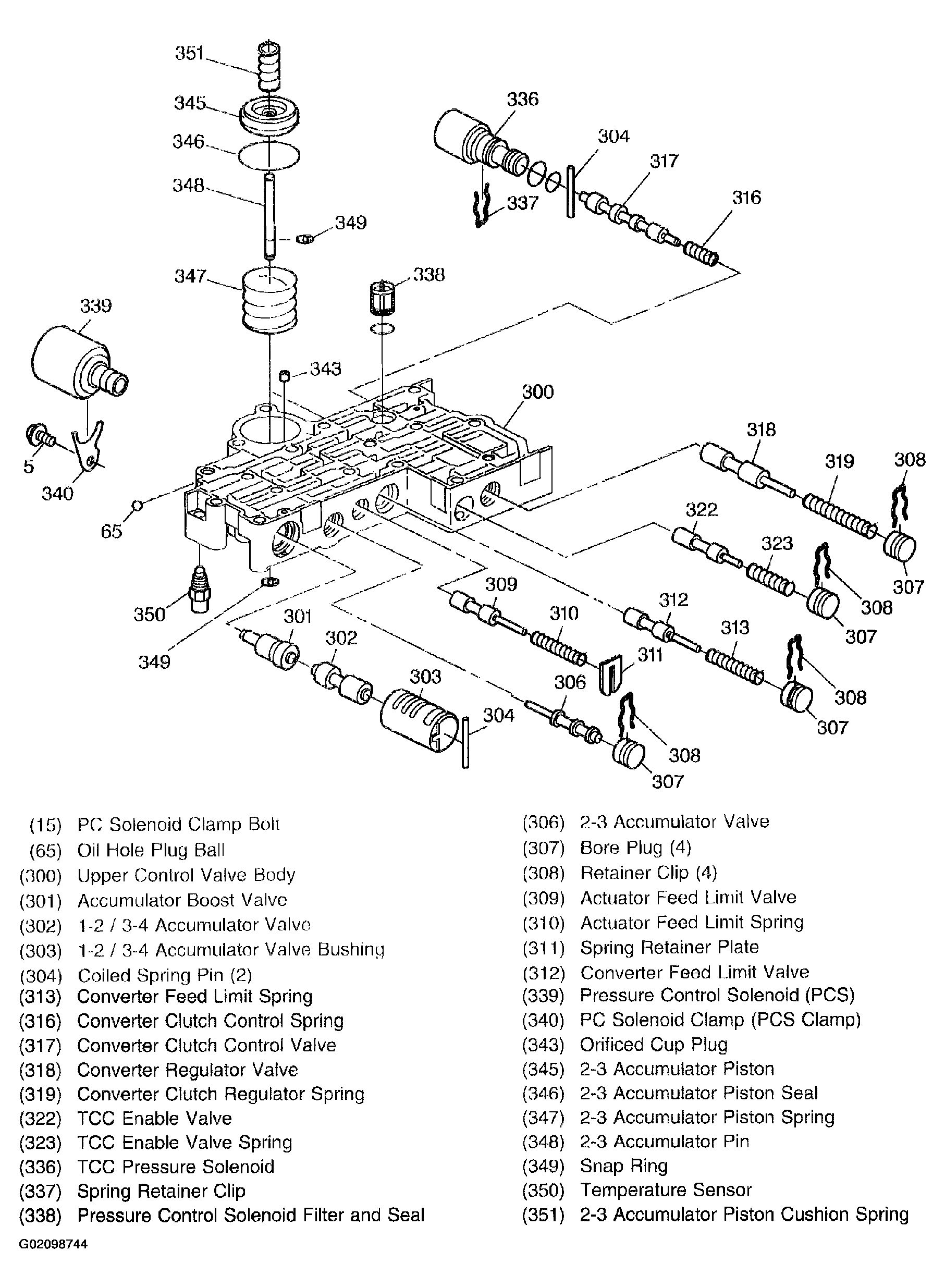

Fig 5: Disassembled Views Upper Control Valve Body Assembly

Courtesy of GENERAL MOTORS CORP.

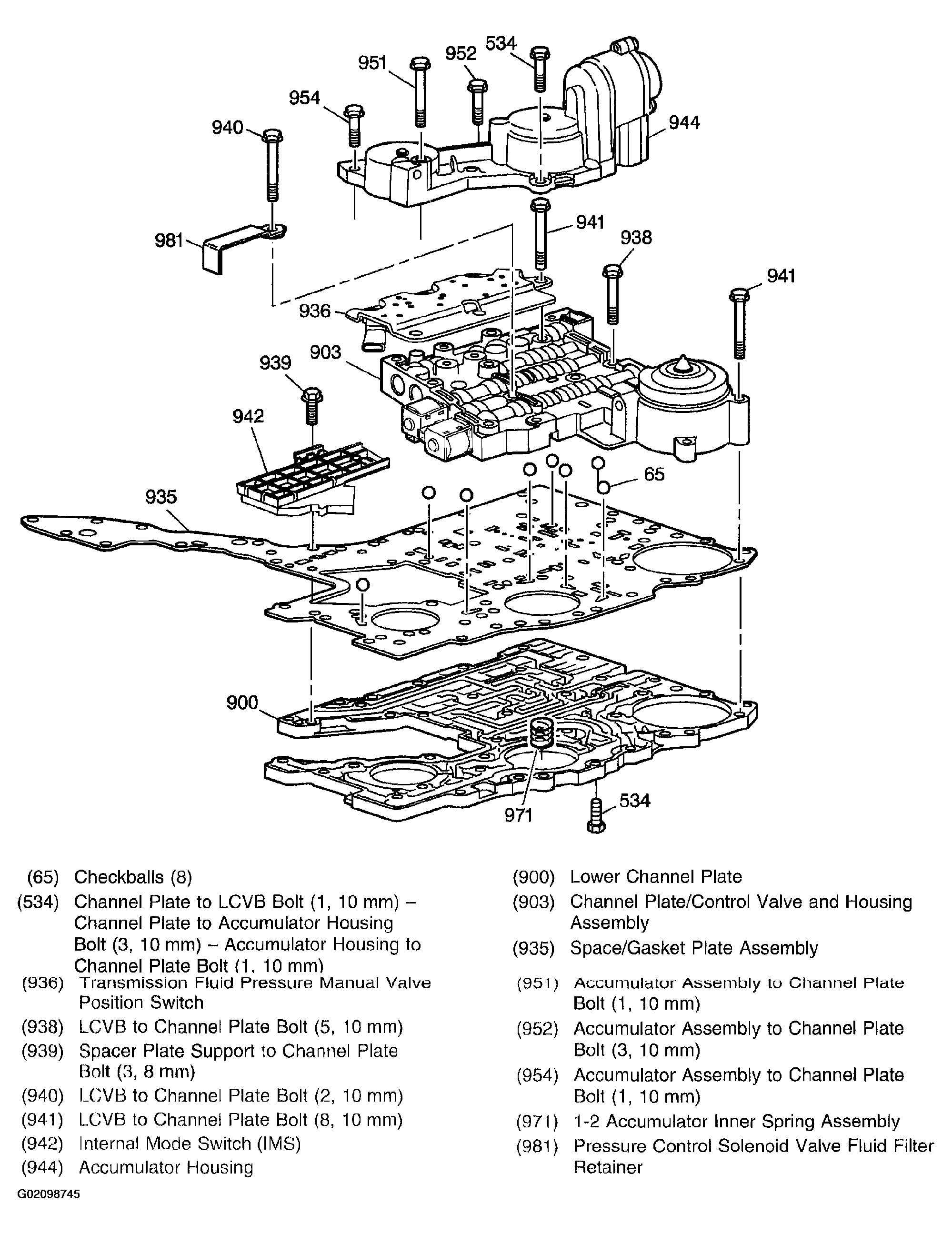

Fig 6: Disassembled Views Lower Channel Plate, Control Valve Body And Accumulator Housing Assembly

Courtesy of GENERAL MOTORS CORP.

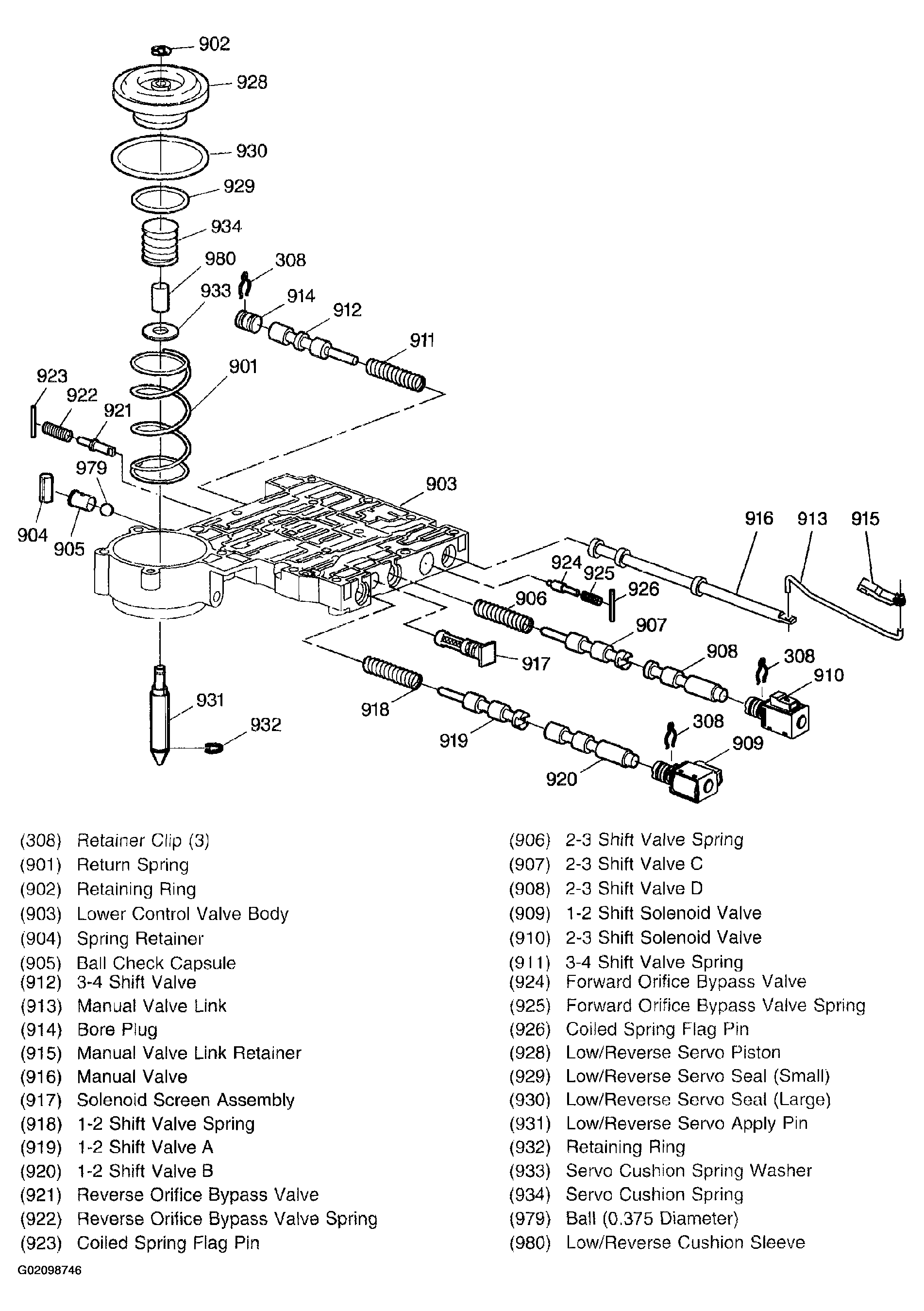

Fig 7: Disassembled Views Lower Control Valve Body Assembly

Courtesy of GENERAL MOTORS CORP.

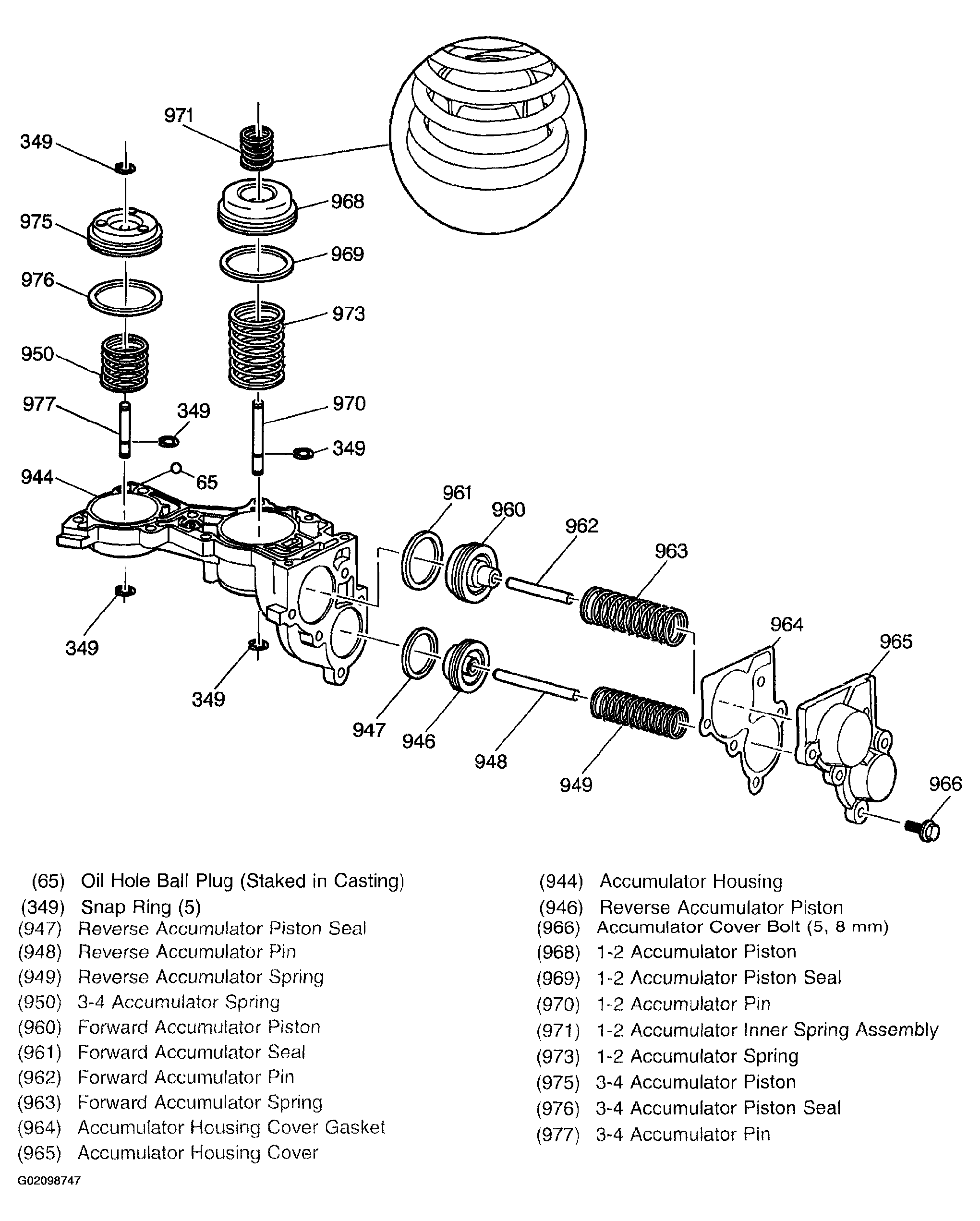

Fig 8: Disassembled Views Accumulator Assembly

Courtesy of GENERAL MOTORS CORP.

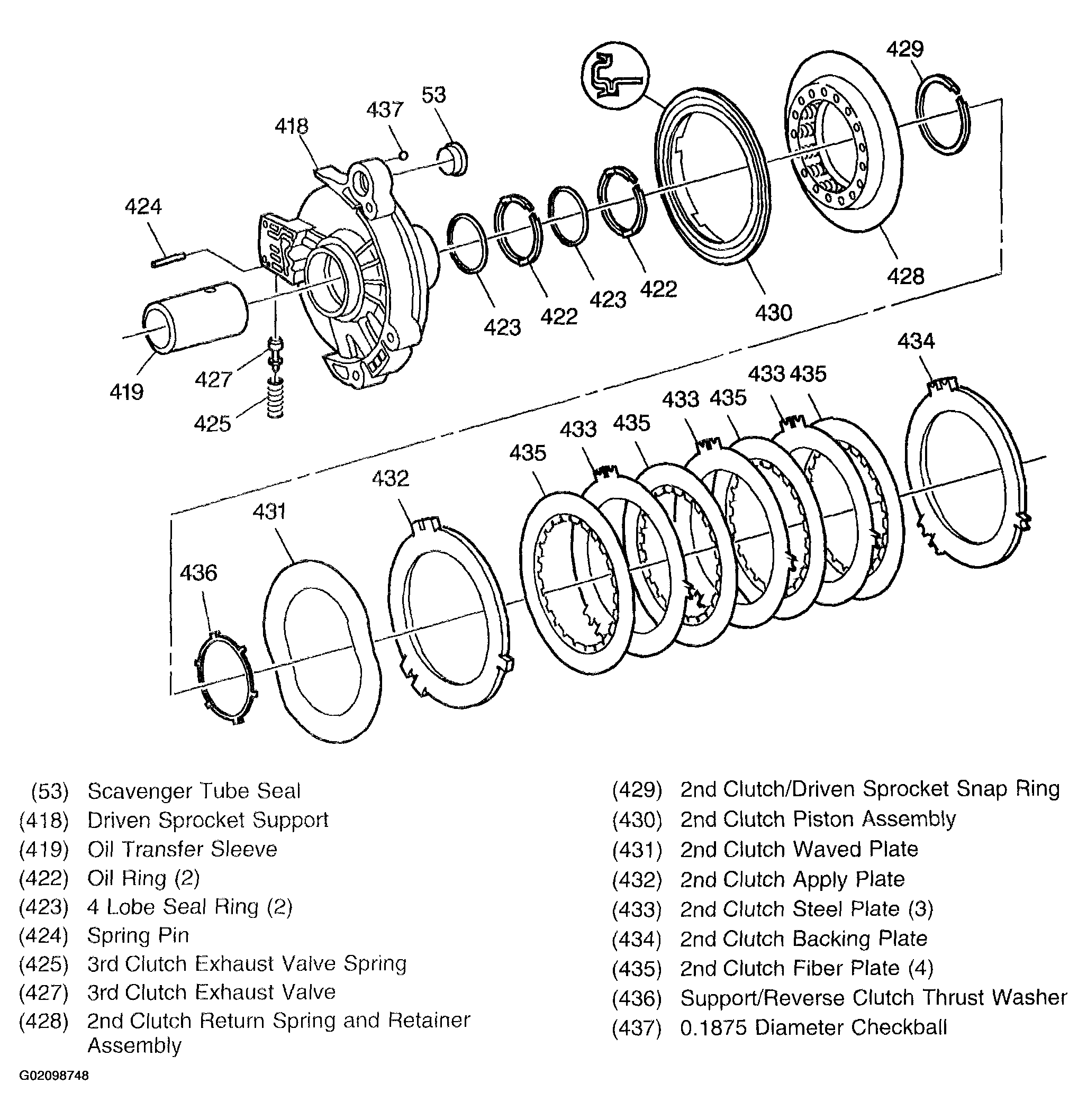

Fig 9: Disassembled Views Driven Sprocket Support And 2nd Clutch Assembly

Courtesy of GENERAL MOTORS CORP.

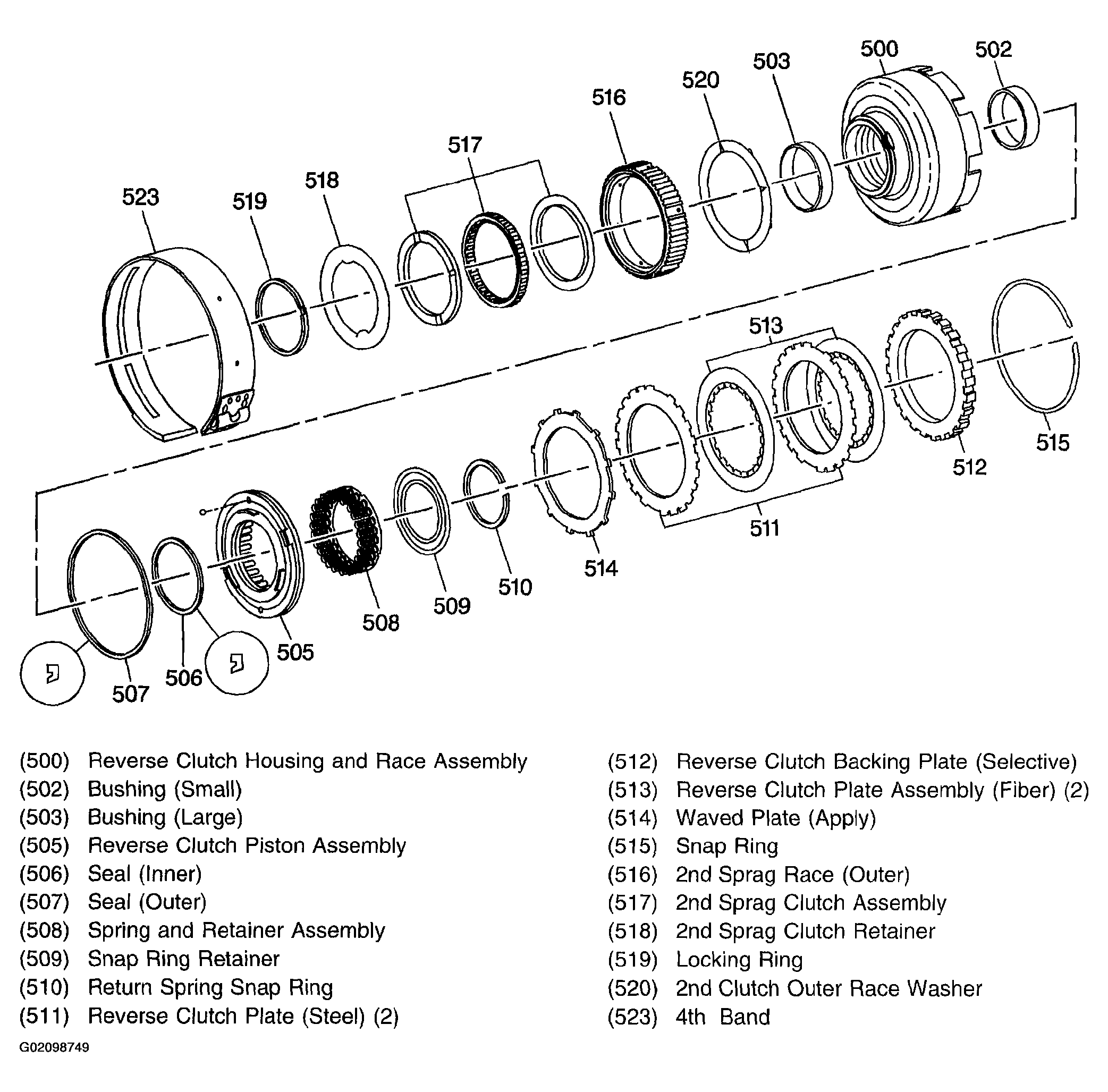

Fig 10: Disassembled Views Reverse Clutch And 2nd Sprag Clutch Assemblies

Courtesy of GENERAL MOTORS CORP.

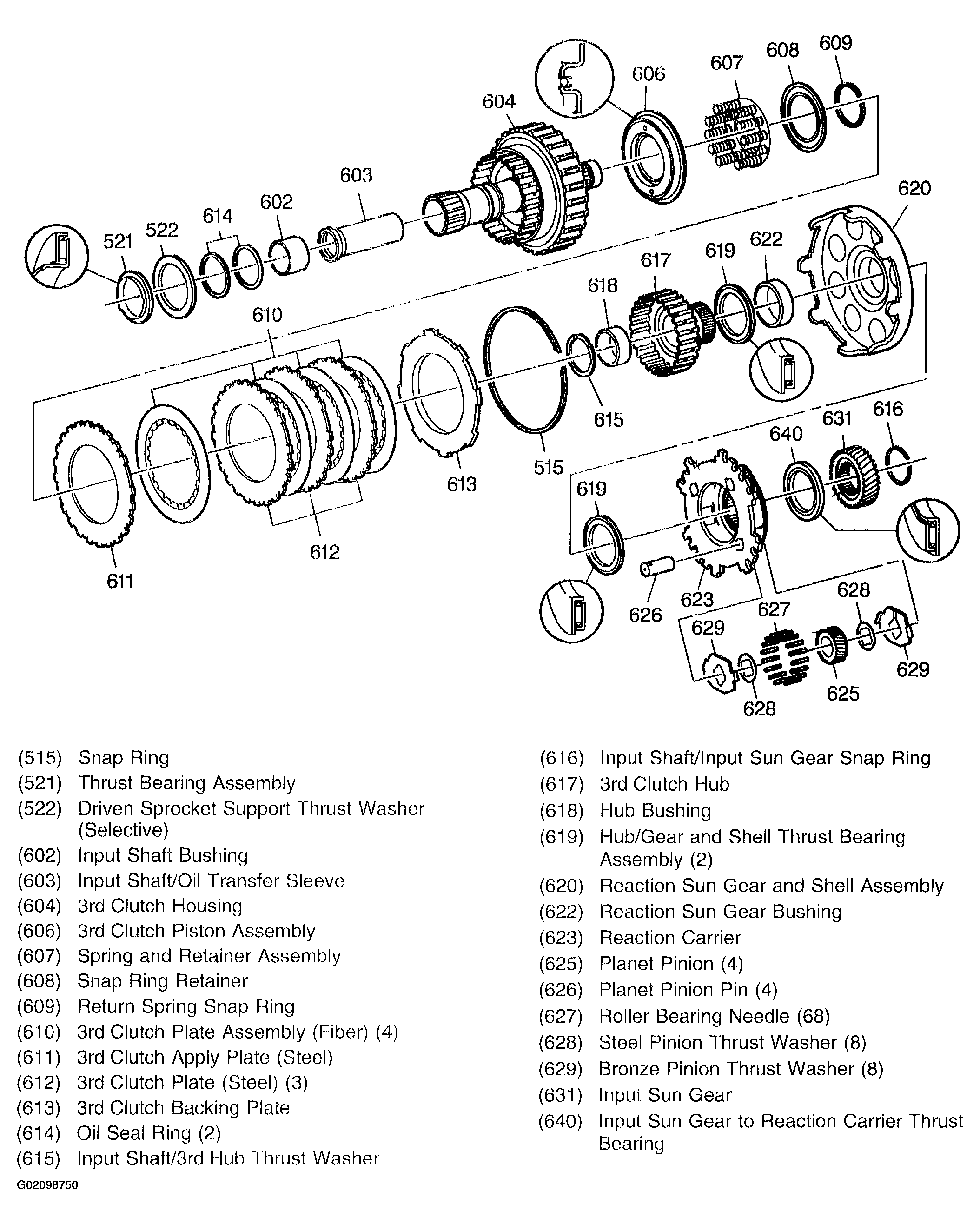

Fig 11: Disassembled Views 3rd Clutch And Reaction Carrier Assembly

Courtesy of GENERAL MOTORS CORP.

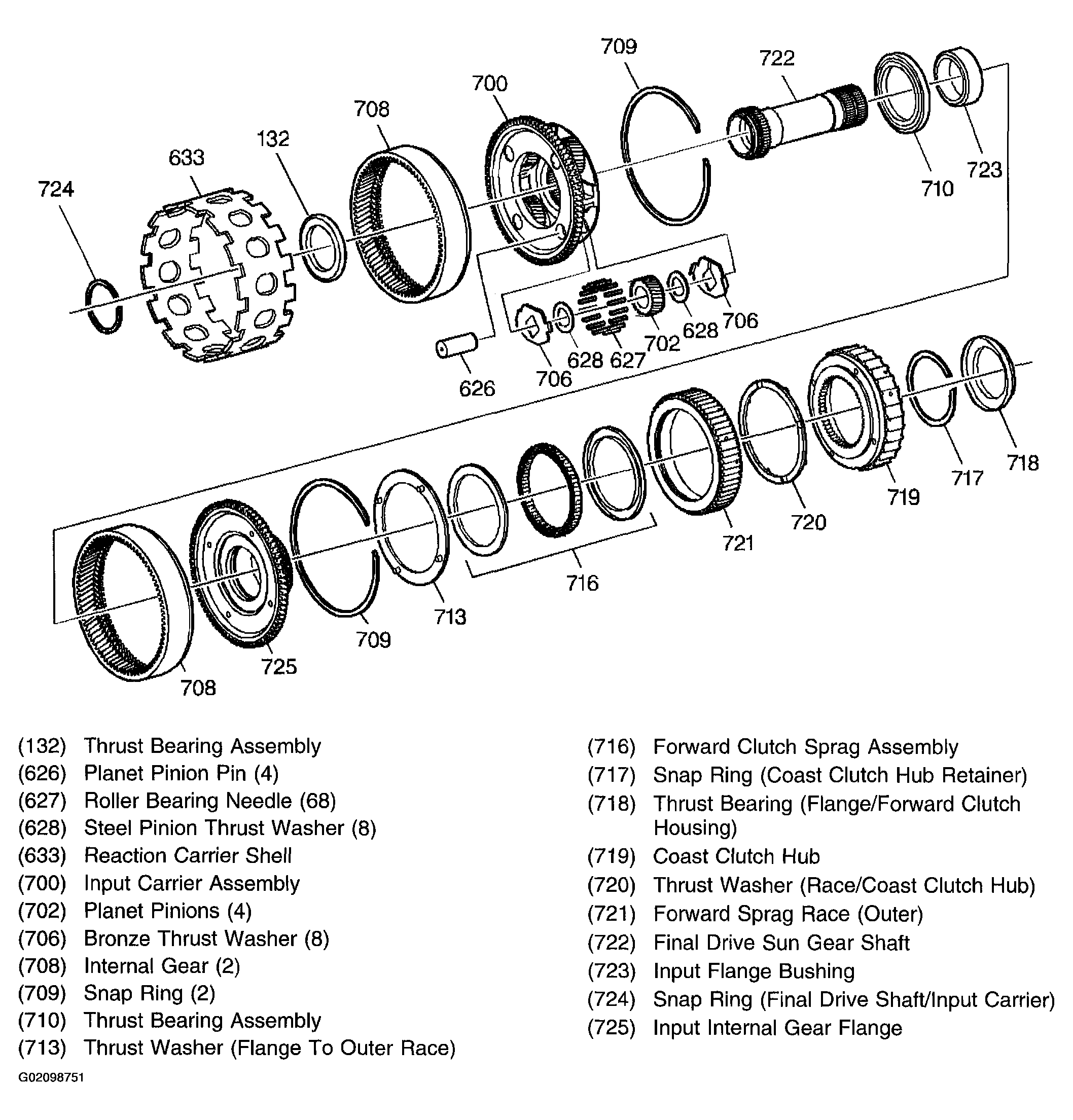

Fig 12: Disassembled Views Input Carrier And Forward Sprag Clutch Assemblies

Courtesy of GENERAL MOTORS CORP.

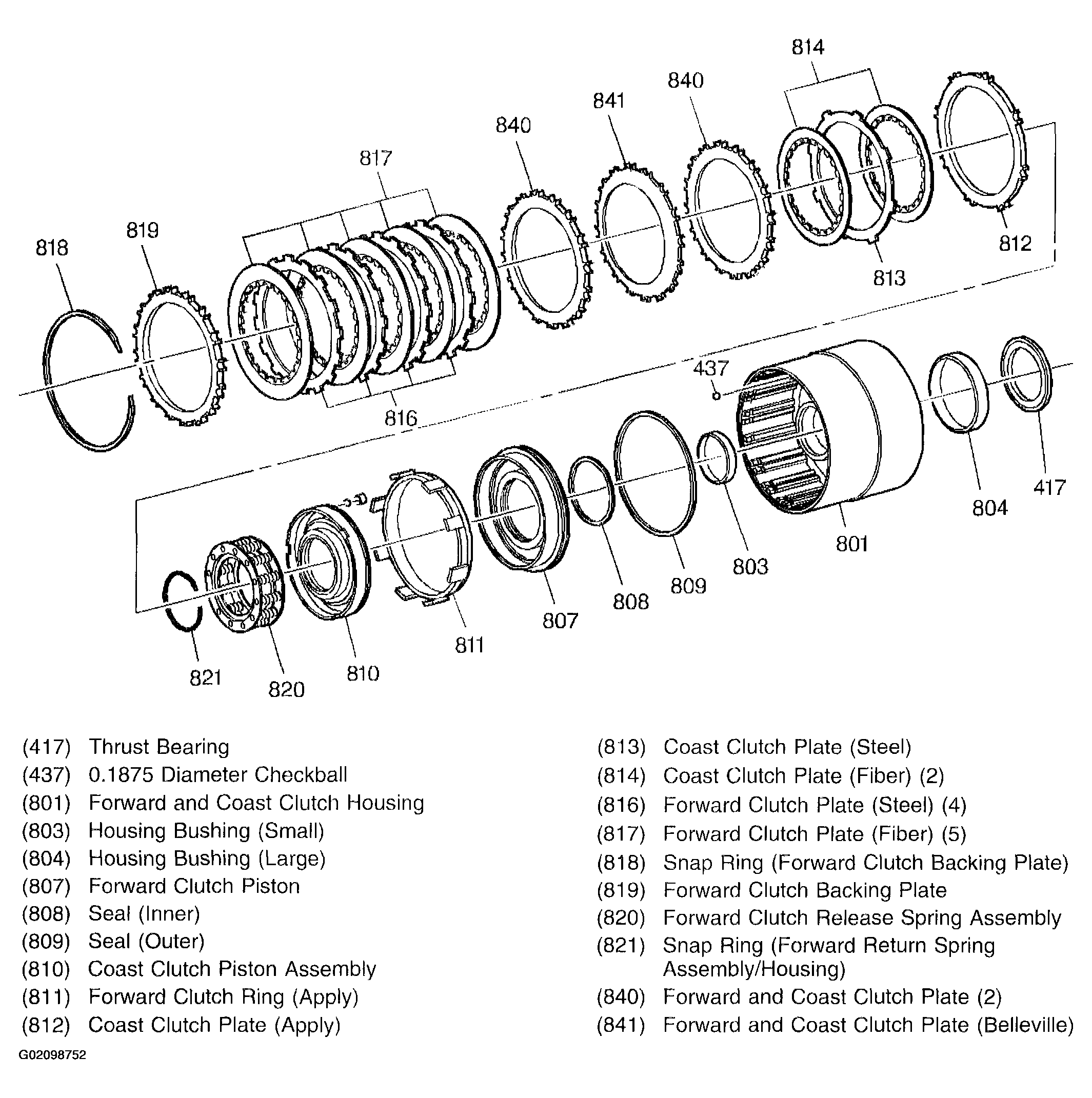

Fig 13: Disassembled Views Forward Clutch Assembly

Courtesy of GENERAL MOTORS CORP.

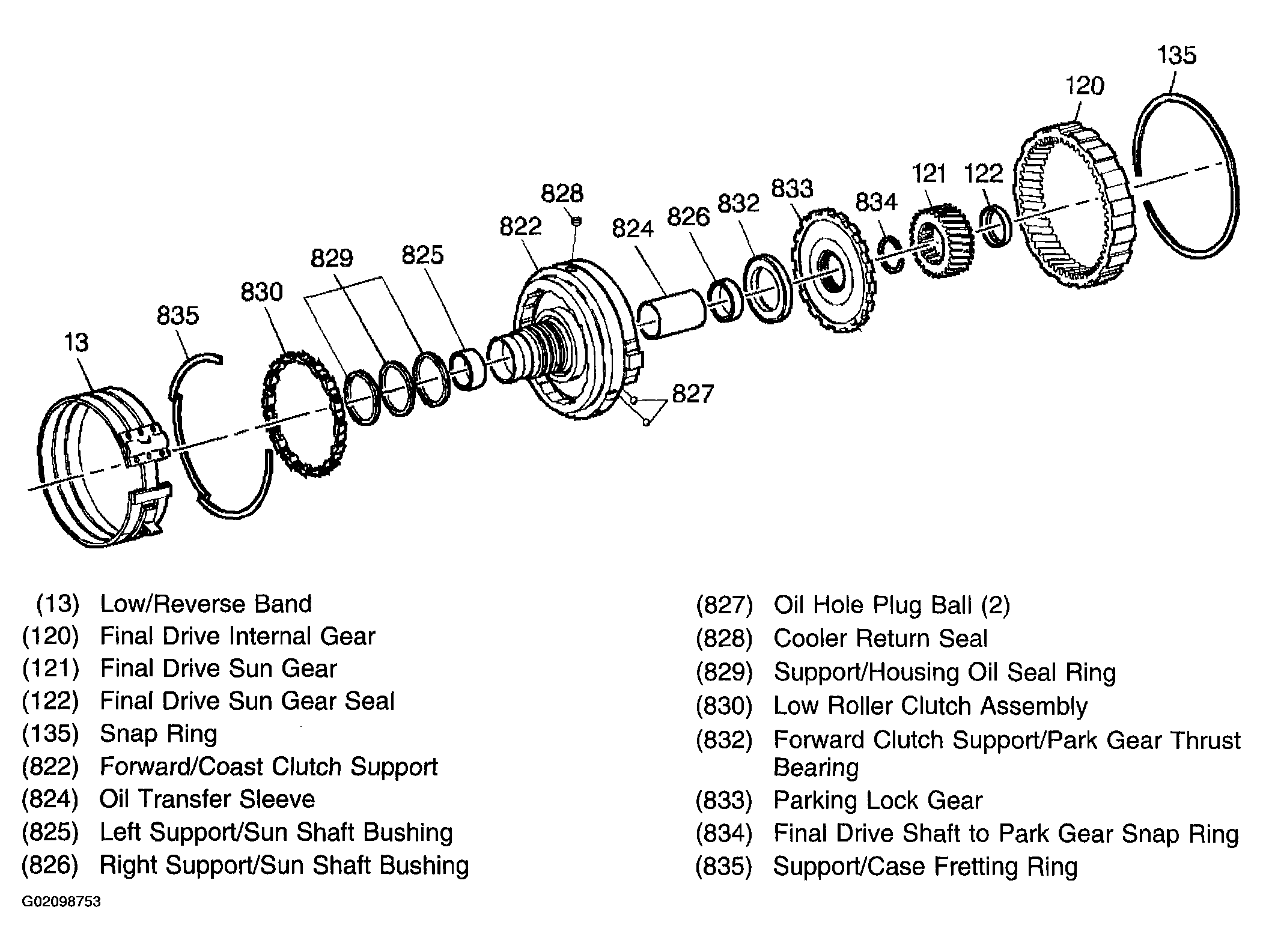

Fig 14: Disassembled Views Forward Clutch Support Assembly

Courtesy of GENERAL MOTORS CORP.

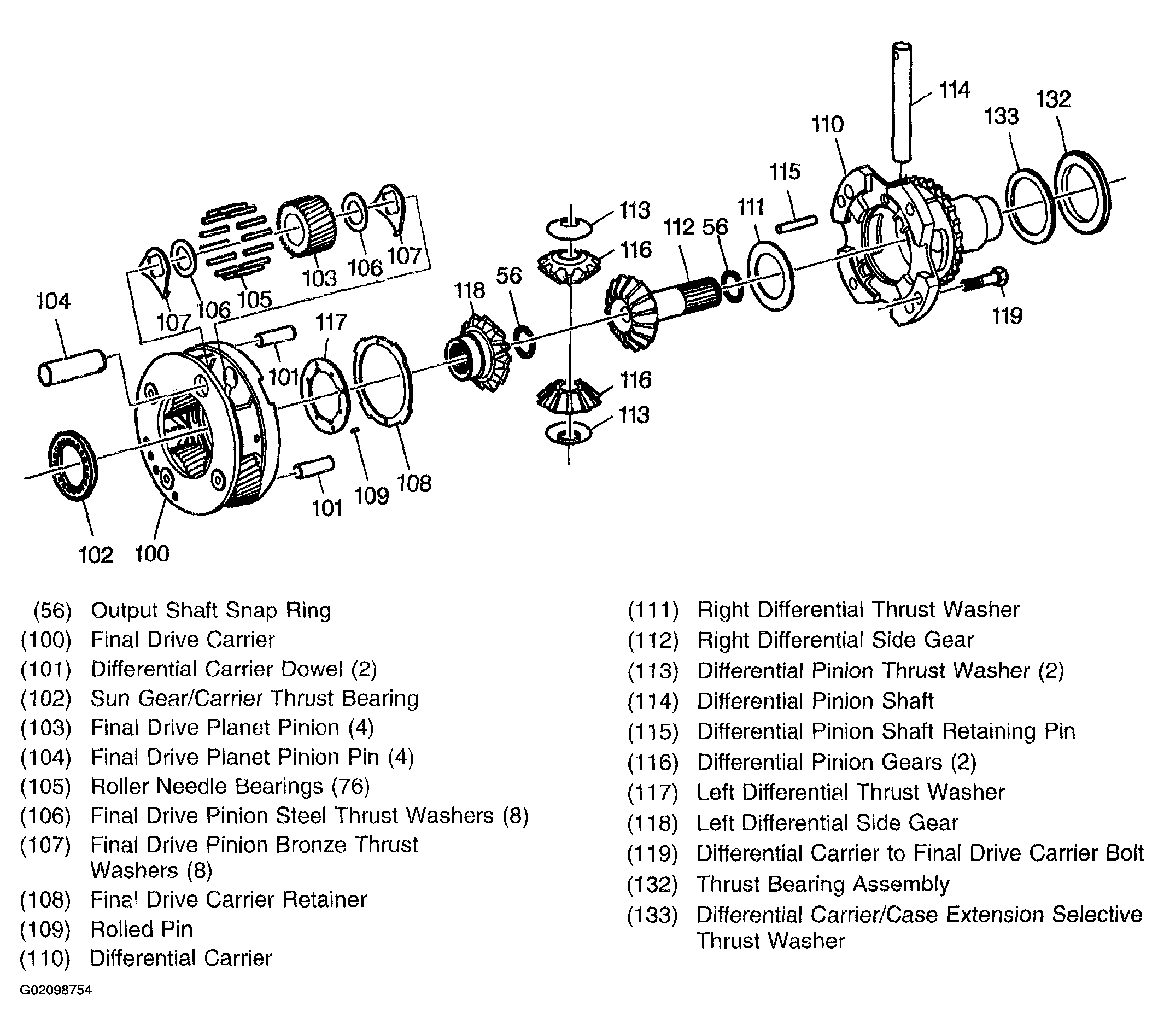

Fig 15: Disassembled Views Final Drive Assembly

Courtesy of GENERAL MOTORS CORP.

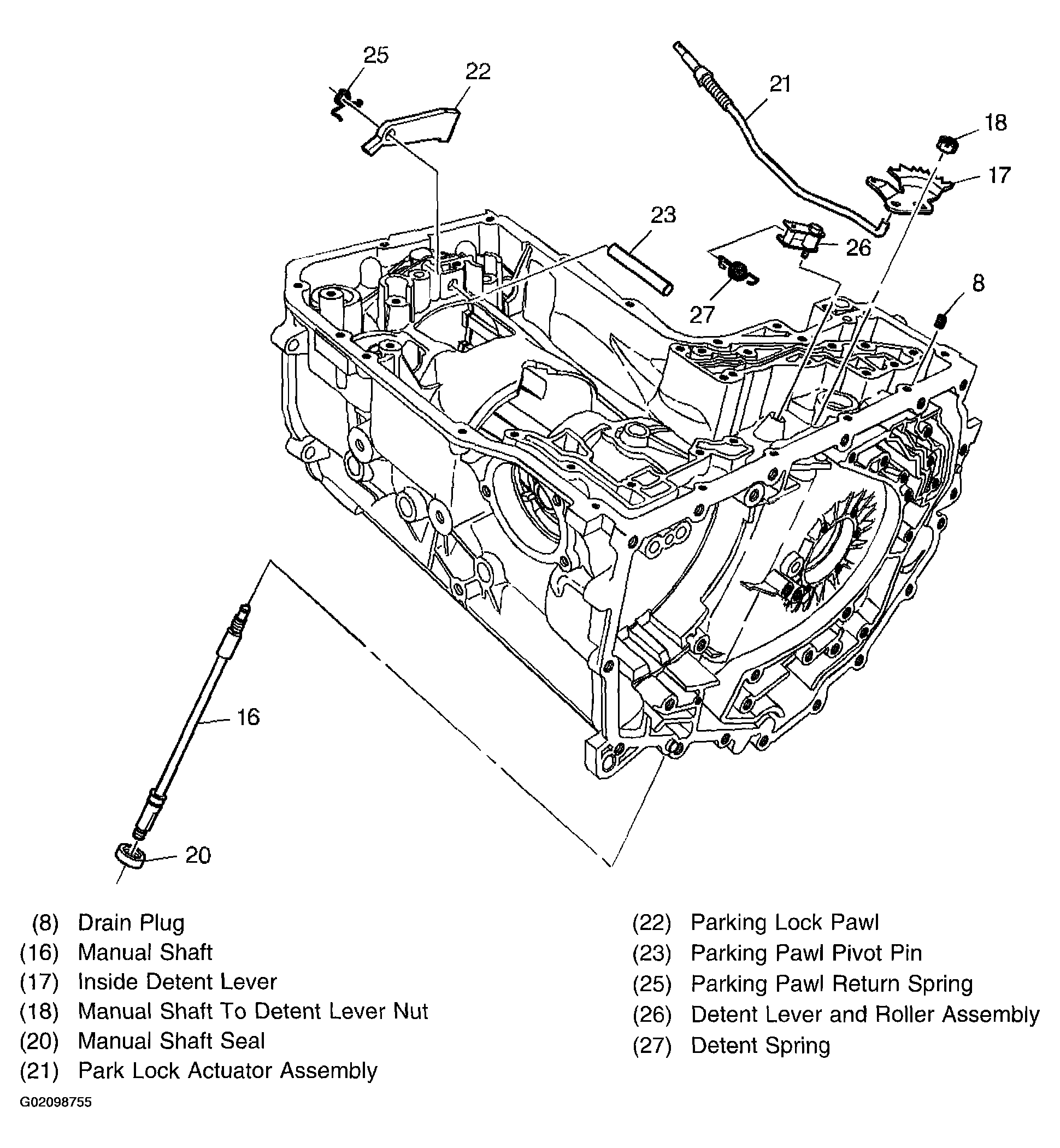

Fig 16: Disassembled Views Parking Pawl, Actuator Assembly And Manual Shaft

Courtesy of GENERAL MOTORS CORP.
