Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connectors (2) from the control module.
  3. Remove the door control module (1) by releasing the retainer tabs (3).

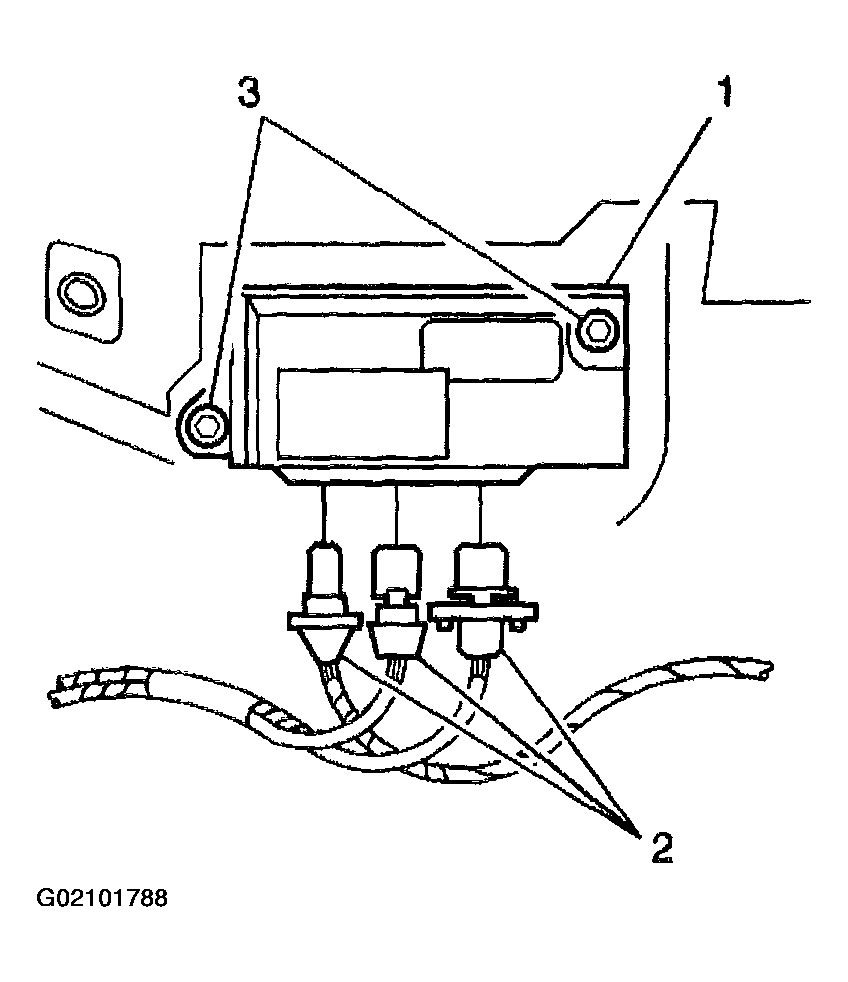

    Fig 1: Disconnecting Electrical Connectors From Control Module
    G02101788Courtesy of GENERAL MOTORS CORP.
