Removal Procedure
- If the vehicle is equipped with a column shift lever the traction control switch is part of the lever and is replaced with the lever. Refer to SHIFT LEVER REPLACEMENT
in Steering Wheel and Column.

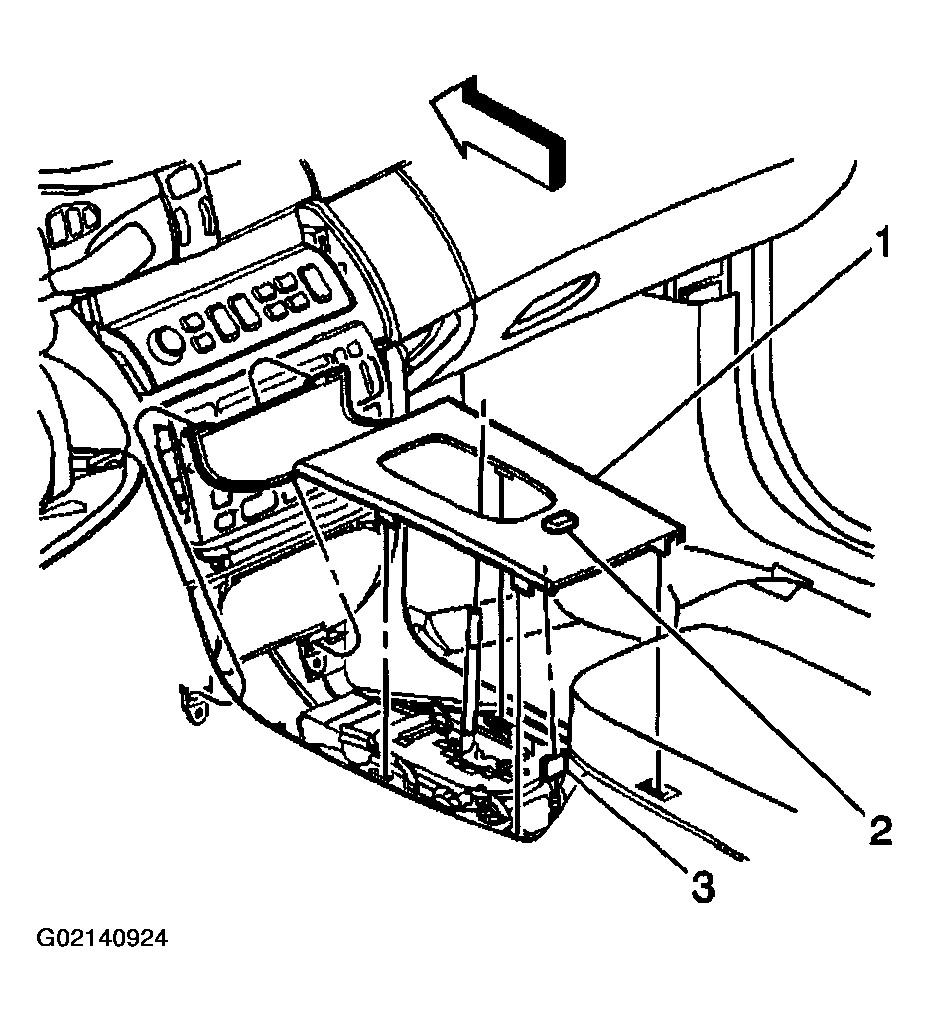

- If equipped with a console shift remove the center console trim plate (1). Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)
in Instrument Panel, Gages and Console.
- Remove the traction control switch electrical connector (3).
- Remove the traction control switch (2).
Courtesy of GENERAL MOTORS CORP.
