Removal Procedure

  1. Remove the seat cushion. Refer to SEAT CUSHION FRAME REPLACEMENT - FRONT  .
  2. Disconnect the upper electrical harness connectors (3).
  3. Remove the module (2) retaining screws (1).
  4. Slide the module to the right to disengage the lower retainers.
    Fig 1: Removing Module Retaining Screws
    G01459197Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the lower electrical harness connectors (2).
  6. Remove the module from the vehicle.

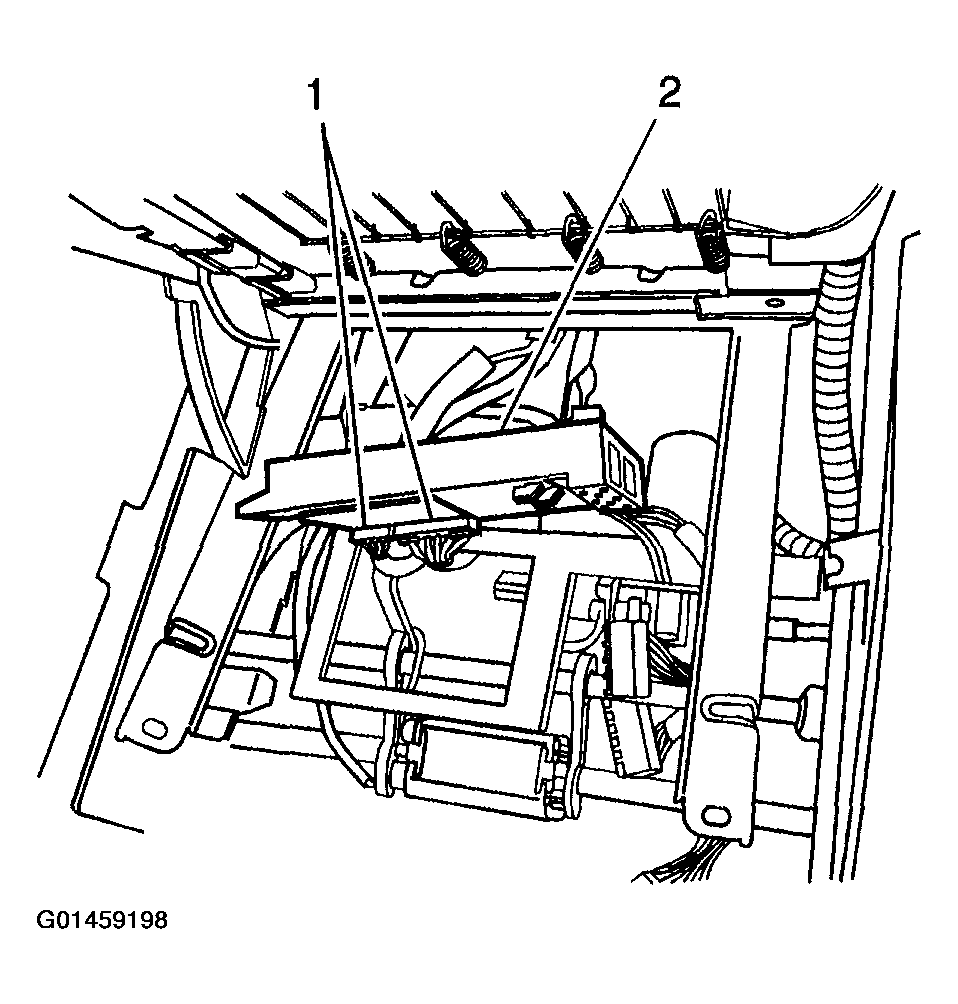

    Fig 2: Disconnecting Lower Electrical Harness Connectors
    G01459198Courtesy of GENERAL MOTORS CORP.
